Pacman Clamp L HDG

For Eurostrut Cable Trays ECT60 and ECT100 and Cable Ladder ECL60. Clamping range HE100 to HE400.

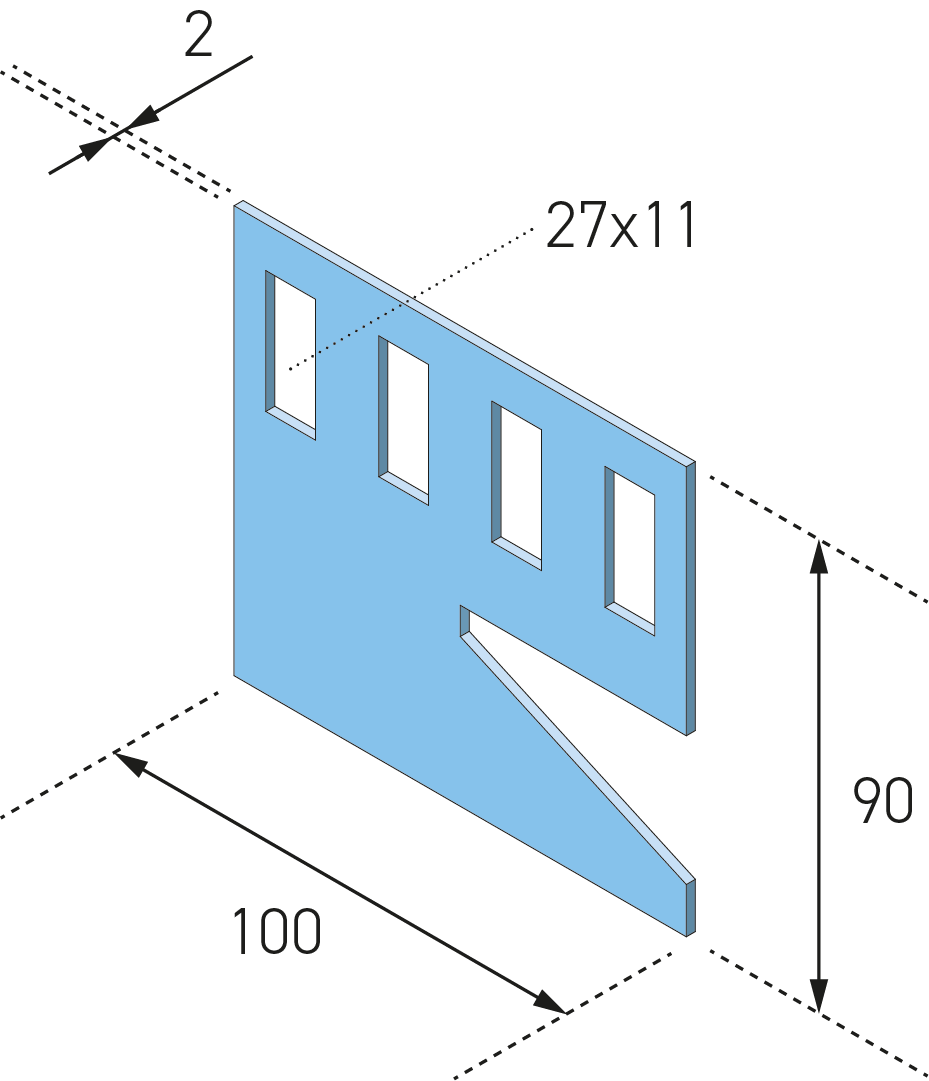

L = 90 mm, W = 100 mm, E (thickness) = 2,0 mm.
Carbon Steel Hot Dip Galvanized according to NEN-EN-ISO 1461, minimum layer thickness 60 µm.

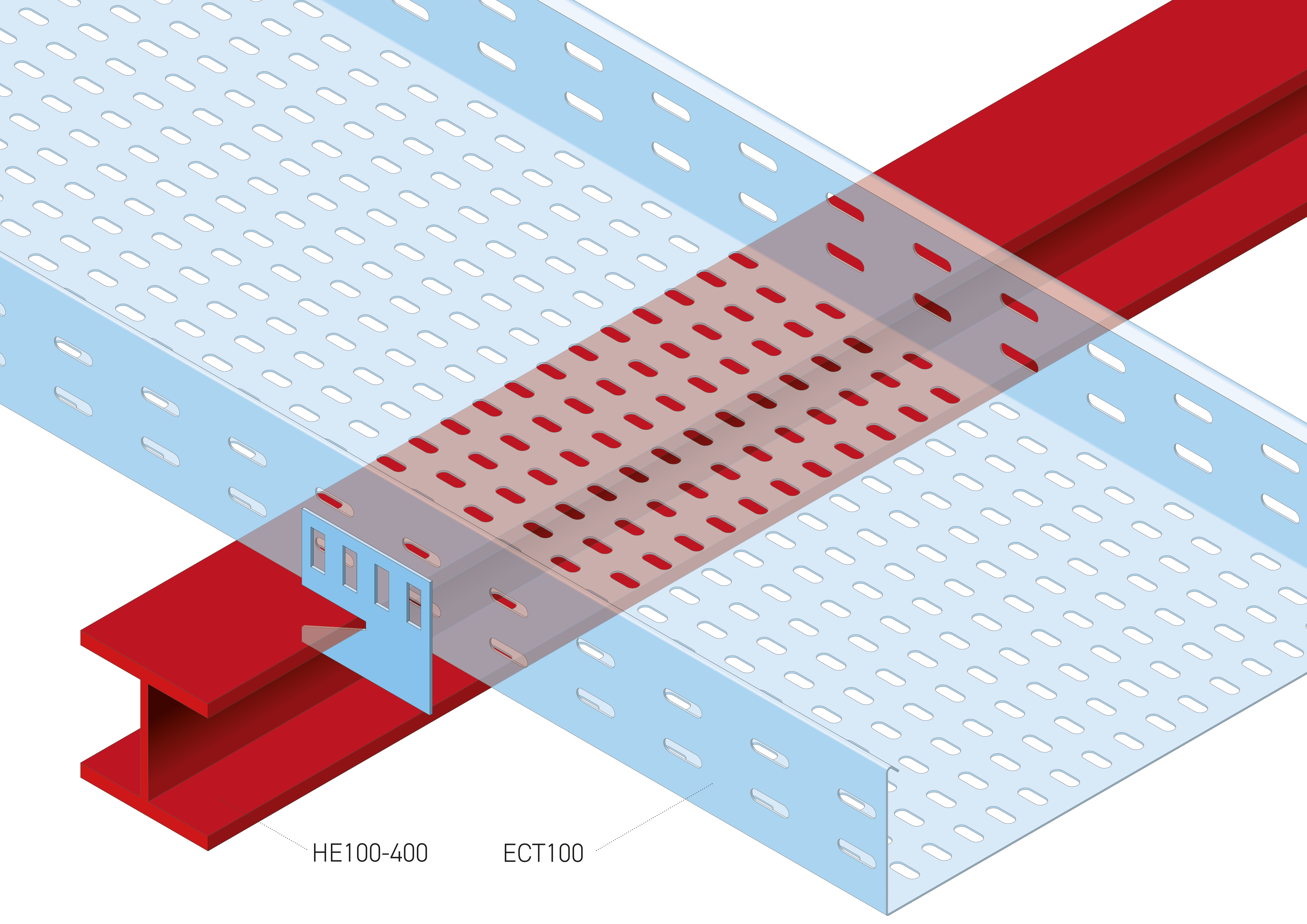

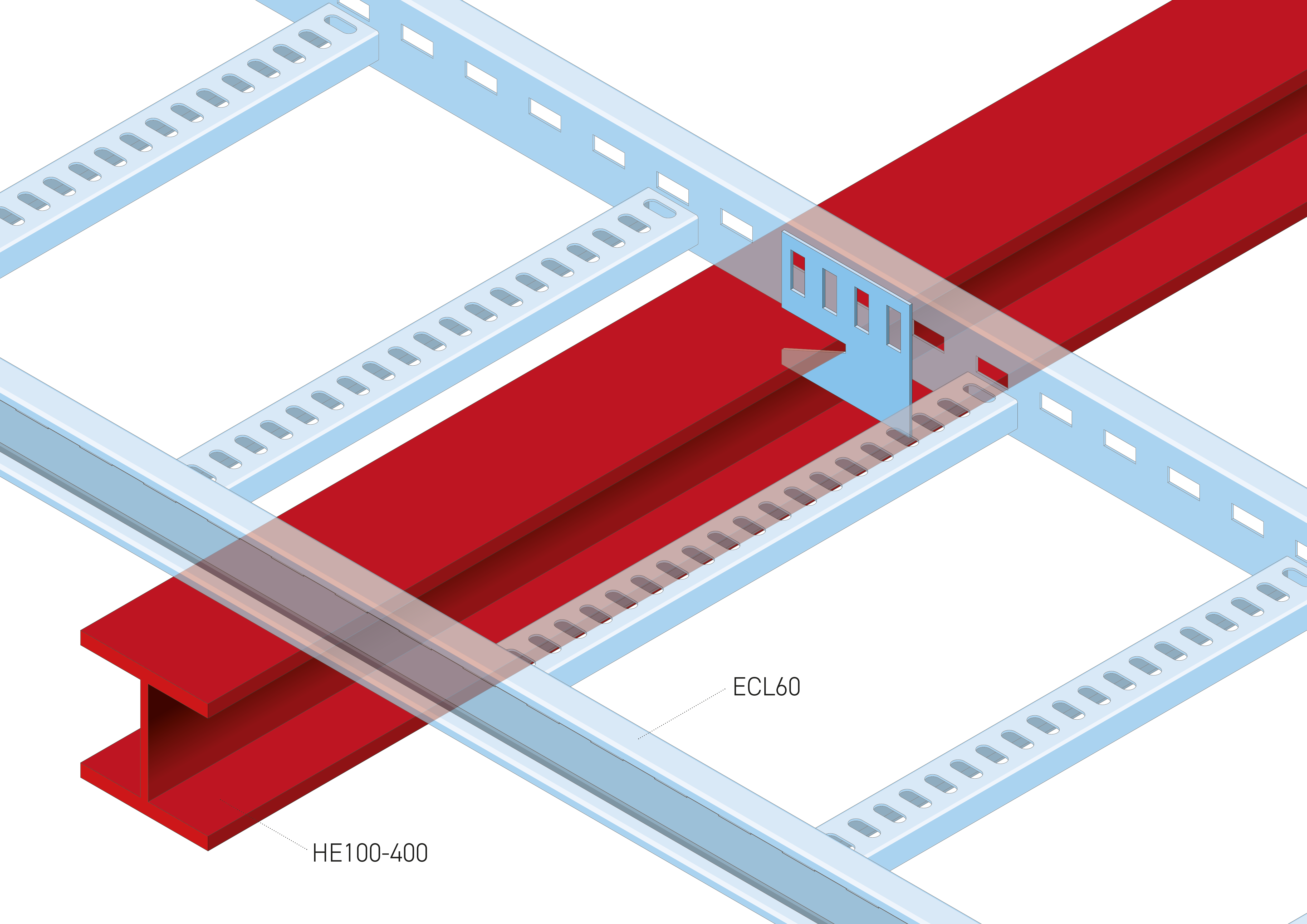

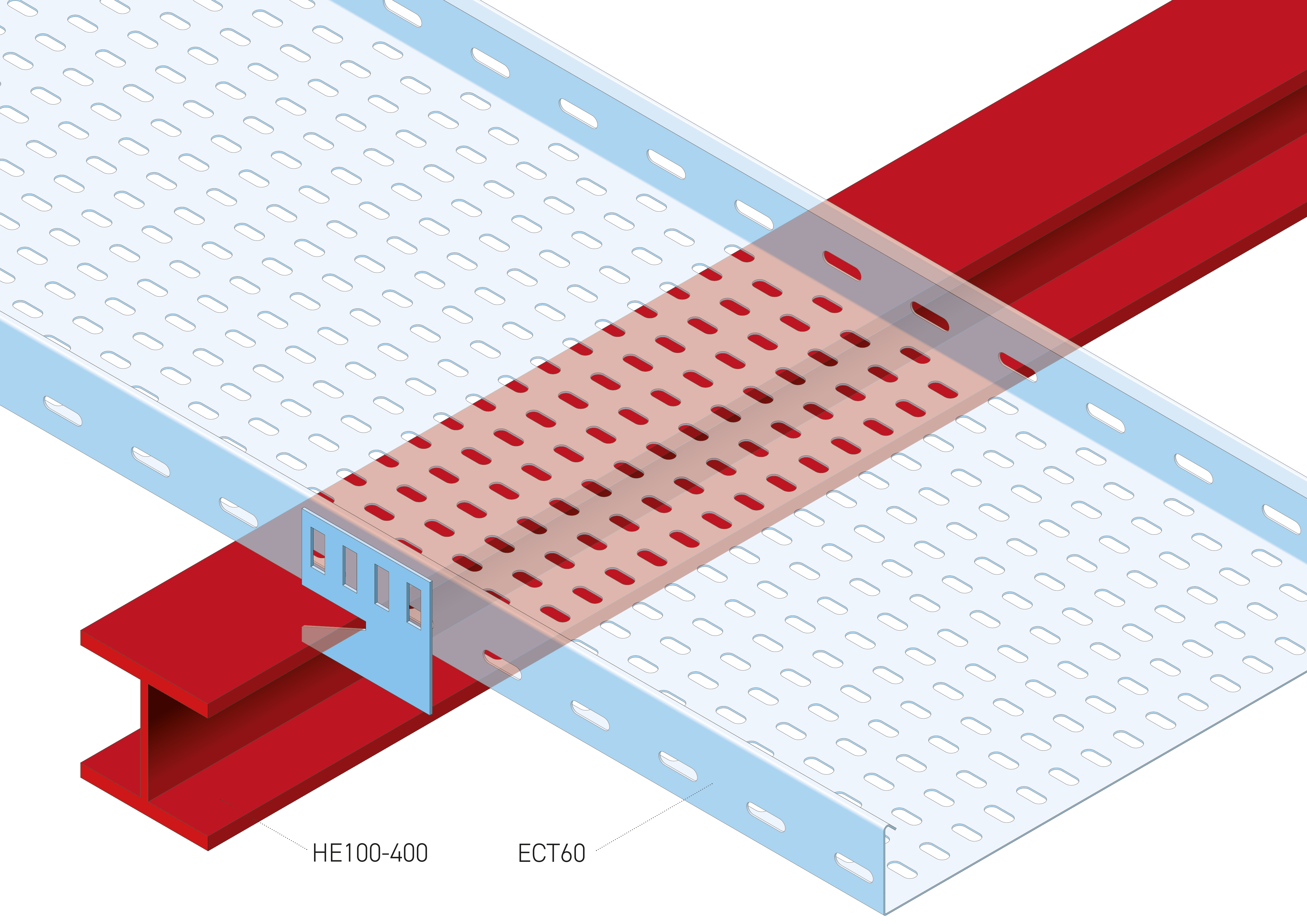

Pacman clamp EPC-L is a mounting accessory for cable support systems and is used to fix cable trays and cable ladders to steel H-beam structures. The clamp enables a drill-free installation and provides a stable and mechanically secure fixation to structural supports. Suitable for ECT60 and ECT100 cable trays and ECL60 cable ladders in industrial and utility installations.

The execution is manufactured from carbon steel and hot dip galvanized according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm. This corrosion protection makes the clamp suitable for use in industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and protects the entire surface, including cut edges, in accordance with IEC 61537 and installations compliant with NEN 1010.

The pacman clamp features a robust construction with a material thickness of 2.0 mm and is suitable for installation on H-beams with a clamping range from HE100 up to and including HE400. The clamp is mounted directly onto the flange of the steel structure and secures itself without additional processing. The execution is fully compatible with Eurostrut cable trays, cable ladders, and associated fixing components.

Technical Specifications

• Product type: Fixing accessory – pacman clamp
• Application: Mounting on H-beams (steel structures)
• Compatibility: ECT60, ECT100 cable trays and ECL60 cable ladders
• Clamping range: HE100 to HE400
• Length (L): 90 mm
• Width (W): 100 mm
• Material thickness (E): 2.0 mm
• Material: Carbon steel
• Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
• Zinc coating thickness: minimum 60 µm
• Standards: IEC 61537, applicable within installations compliant with NEN 1010

Typical Applications

• Fixing cable trays to steel structures
• Mounting cable ladders to H-beams
• Drill-free installation on structural beams
• Heavy industrial and utility installations

Available Variants

• EPC-L: Hot dip galvanized (HDG), suitable for industrial and outdoor environments

Complementary Products

For a complete installation within the Eurostrut system, the following components are relevant:

• Cable trays: ECT60 and ECT100 in various widths
• Cable ladders: ECL60 for heavy-duty cable routes
• Fixing materials: Bolt sets and connectors for installation

These components together ensure a safe, compatible, and maintenance-friendly installation.

Other executions available on request.
