Cable Ladder 900mm HDG

Variations

Product number

ECL150-100-6-HDG

Height

Width

Length

Height:

150 mm

Width:

100 mm

Length:

6000 mm

Product number

ECL150-1000-6-HDG

Height:

150 mm

Width:

1000 mm

Length:

6000 mm

Product number

ECL150-200-6-HDG

Height:

150 mm

Width:

200 mm

Length:

6000 mm

Product number

ECL150-300-6-HDG

Height:

150 mm

Width:

300 mm

Length:

6000 mm

Product number

ECL150-400-6-HDG

Height:

150 mm

Width:

400 mm

Length:

6000 mm

Product number

ECL150-500-6-HDG

Height:

150 mm

Width:

500 mm

Length:

6000 mm

Product number

ECL150-600-6-HDG

Height:

150 mm

Width:

600 mm

Length:

6000 mm

Product number

ECL150-700-6-HDG

Height:

150 mm

Width:

700 mm

Length:

6000 mm

Product number

ECL150-800-6-HDG

Height:

150 mm

Width:

800 mm

Length:

6000 mm

Product number

ECL150-900-6-HDG

Height:

150 mm

Width:

900 mm

Length:

6000 mm

Product number

ECL150-100-6-316

Height

Width

Length

Height:

150 mm

Width:

100 mm

Length:

6000 mm

Product number

ECL150-1000-6-316

Height:

150 mm

Width:

1000 mm

Length:

6000 mm

Product number

ECL150-200-6-316

Height:

150 mm

Width:

200 mm

Length:

6000 mm

Product number

ECL150-300-6-316

Height:

150 mm

Width:

300 mm

Length:

6000 mm

Product number

ECL150-400-6-316

Height:

150 mm

Width:

400 mm

Length:

6000 mm

Product number

ECL150-500-6-316

Height:

150 mm

Width:

500 mm

Length:

6000 mm

Product number

ECL150-600-6-316

Height:

150 mm

Width:

600 mm

Length:

6000 mm

Product number

ECL150-700-6-316

Height:

150 mm

Width:

700 mm

Length:

6000 mm

Product number

ECL150-800-6-316

Height:

150 mm

Width:

800 mm

Length:

6000 mm

Product number

ECL150-900-6-316

Height:

150 mm

Width:

900 mm

Length:

6000 mm

Product number

ECL150-100-6-304

Height

Width

Length

Height:

150 mm

Width:

100 mm

Length:

6000 mm

Product number

ECL150-1000-6-304

Height:

150 mm

Width:

1000 mm

Length:

6000 mm

Product number

ECL150-200-6-304

Height:

150 mm

Width:

200 mm

Length:

6000 mm

Product number

ECL150-300-6-304

Height:

150 mm

Width:

300 mm

Length:

6000 mm

Product number

ECL150-400-6-304

Height:

150 mm

Width:

400 mm

Length:

6000 mm

Product number

ECL150-500-6-304

Height:

150 mm

Width:

500 mm

Length:

6000 mm

Product number

ECL150-600-6-304

Height:

150 mm

Width:

600 mm

Length:

6000 mm

Product number

ECL150-700-6-304

Height:

150 mm

Width:

700 mm

Length:

6000 mm

Product number

ECL150-800-6-304

Height:

150 mm

Width:

800 mm

Length:

6000 mm

Product number

ECL150-900-6-304

Height:

150 mm

Width:

900 mm

Length:

6000 mm

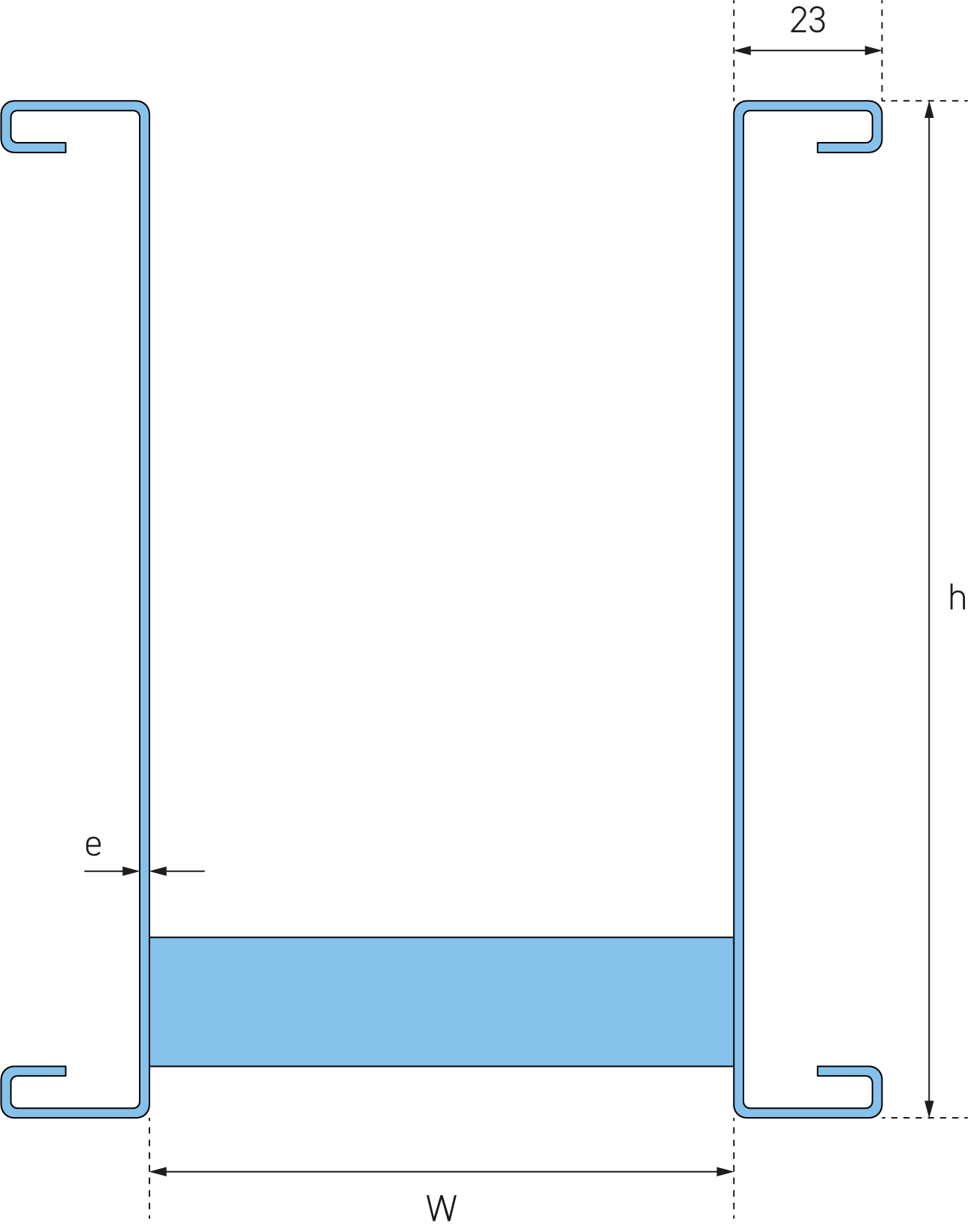

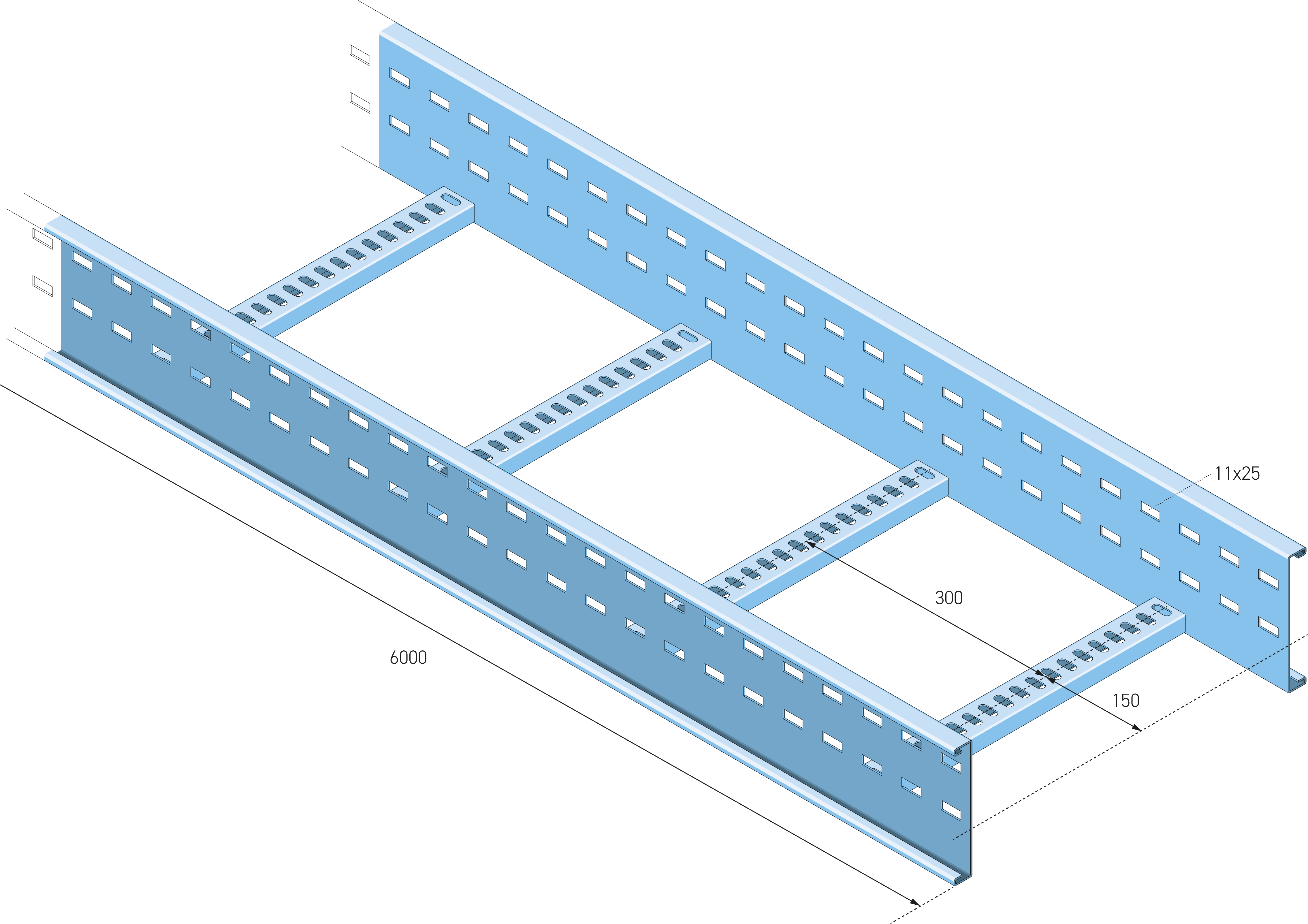

Product information

Type of side joist :	Profile (open)
Side perforation :	Yes
Type of rung :	Perforated profile
Fixation rung :	Welded
Height :	150 mm
Width :	900 mm
Length :	6000 mm
Rung centre spacing :	300 mm
Material :	Steel
Material quality :	St 37.2 (1.0037)
Surface protection :	Hot-dip galvanised
Colour :	Zinc
Weight :	9.66 kg/m

H=150mm, W=900mm, L=6000mm, T=2,0mm, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm. Produced on request. Delivery time 5-6 weeks.

Properties

Manufactured in accordance with BS EN 61537/IEC 61537.
Standard surface finish of the cable ladder is hot dip galvanized (HDG) according to EN-ISO 1461.
All rungs are welded to the side wall of the cable ladder.
Accessories must be supported on all sides.
Standard length 6 meters.

Variations

On request also available in stainless steel 304 or 316L.
Length 3 meters available on request.
Other widths available on request.
