Coupler Cable Tray ECT100 100 SS316
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Model : | Longitudinal joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | No |
| Type of connection : | Screw connector |
| Suitable for wire mesh tray : | No |
| Suitable for cable ladder : | No |
| Suitable for cable tray : | Yes |
| Suitable for cable support system width : | 100 - 600 mm |
| Suitable for cable support system height : | 100 - 100 mm |

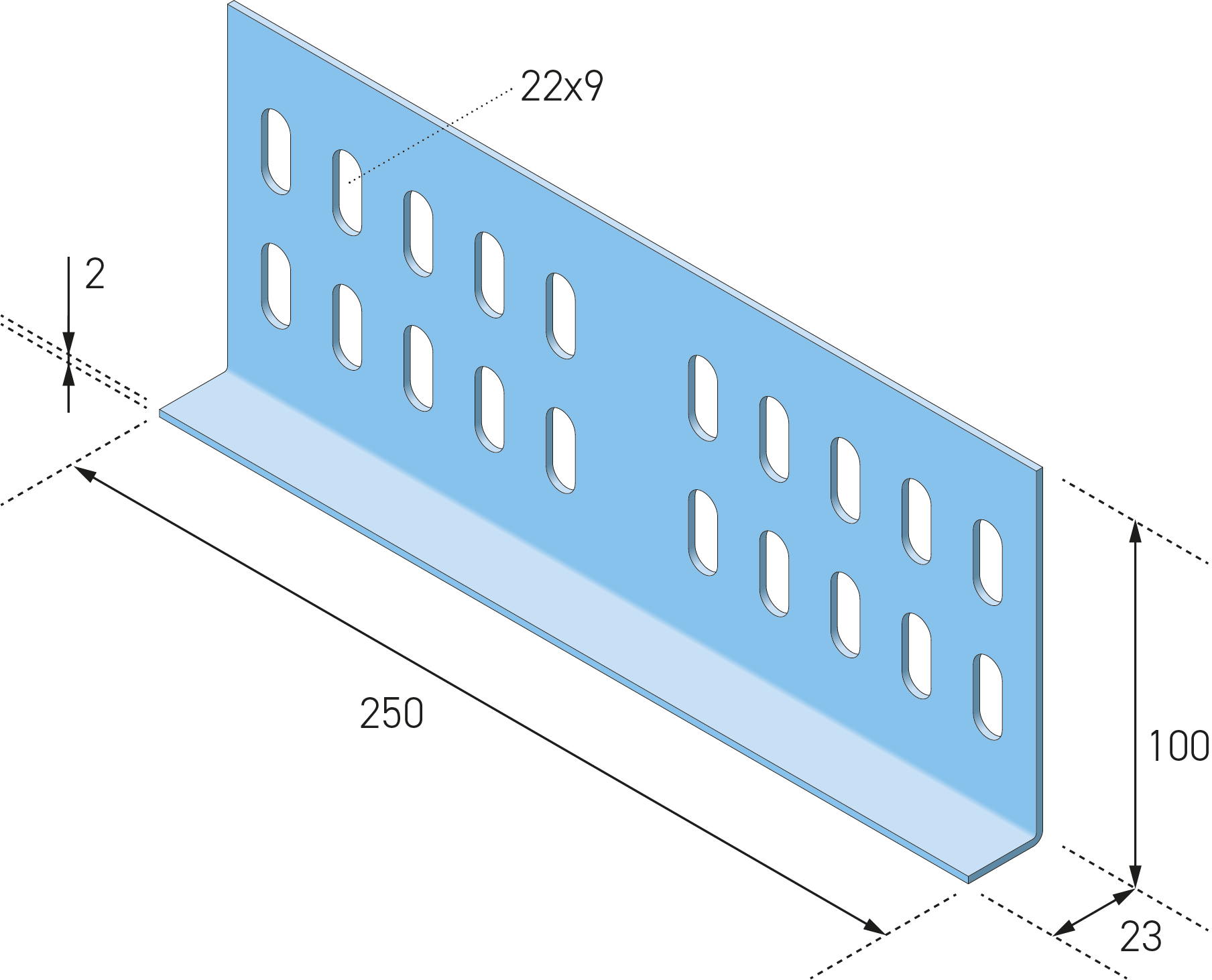

| Length : | 250 mm |
| Material : | Stainless steel |
| Material quality : | Rustproof and acidproof steel |
| Colour : | Stainless steel |

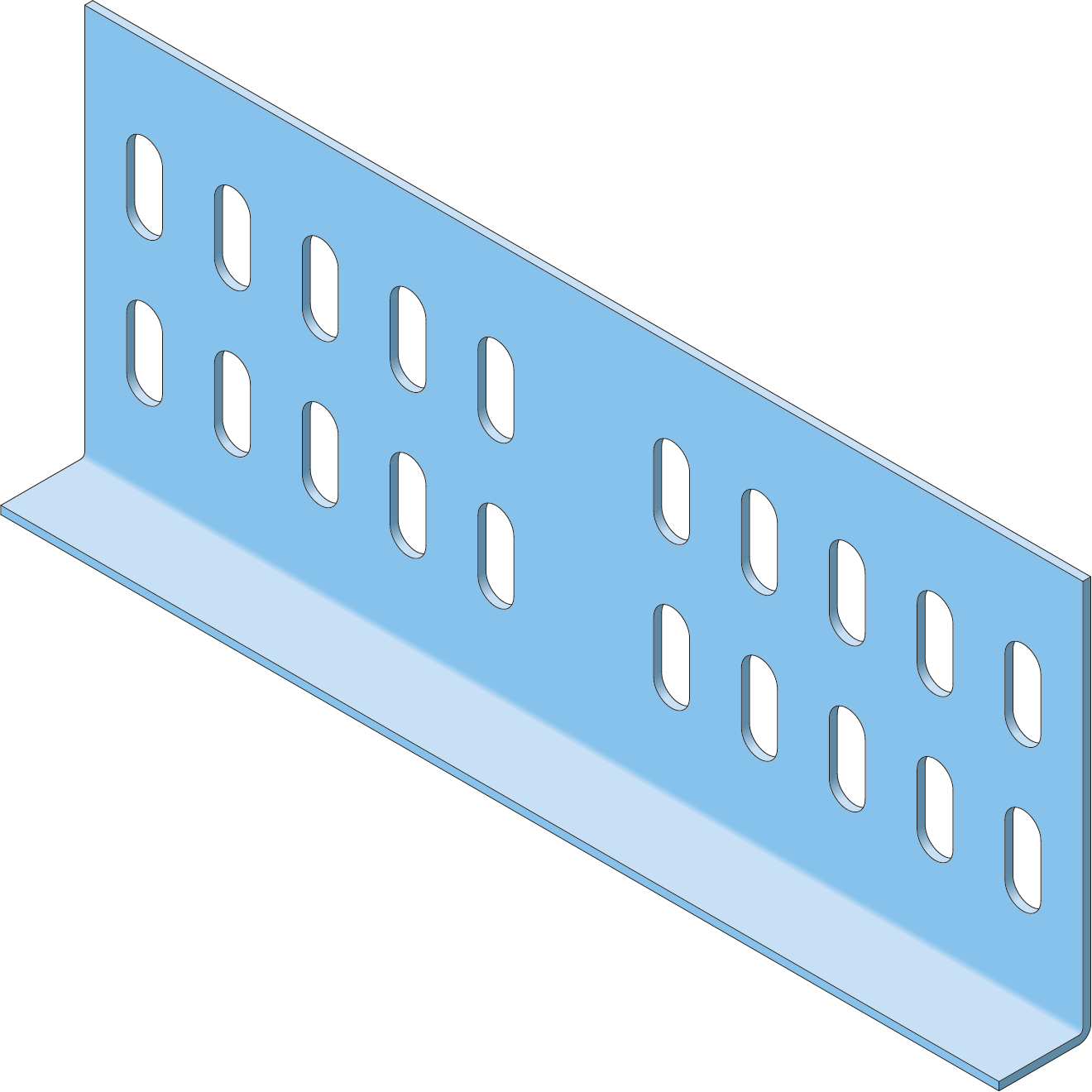

Coupler Plate for Cable Tray ECT100 with sizes H = 100 mm, E (thickness) = 2,0 mm, Stainless Steel 316, with 16x EFS08-15x316 Eurostrut Fixingset (bolt M08x15, nut and washer).
Coupling plate ECTCP100 is an accessory for the ECT100 cable tray system and is used to mechanically connect two straight cable trays in the longitudinal direction. The coupling plate provides a rigid, aligned, and continuous connection, ensuring the structural integrity of the cable tray route. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with an increased zinc coating thickness of at least 80 µm. This heavy-duty corrosion protection makes the coupling plate suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full surface protection, including cut edges and fixing holes, in accordance with IEC 61537 and installations compliant with NEN 1010.

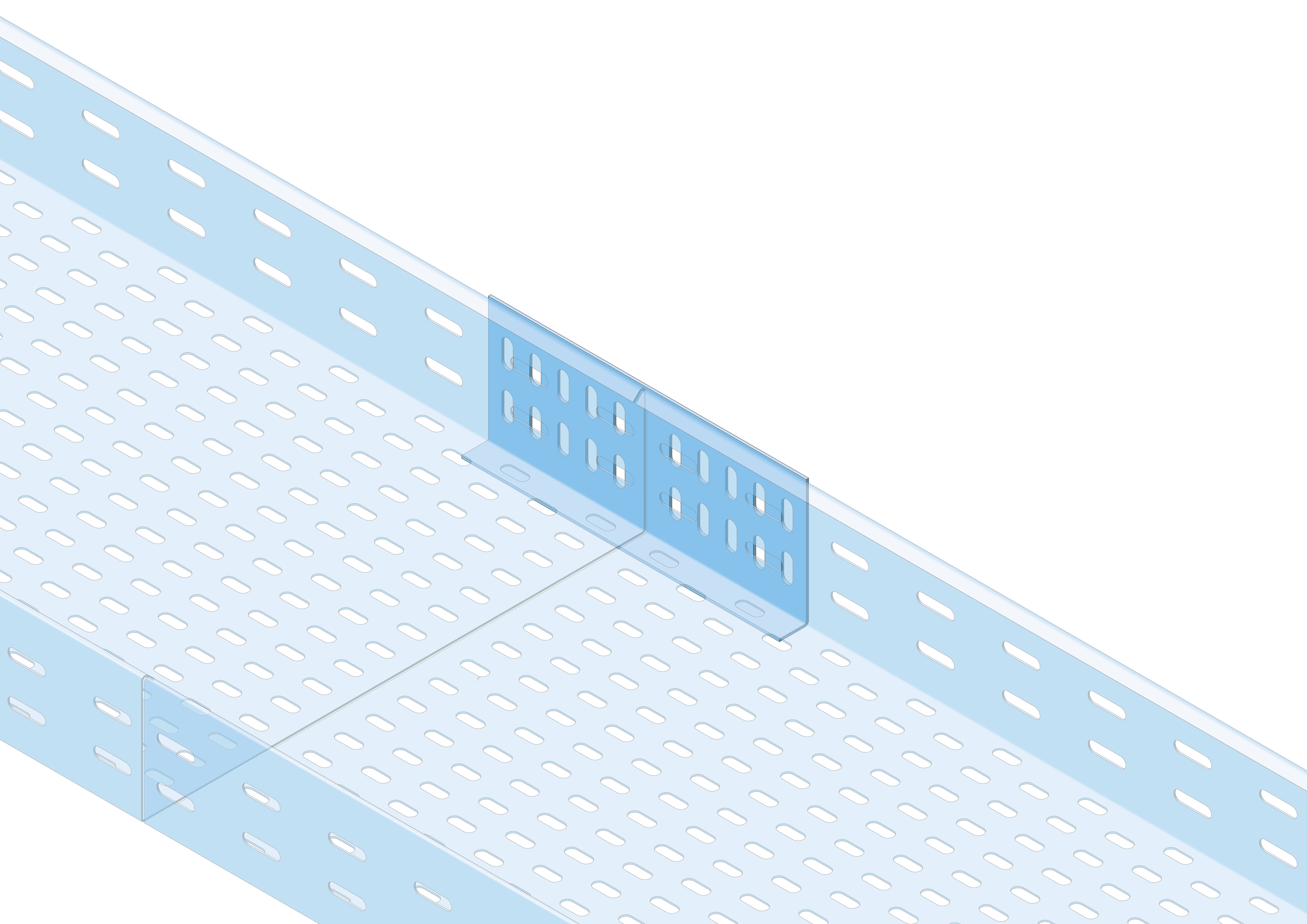

The coupling plate is designed for direct installation between two ECT100 cable trays. The execution is provided with fixing holes and is supplied including fixing material, enabling fast and reliable installation. The accessory is fully compatible with all ECT100 cable trays and contributes to a safe and maintenance-friendly cable tray construction.
Technical Specifications
- Product type: Accessory – coupling plate for cable tray
- System: ECT100
- Application: Longitudinal coupling of cable trays
- Execution: Coupling plate
- Execution: Including 8x EFS08x15-GEO Eurostrut fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 80 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Connecting straight ECT100 cable trays in longitudinal direction
- Heavy industrial cable tray installations
- Outdoor installations and harsh industrial environments
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of at least 80 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT100 system, the following components are relevant:
- Straight cable trays: ECT100 cable trays in various widths
- Bends and accessories: T-pieces, cross pieces, inside risers, and outside risers for ECT100 systems
- Closures: End plates and dividers for ECT100 cable trays
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other executions available on request.
ECT100_Cable Tray 100mm_Overview
