Vertical Coupler Plate Cable Tray ECT100 100 SS304
Product number:
ECTVCP100-SS304
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
For ladder height
Material quality
For tray width
For ladder height:
100 - 100 mm
Material quality:
Hot dip galvanized
For tray width:
100 - 600 mm
Product number
For ladder height
Material quality
For tray width
For ladder height:
100 - 100 mm
Material quality:
Stainless Steel 316
For tray width:
100 - 600 mm
Product number
For ladder height
Material quality
For tray width
For ladder height:
100 - 100 mm
Material quality:
Stainless Steel 304
For tray width:
100 - 600 mm
Product number
For ladder height
Material quality
For tray width
For ladder height:
100 - 100 mm
Material quality:
Pre galvanized
For tray width:
100 - 600 mm
Product information
| Model : | Length- and angle joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | Yes |
| Type of connection : | Screw connector |
| Suitable for wire mesh tray : | No |
| Suitable for cable ladder : | No |
| Suitable for cable tray : | Yes |
| Suitable for cable support system width : | 100 - 600 mm |
| Suitable for cable support system height : | 100 - 100 mm |
| Length : | 310 mm |
| Material : | Stainless steel |
| Material quality : | Rustproof and acidproof steel |
| Colour : | Stainless steel |

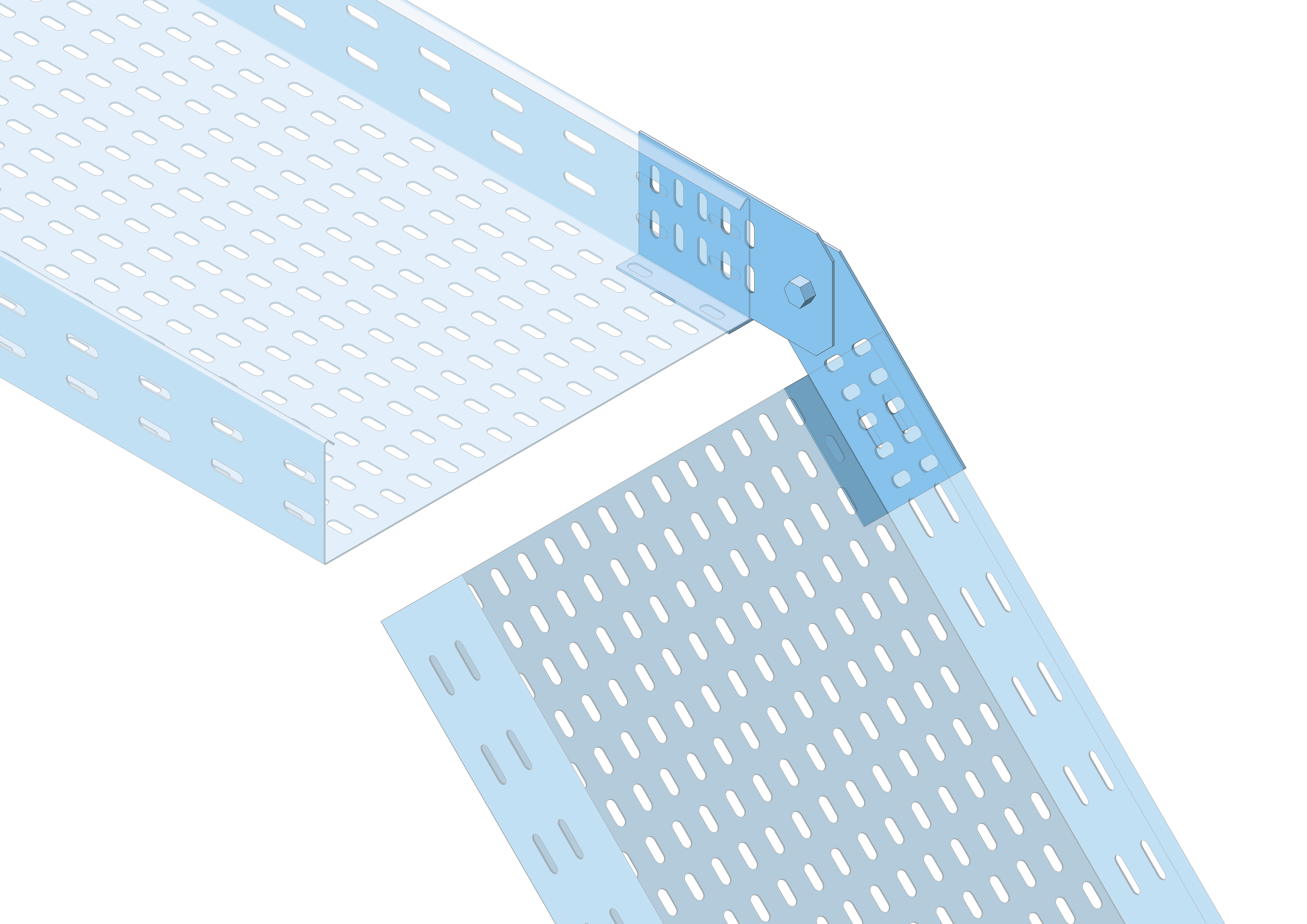

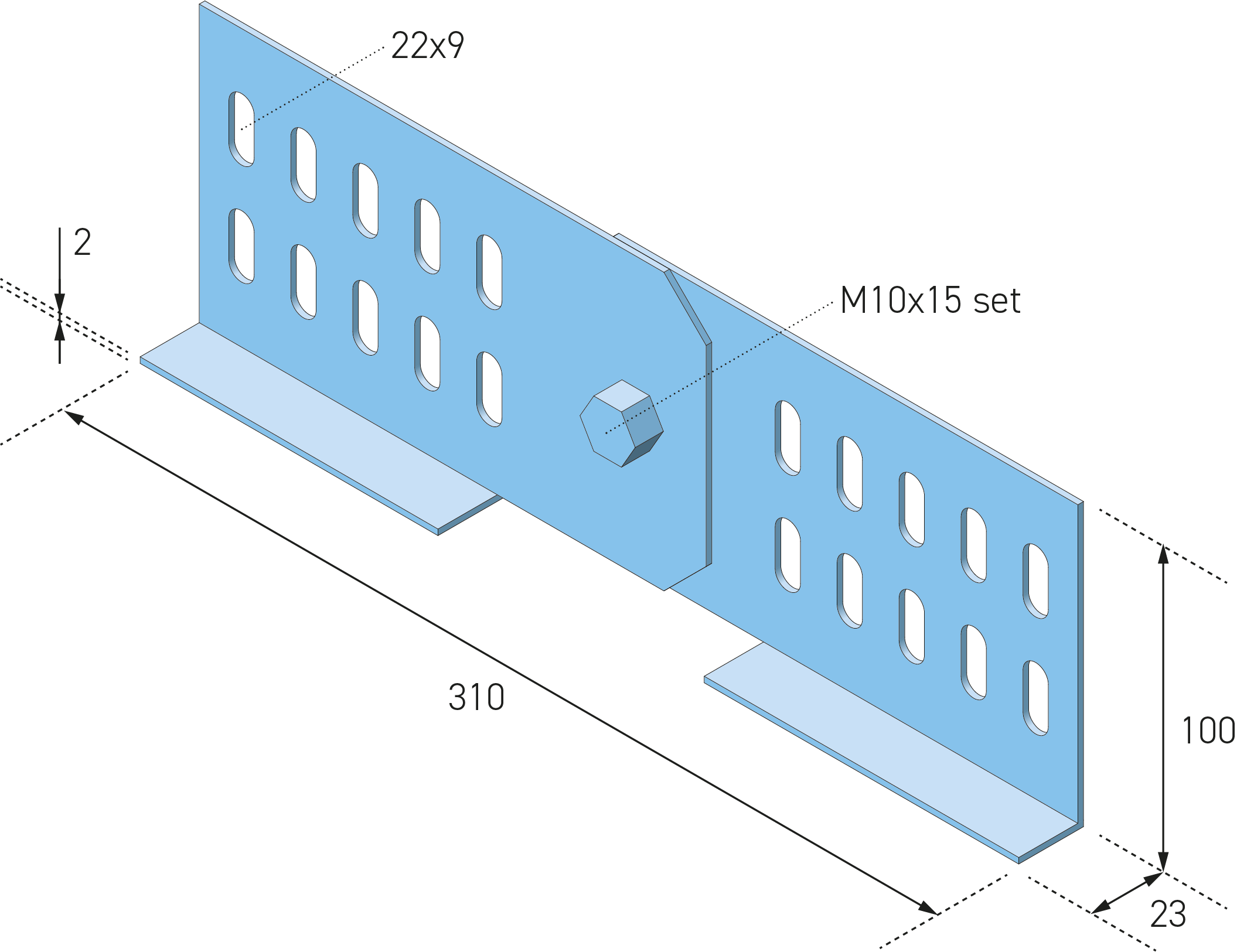

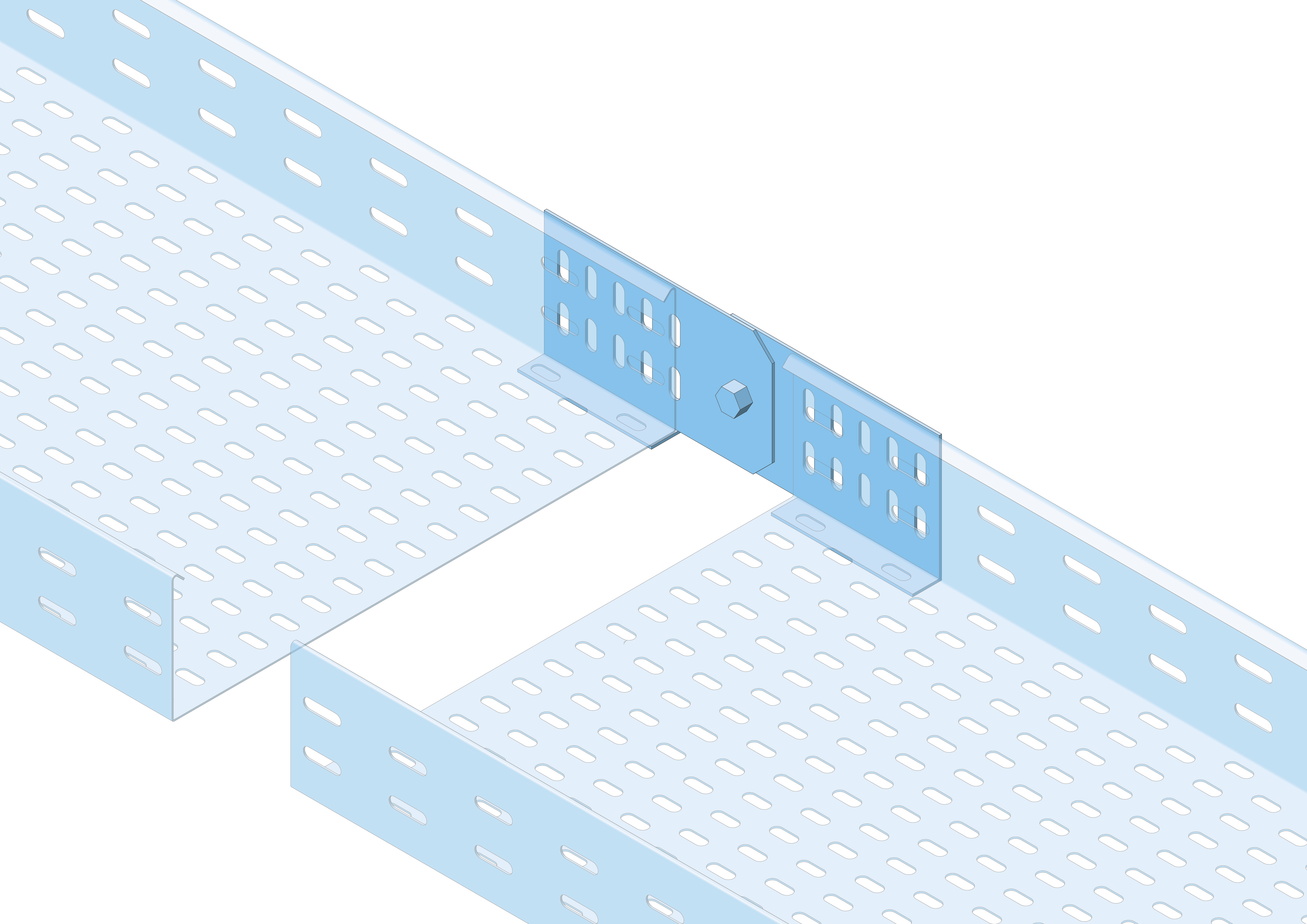

Vertical Coupler Plate Cable Tray ECT100 100 SS304 with sizes H = 100 mm, E (thickness) = 2,0 mm, stainless steel 304, including 8x EFS08x15-304 Eurostrut fixing set (bolt M08x15, nut and washer).
ECT100_Cable Tray 100mm_Overview.pdf
