Coupler Plate Hinged Vertical Marine Ladder HDG
Product number:
ESL-VC-H
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Length
Material quality
For ladder height
Length:
180 mm
Material quality:
Hot dip galvanized
For ladder height:
30 - 30 mm
Product number
Length
Material quality
For ladder height
Length:
180 mm
Material quality:
Stainless Steel 316
For ladder height:
30 - 30 mm
Product number
Length
Material quality
For ladder height
Length:
180 mm
Material quality:
Stainless Steel 304
For ladder height:
30 - 30 mm
Product information
| Model : | Length- and angle joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | Yes |
| Type of connection : | Screw connector |
| Suitable for cable ladder : | Yes |
| Suitable for cable support system height : | 30 - 30 mm |
| Length : | 180 mm |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

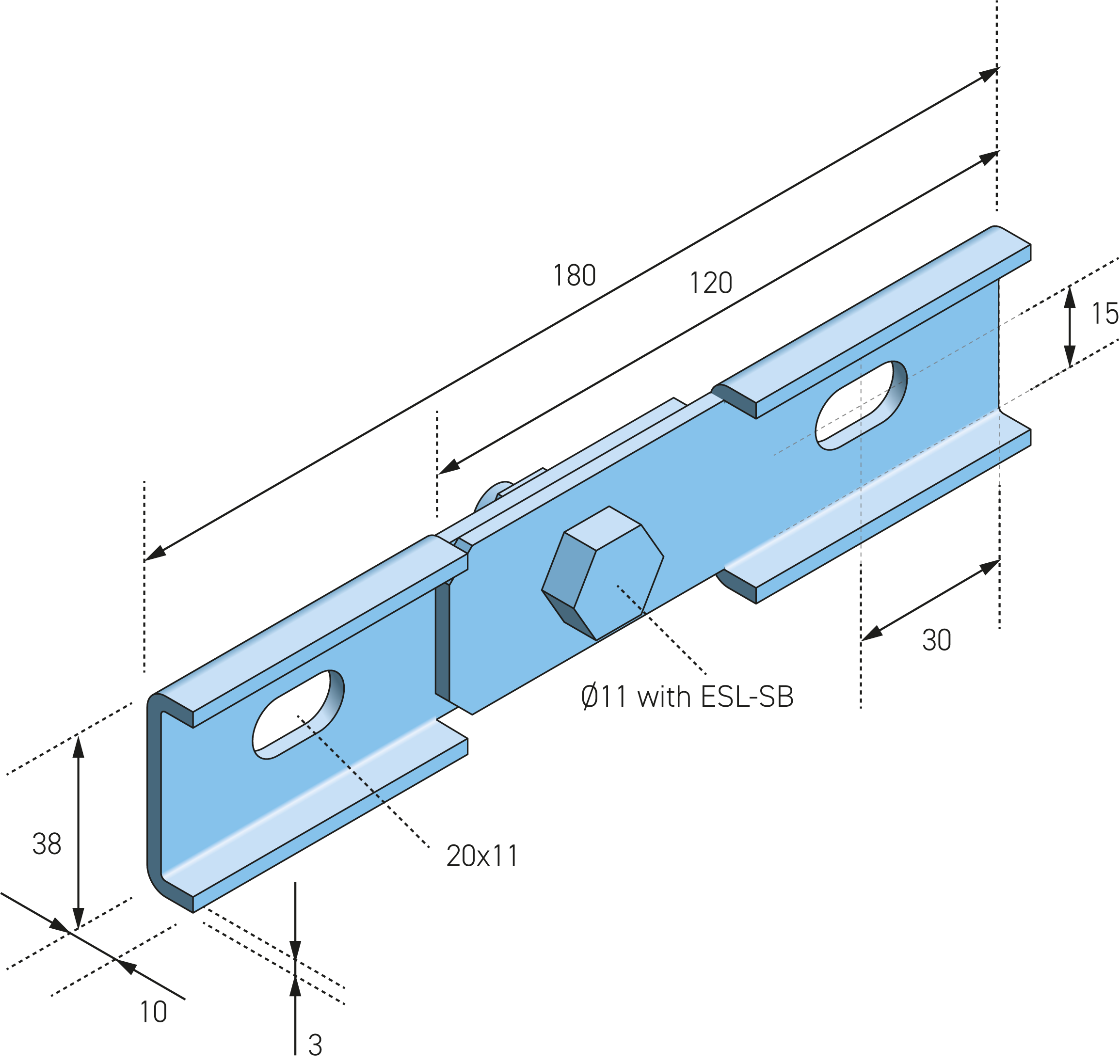

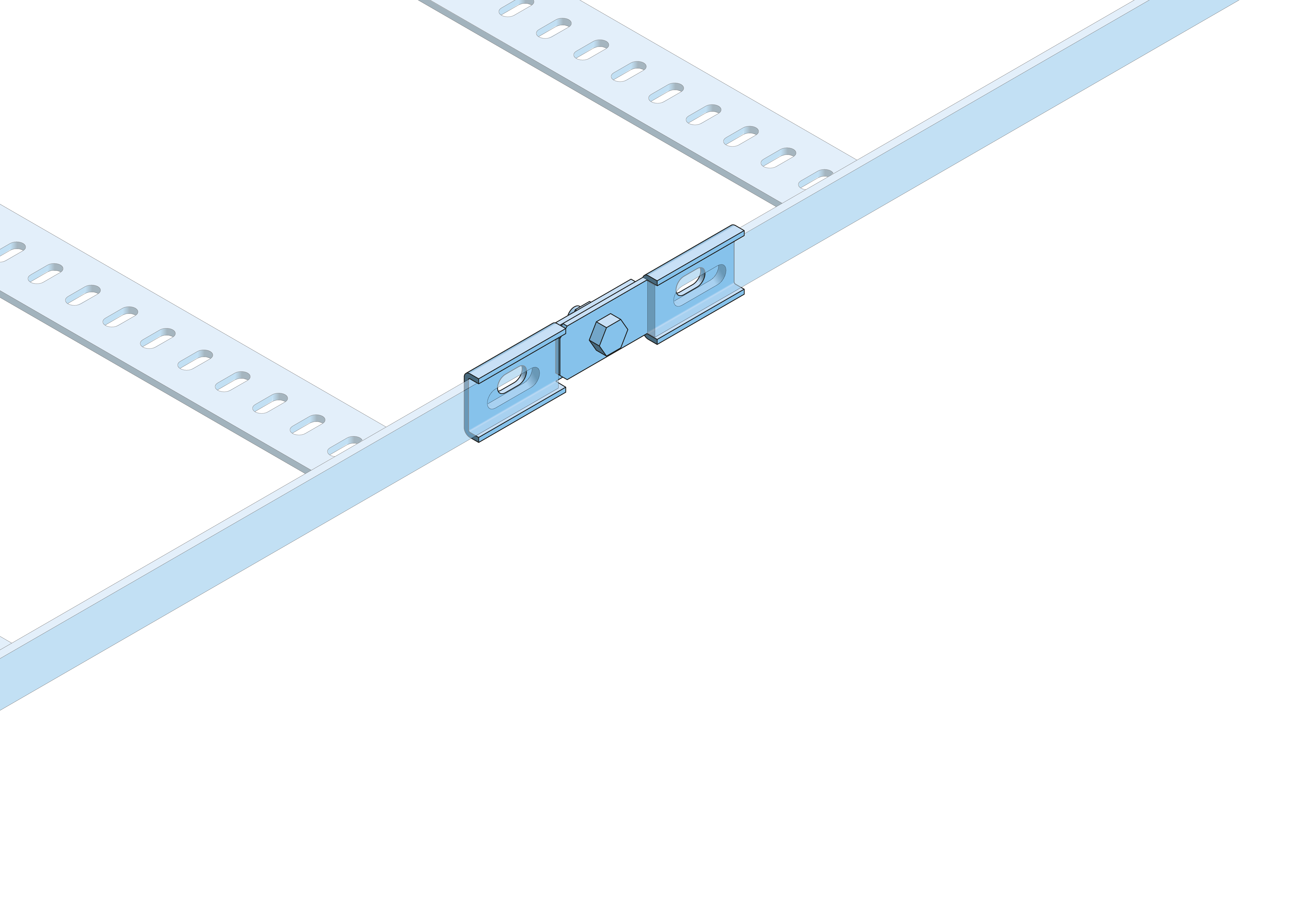

The ESL‑VC‑H is a vertical hinged connector for marine ladders – ideal for flexibly joining ladder sections with height differences.
Manufactured from cold-formed steel S235JRG and hot-dip galvanized in accordance with NEN‑EN‑ISO 1461. A minimum zinc layer thickness of 70 µm ensures excellent corrosion resistance in both indoor and outdoor environments.
Suitable for ladder systems with a height of 30 mm. Supplied with 2x ESL‑SB (M10x20) mounting sets.
- Material: Cold-formed steel S235JRG
- Finish: Hot-dip galvanized according to NEN‑EN‑ISO 1461 (min. 70 µm)
- Length: 120 mm
- Suitable for ladder height: 30 mm
- Mounting: Includes 2x ESL‑SB (M10x20) mounting sets
Other materials available on request.
