Cover Bend 45° Cable Tray ECT 600mm SS304
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Angle : | 45° |
|---|---|
| Change of direction : | Horizontal |
| Width : | 600 mm |
| Suitable for cable tray : | Yes |
| Type of fastening : | Cover clamp |
| Hinging : | No |
| Material : | Stainless steel |
| Material quality : | Stainless steel 304 (1.4301) |
| Colour : | Stainless steel |

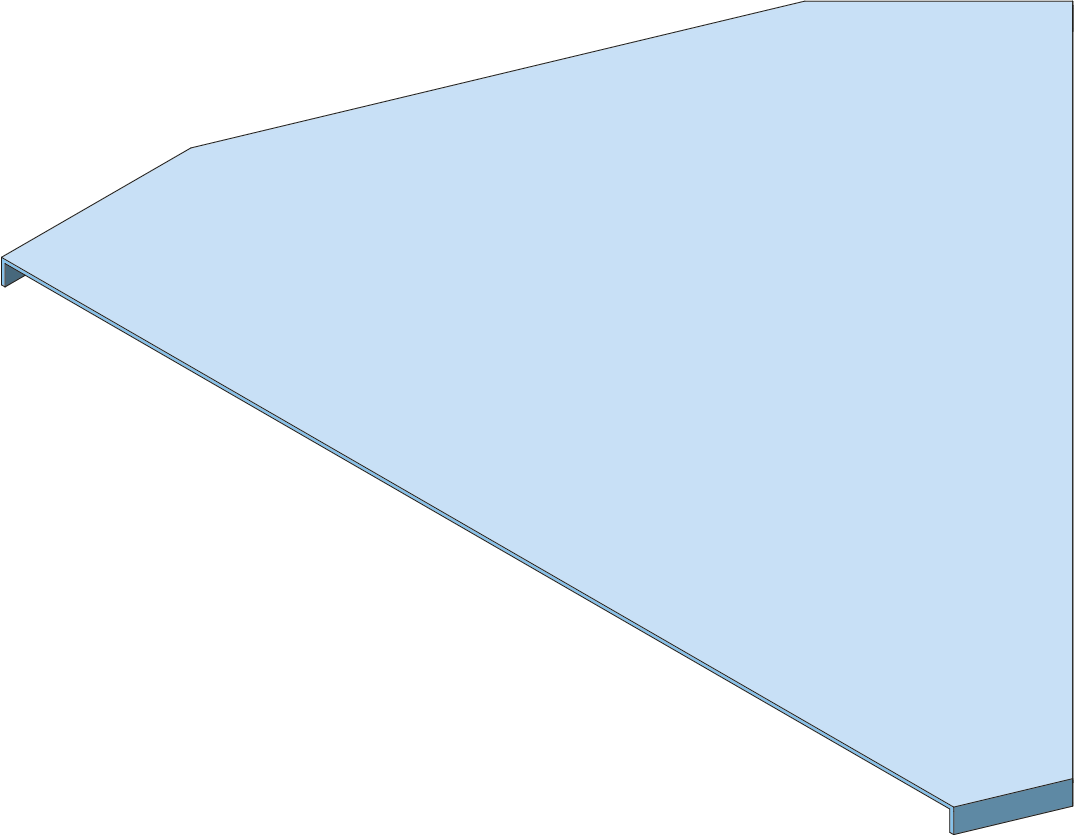

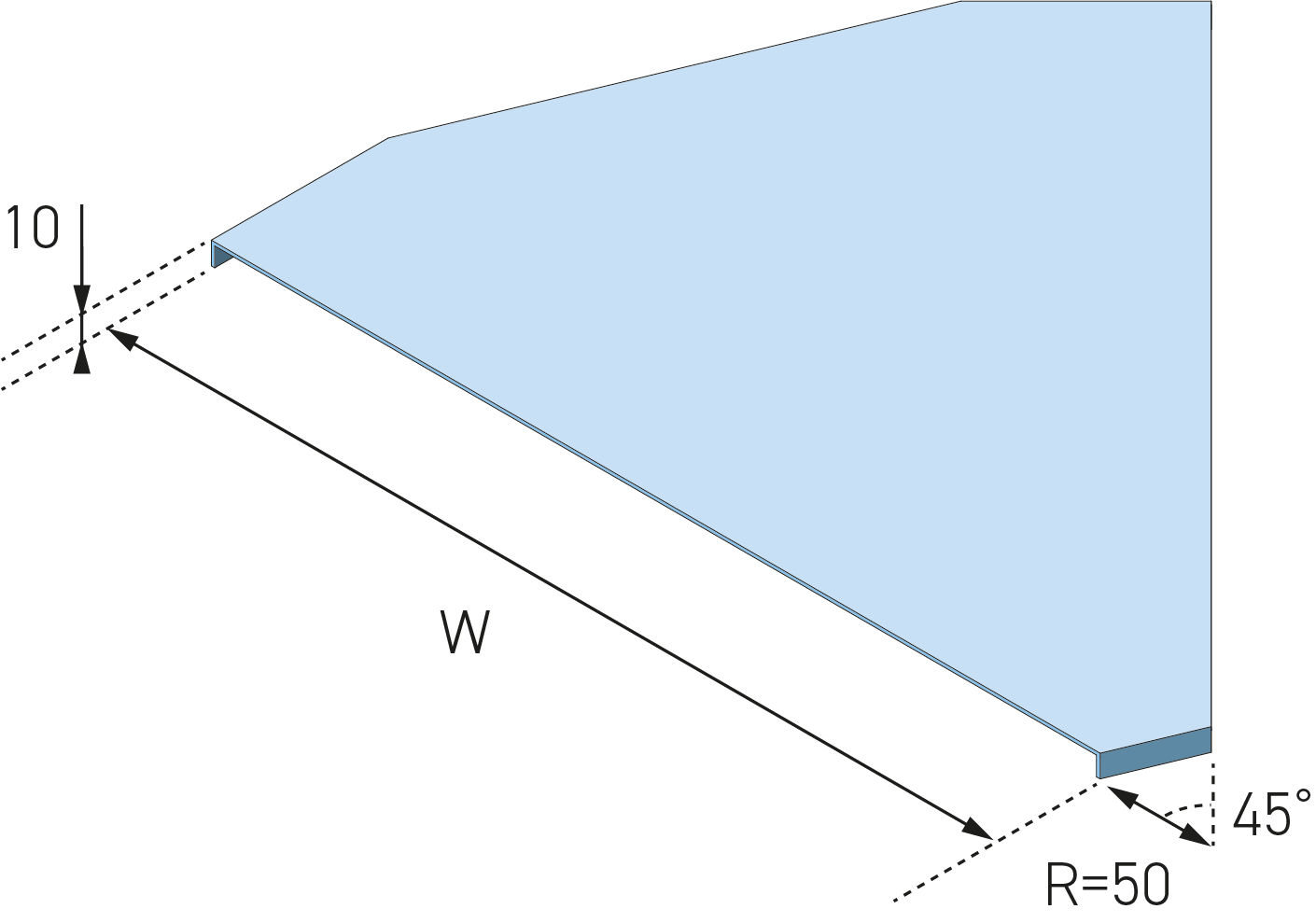

Cover Bend 45° for cable tray width 600 mm, W = 603mm, e (thickness) = 1.5 mm, 45°, stainless steel 304, without cover clamps.
Cover ECTCB45 is an accessory for the ECT60 and ECT100 cable tray systems and is used to cover horizontal 45° bends, specifically designed for bends ECTB60-45 and ECTB100-45. The cover ensures a closed and protected cable route at the change of direction and prevents the ingress of dust and debris. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and ensures durable corrosion protection of the surface, including cut edges, in accordance with IEC 61537 and installations compliant with NEN 1010.
The cover is specifically designed for installation on horizontal 45° bends ECTB60-45 and ECTB100-45. Fixing is carried out using the ECTCC cover clamp (not included), ensuring a stable and vibration-resistant attachment. The execution is fully compatible with the corresponding bends and other system components within the ECT system.
Technical Specifications
- Product type: Accessory – cover for horizontal 45° bend
- System: ECT60 and ECT100
- Compatibility: ECTB60-45 and ECTB100-45

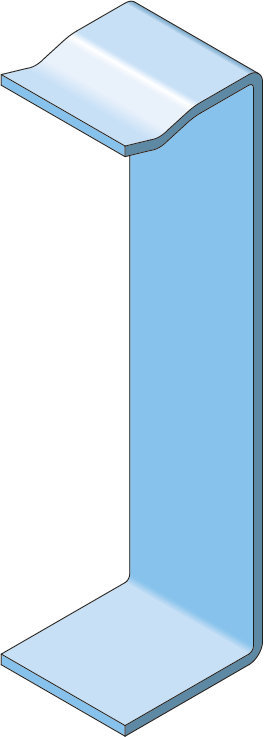

- Installation: Secured with ECTCC cover clamp (not included)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Covering horizontal 45° bends in cable tray systems
- Protection of cables at direction changes
- Heavy industrial and outdoor installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT system, the following components are relevant:

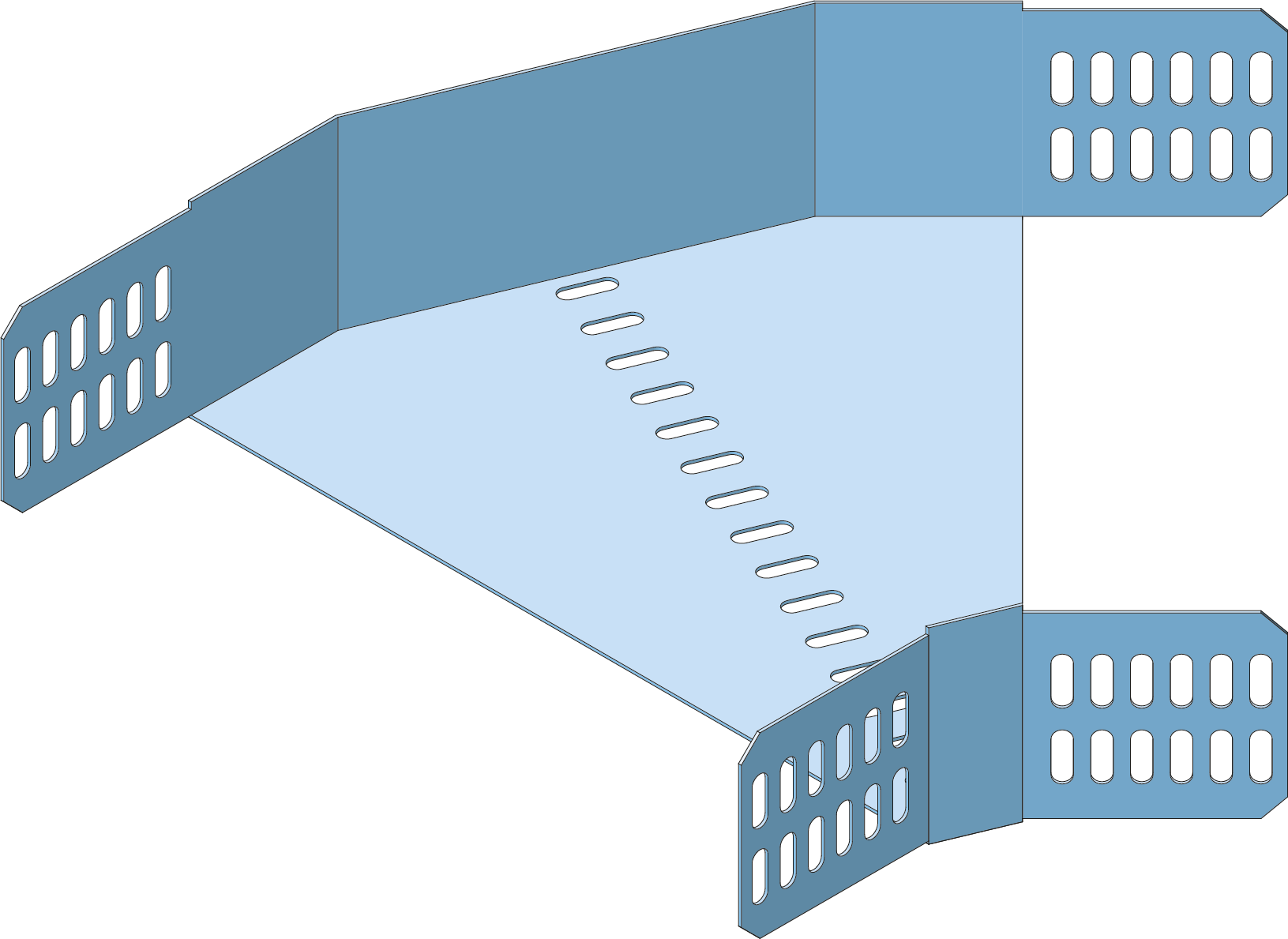

- Horizontal bends: ECTB60-45 and ECTB100-45

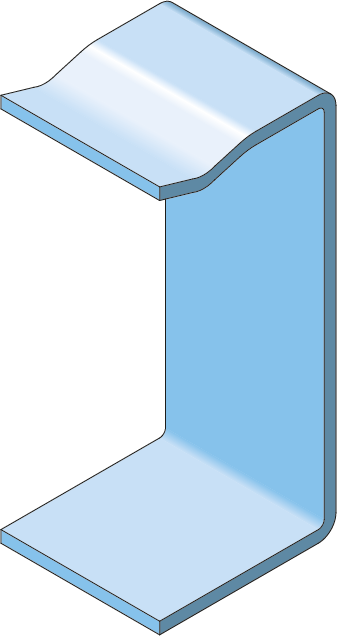

- Cover clamps: ECTCC for securing cable tray covers
- Straight cable trays: ECT60 and ECT100 cable trays in various widths
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths and angles available on request.
ECT60_Cable Tray 60mm_Overview.pdf

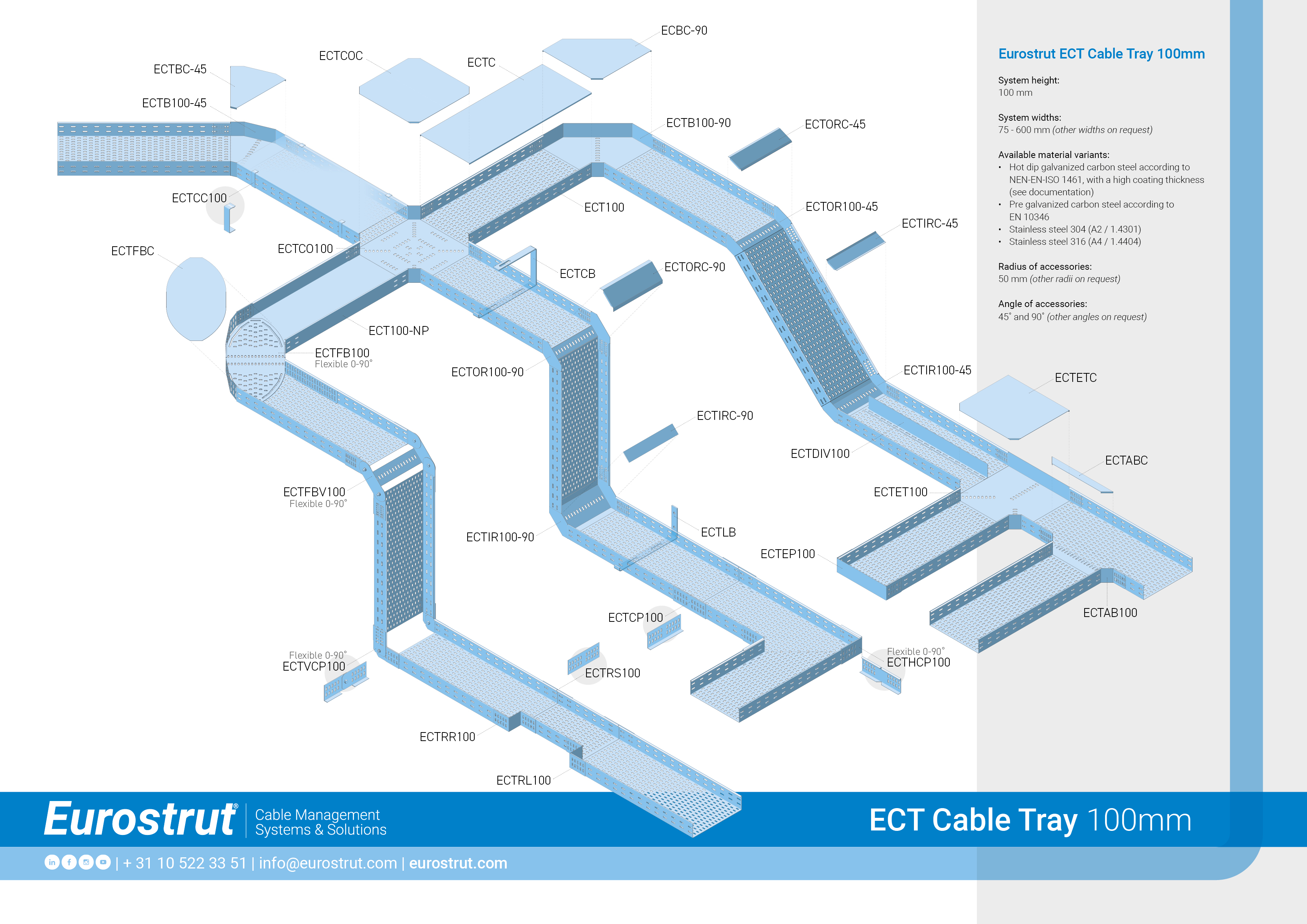

ECT100_Cable Tray 100mm_Overview.pdf
