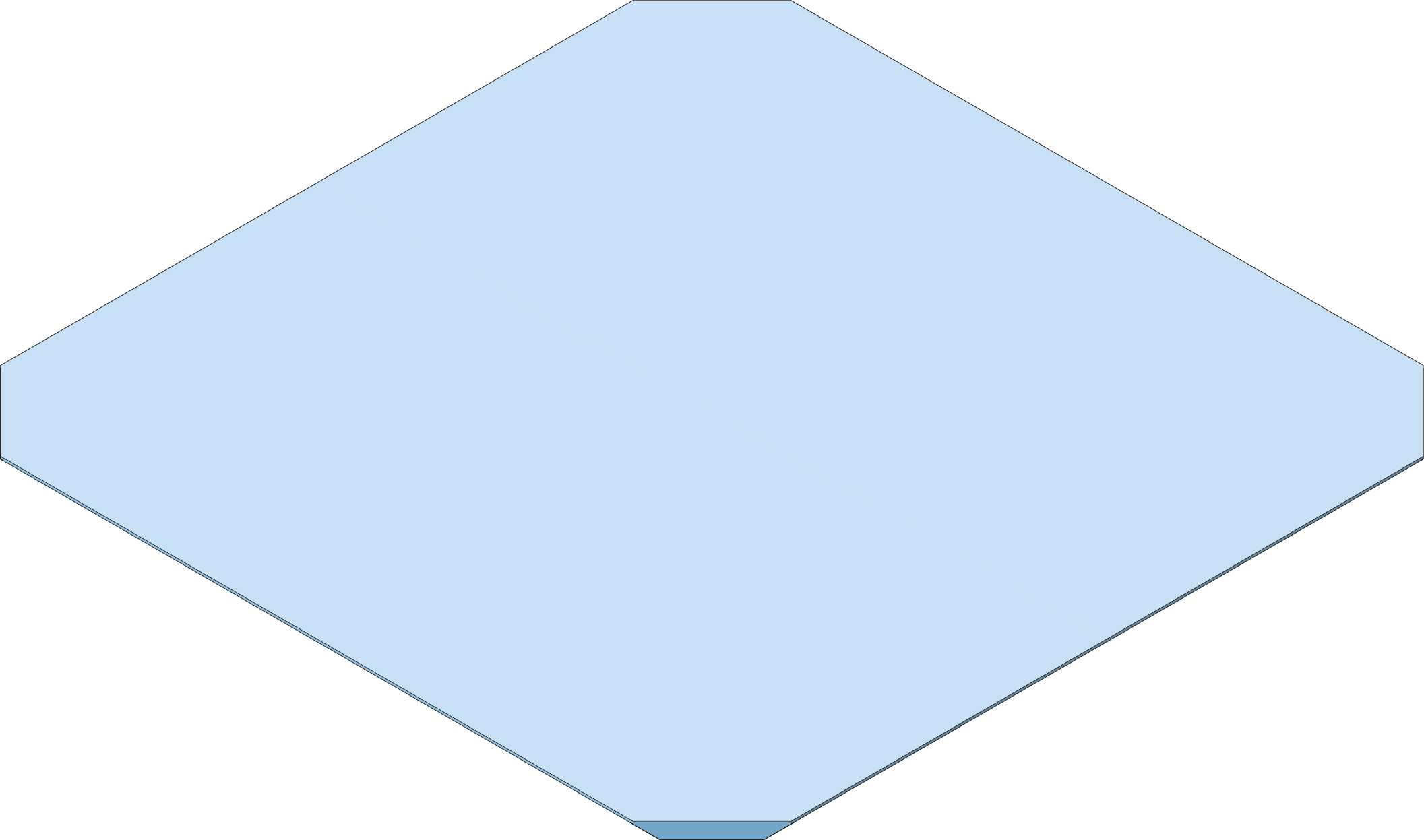

Cover Crossover Cable Tray ECTCO 400mm SV
Variations
Product information
| Width : | 400 mm |
|---|---|
| Suitable for cable tray : | Yes |
| Type of fastening : | Cover clamp |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Continuously galvanised |
| Colour : | Zinc |
Cover ECTCOC is an accessory for the ECT60 and ECT100 cable tray systems and is used to cover cross pieces, specifically designed for cross pieces ECTCO60 and ECTCO100. The cover ensures a closed and protected cable route at the four-way branch point and prevents the ingress of dust and debris. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and ensures durable corrosion protection of the surface, including cut edges, in accordance with IEC 61537 and installations compliant with NEN 1010.
The cover is specifically designed for installation on cross pieces within the ECT system. Fixing is carried out using the ECTCC60 cover clamp (not included), ensuring a stable and vibration-resistant attachment. The execution is fully compatible with the corresponding cross pieces and other system components.
Technical Specifications
- Product type: Accessory – cover for cross piece
- System: ECT60 and ECT100
- Compatibility: ECTCO60 and ECTCO100
- System width: 75 to 600 mm
- Installation: Secured with ECTCC60 cover clamp (not included)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Covering cross pieces in cable tray systems
- Protection of cables at four-way branch points
- Heavy industrial and outdoor installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT system, the following components are relevant:
- Cross pieces: ECTCO60 and ECTCO100
- Cover clamps: ECTCC60 for securing cable tray covers
- Straight cable trays: ECT60 and ECT100 cable trays in various widths
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths available on request.
