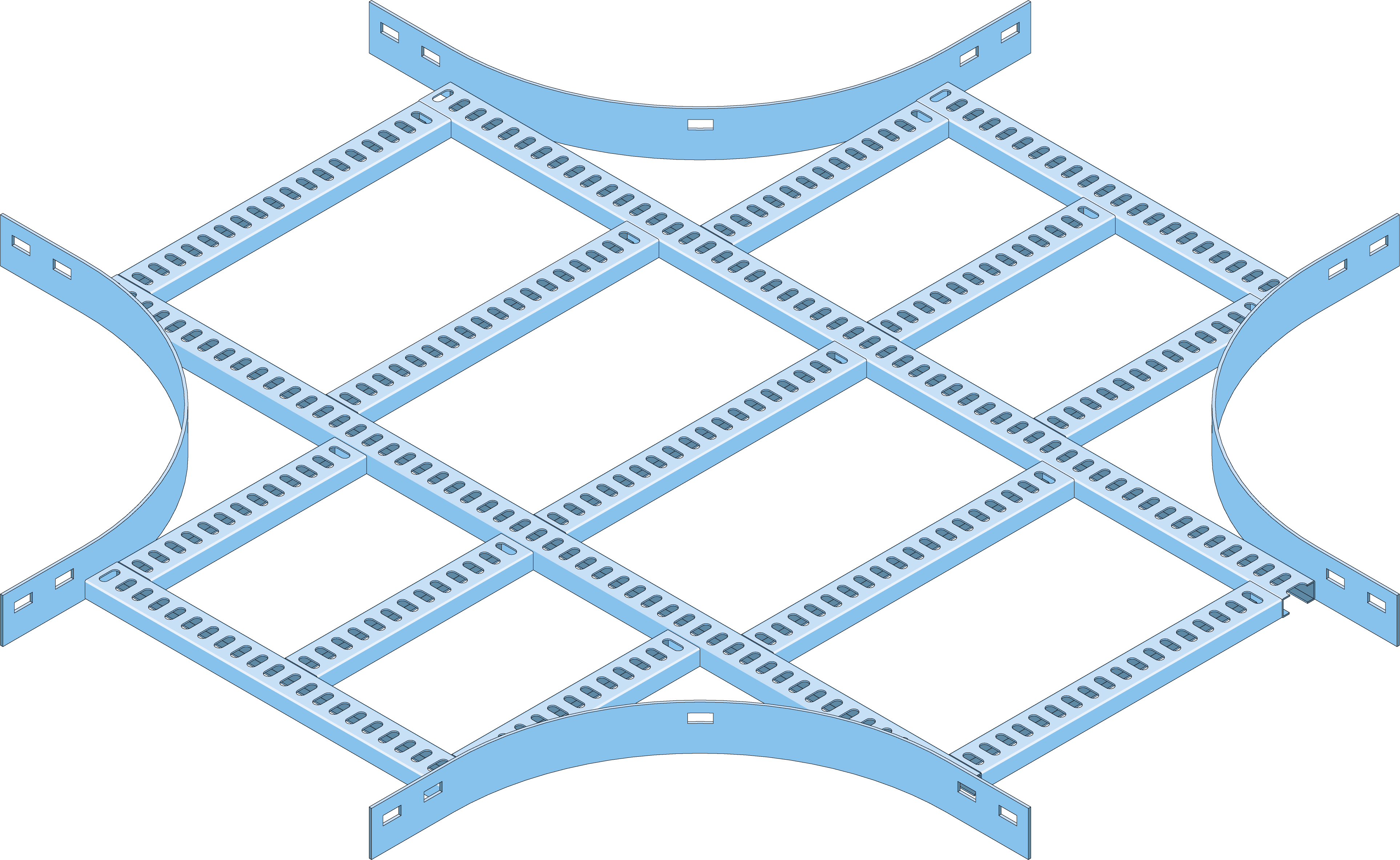

Crossover Cable Ladder ECL150 1000mm HDG
Product number:
ECO150-1000-300-HDG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Radius
For ladder width
For ladder height
Radius:
300 mm
For ladder width:
100 mm
For ladder height:
150 mm
Product number
Radius:
300 mm
For ladder width:
1000 mm
For ladder height:
150 mm
Product number
Radius
For ladder width
For ladder height
Radius:
300 mm
For ladder width:
100 mm
For ladder height:
142 mm
Product number
Radius:
300 mm
For ladder width:
1000 mm
For ladder height:
150 mm
Product number
Radius
For ladder width
For ladder height
Radius:
300 mm
For ladder width:
100 mm
For ladder height:
142 mm
Product number
Radius:
300 mm
For ladder width:
1000 mm
For ladder height:
150 mm

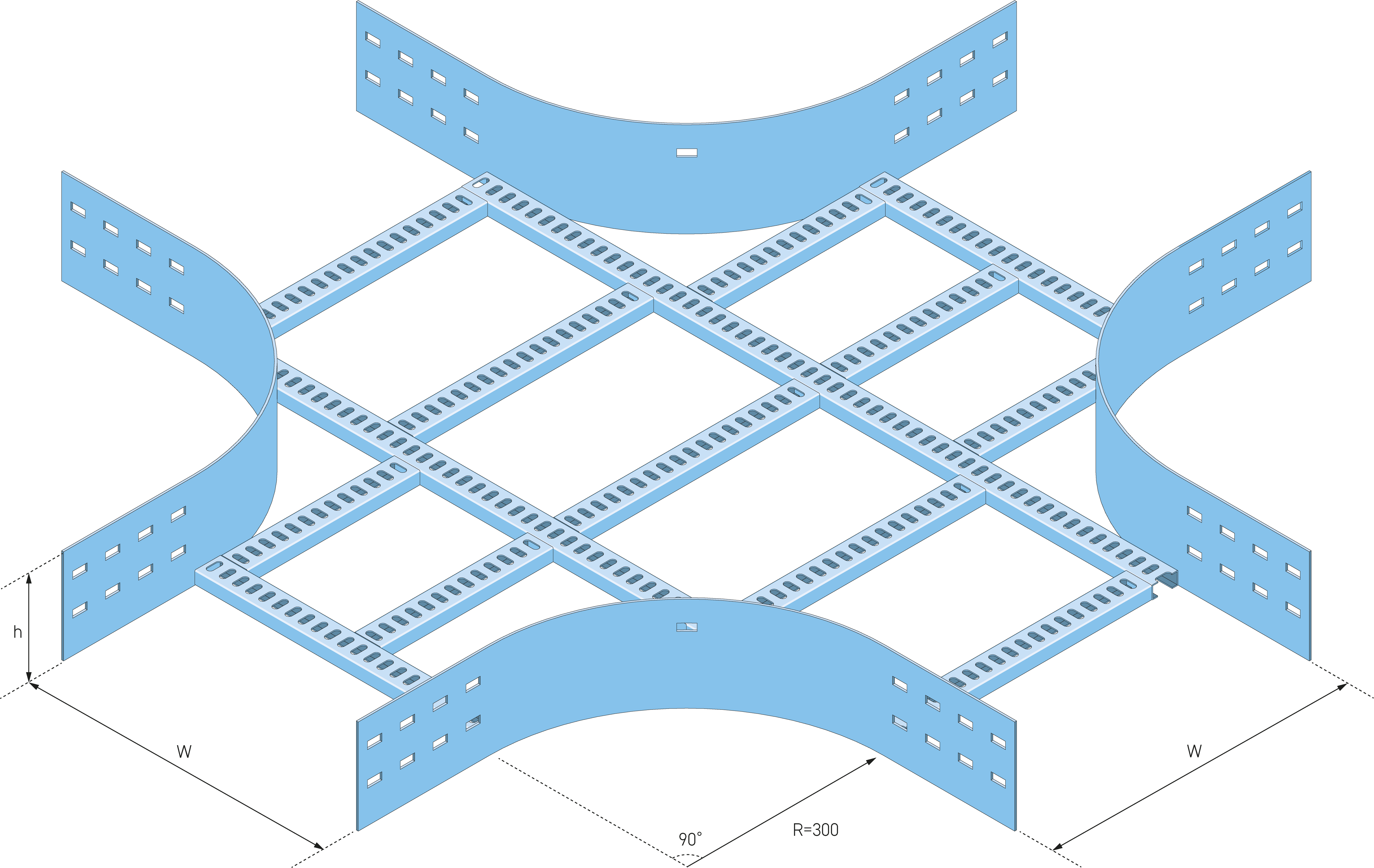

Product information
| Type of side joist : | Profile (open) |
|---|---|
| Type of rung : | Perforated profile |
| Suitable for cable ladder height : | 150 mm |
| Suitable for cable ladder width : | 1000 mm |
| Inner radius : | 300 mm |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
For Eurostrut Cable Ladder ECL150, H=100mm, W=1000mm, T=3,0mm, R=300, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm, including 32x ESL-SB-H Eurostrut fixing set (square neck bolt M10x20, nut and washer).
Properties
- Manufactured in accordance with BS EN 61537/IEC 61537.
- Standard surface finish of the cable ladder is hot dip galvanized (HDG) according to EN-ISO 1461.
- All rungs are welded to the side wall of the cable ladder.
- Accessories must be supported on all sides.
- Including 32x set M10x20
Variations
- On request also available in stainless steel 304 or 316L.
