Inside Riser 45° Cable Tray ECT60 500mm SS316
Product number:
ECTIR60-500-45-SS316
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
Suitable for cable tray height
For tray width
Angle
Material quality
Suitable for cable tray height:
60 mm
For tray width:
75 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
100 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
150 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
200 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
300 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
400 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
500 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
600 mm
Angle:
45°
Material quality:
Hot dip galvanized
Product number
Suitable for cable tray height
For tray width
Angle
Material quality
Suitable for cable tray height:
60 mm
For tray width:
75 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height:
60 mm
For tray width:
100 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height:
60 mm
For tray width:
150 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height:
60 mm
For tray width:
200 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height:
60 mm
For tray width:
300 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height:
60 mm
For tray width:
400 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height:
60 mm
For tray width:
500 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height:
60 mm
For tray width:
600 mm
Angle:
45°
Material quality:
Stainless Steel 316
Product number
Suitable for cable tray height
For tray width
Angle
Material quality
Suitable for cable tray height:
60 mm
For tray width:
75 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height:
60 mm
For tray width:
100 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height:
60 mm
For tray width:
150 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height:
60 mm
For tray width:
200 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height:
60 mm
For tray width:
300 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height:
60 mm
For tray width:
400 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height:
60 mm
For tray width:
500 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height:
60 mm
For tray width:
600 mm
Angle:
45°
Material quality:
Stainless Steel 304
Product number
Suitable for cable tray height
For tray width
Angle
Material quality
Suitable for cable tray height:
60 mm
For tray width:
75 mm
Angle:
45°
Material quality:
Pre galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
100 mm
Angle:
45°
Material quality:
Pre galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
150 mm
Angle:
45°
Material quality:
Pre galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
200 mm
Angle:
45°
Material quality:
Pre galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
300 mm
Angle:
45°
Material quality:
Pre galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
400 mm
Angle:
45°
Material quality:
Pre galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
500 mm
Angle:
45°
Material quality:
Pre galvanized
Product number
Suitable for cable tray height:
60 mm
For tray width:
600 mm
Angle:
45°
Material quality:
Pre galvanized
Product information
| Change of direction : | Vertically rising |
|---|---|
| Angle : | 45° |
| Construction type : | Bend rigid |
| Bend model : | Segmental bend |
| For connection with screws : | Yes |
| For screwless connection : | No |
| With cover : | No |
| Inner radius : | 50 mm |
| Suitable for cable tray height : | 60 mm |
| Suitable for cable tray width : | 500 mm |
| Material thickness : | 1.5 mm |
| Side perforation : | No |
| Bottom perforation : | Yes |
| NATO-mounting holes : | No |
| Model : | Integrated connector |
| Material : | Stainless steel |
| Stainless steel, pickled : | No |
| Material quality : | Rustproof and acidproof steel |
| Colour : | Stainless steel |

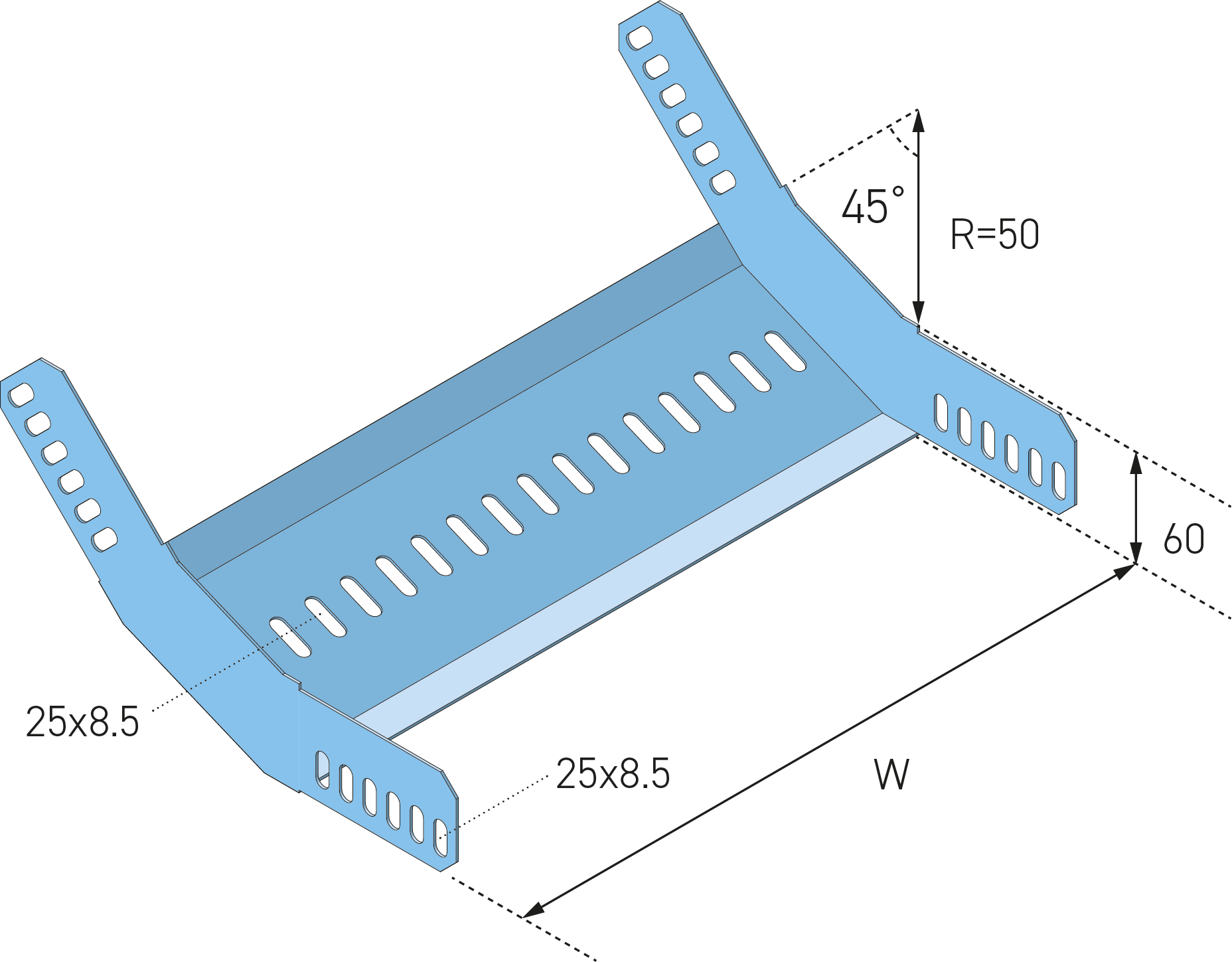

Inside Riser 45° Cable Tray ECT60 500SS316 with sizes H=60mm, W=500mm, E (thickness)=1,5mm, 45°, stainless steel 316, including 8x EFS08x15-316 Eurostrut fixing set (bolt M08x15, nut and washer).

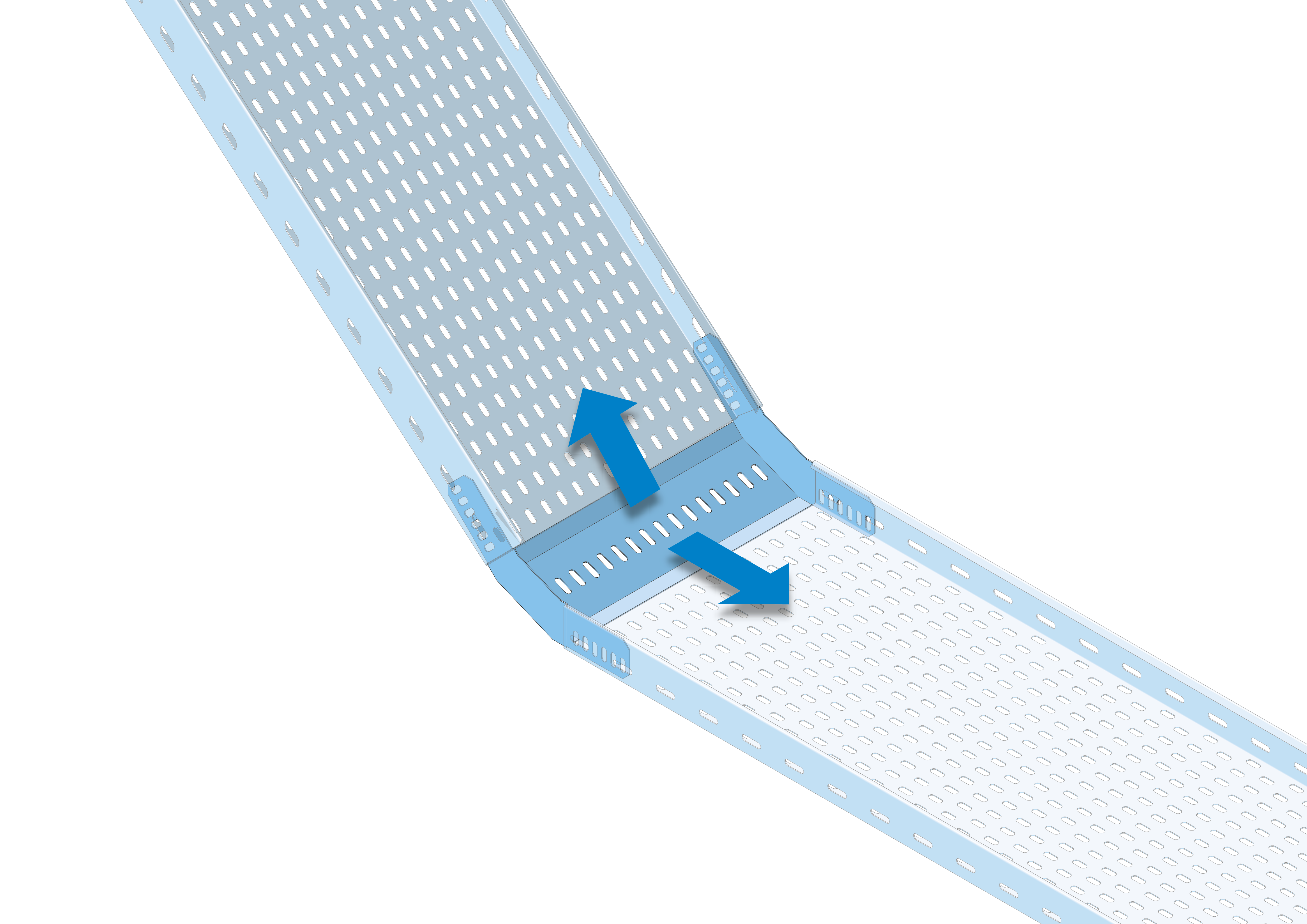

Inside riser ECTIR60 is an accessory for the ECT60 cable tray system and is used to create a vertical change of direction within cable routes. The 45° inside riser enables a gradual transition from a horizontal to an upward cable tray, ensuring controlled cable routing and reducing mechanical stress. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is carried out after fabrication and provides full protection of the surface, including cut edges and fixing holes. This makes the accessory suitable for applications with increased mechanical and corrosive loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The inside riser is designed as a fixed accessory with a 45° angle and is intended for direct connection to straight ECT60 cable trays. The execution is equipped with integrated connectors and is supplied including fixing material, enabling fast and alignment-stable installation. The accessory is fully compatible with other ECT60 components and contributes to a stable and uniform cable route.
Technical Specifications
- Product type: Accessory – inside riser for cable tray
- System: ECT60
- System height: 60 mm
- System width: 75 to 600 mm
- Angle: 45°
- Execution: With integrated connectors, including 8x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Vertical changes of direction using inside risers in ECT60 cable tray systems
- Transitions from horizontal to rising cable routes
- Heavy industrial installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation, Eurostrut offers various accessories, such as:
- Straight cable trays: ECT60 cable trays in various widths
- Other accessories: Bends, outside risers, T-pieces, and cross pieces for ECT60 systems
- Couplers: Coupling plates and bolt sets for ECT60 cable trays
These components ensure a safe, compatible, and maintenance-friendly installation.
Other widths and angles available on request.
Datasheet_Eurostrut_ECTIR60-45_NL_1
