Outside Riser 45° Cable Tray ECT100 200mm SS304
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Change of direction : | Vertically descending |
|---|---|
| Angle : | 45° |
| Construction type : | Bend rigid |
| Bend model : | Segmental bend |
| Suitable for connection with screws : | Yes |
| Suitable for screwless connection : | No |
| With cover : | No |
| Inner radius : | 50 mm |
| Suitable for cable tray height : | 100 mm |
| Suitable for cable tray width : | 200 mm |
| Material thickness : | 1 mm |
| Side perforation : | No |
| Bottom perforation : | Yes |
| Model : | Integrated connector |
| Material : | Stainless steel |
| Material quality : | Rustproof and acidproof steel |
| Colour : | Stainless steel |

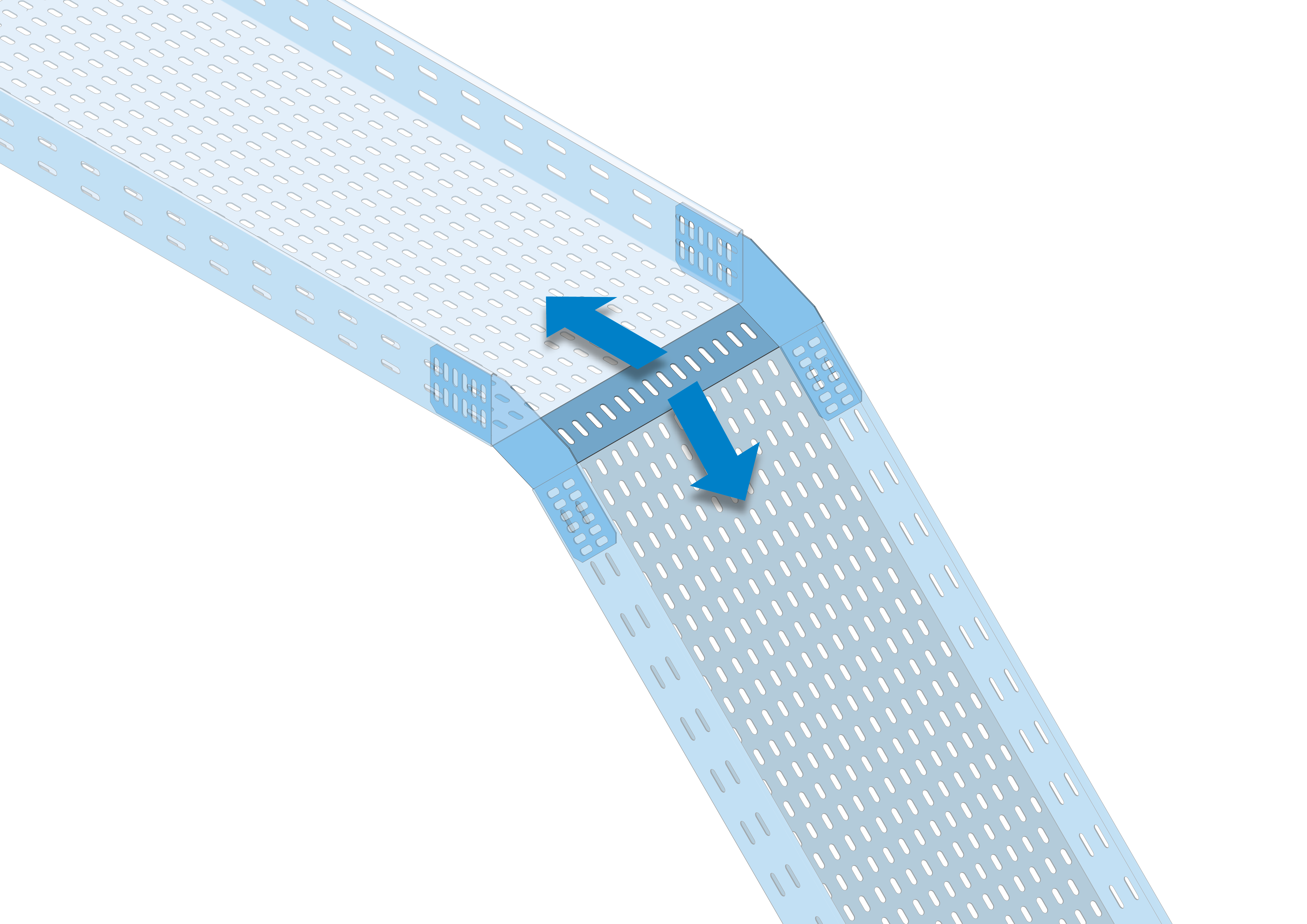

Outside riser ECTOR100-45 is an accessory for the ECT100 cable tray system and is used to create a vertical downward change in direction within cable routes. The 45° outside riser enables a controlled downward transition, allowing height differences in the cable route to be bridged gradually without excessive bending stress on the cabling. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes. This makes the accessory suitable for applications with increased corrosive and mechanical loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The outside riser is designed as a fixed vertical fitting with a 45° angle and a standard radius of 50 mm. The execution is equipped with integrated connectors and is supplied including 16x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer), enabling fast and alignment-stable installation. The accessory is fully compatible with other ECT100 system components and ensures a uniform and mechanically stable cable tray installation.
Technical Specifications
- Product type: Outside riser for cable tray
- System: ECT100
- System height: 100 mm
- System width: 100 to 600 mm
- Material thickness: 1.0 to 1.5 mm
- Angle: 45°
- Radius: 50 mm
- Connector perforation: 25 x 8.5 mm
- Bottom perforation: 25 x 8.5 mm
- Material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Connection method: Bolted
- Execution: With integrated connectors, including 16x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer)
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
- Direction change: Vertical downward
- Construction type: Outside riser
- Top cover: No
- Side perforation: No
- Bottom perforation: Yes
Typical Applications
- Vertical downward changes in cable tray systems
- Bridging height differences in cable routes
- Heavy industrial and outdoor installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT100 system, the following components are relevant:
- Cable trays: ECT100 cable trays in various widths
- Couplers: For longitudinal connections
- Inside risers: For vertical upward transitions
- Brackets: Wall, ceiling, and trapeze brackets
- Covers and clamps: For protection and fixation
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths, radii and angles available on request.
