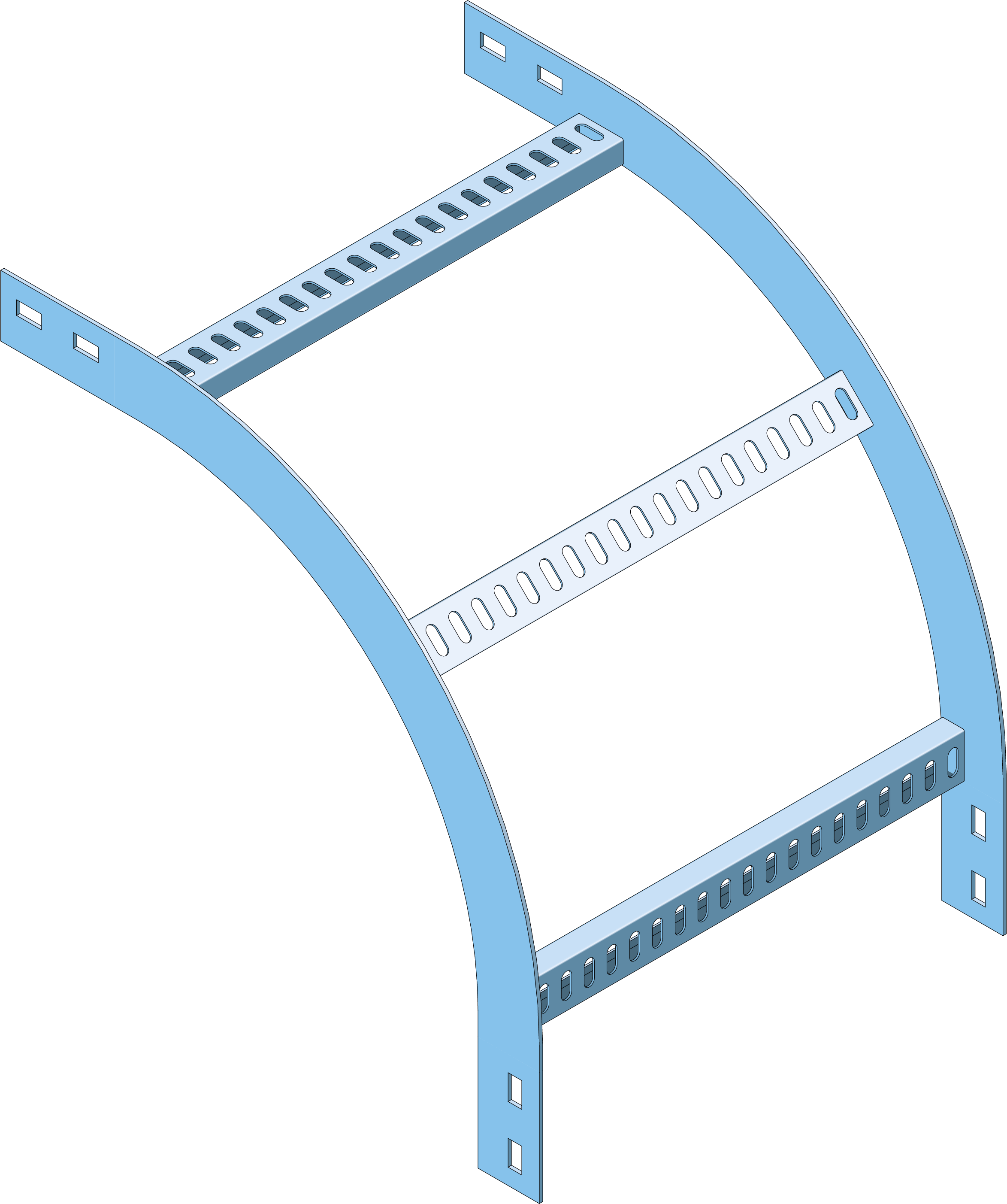

Outside Riser 90° Cable Ladder ECL100 1000mm HDG
Product number:
EOR100-1000-90-300-HDG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
For ladder height
For ladder width
Radius
For ladder height:
100 mm
For ladder width:
100 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
1000 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
200 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
300 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
400 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
500 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
600 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
700 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
800 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
900 mm
Radius:
300 mm
Product number
For ladder height
For ladder width
Radius
For ladder height:
100 mm
For ladder width:
100 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
1000 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
200 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
300 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
400 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
500 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
600 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
700 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
800 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
900 mm
Radius:
300 mm
Product number
For ladder height
For ladder width
Radius
For ladder height:
100 mm
For ladder width:
100 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
1000 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
200 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
300 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
400 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
500 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
600 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
700 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
800 mm
Radius:
300 mm
Product number
For ladder height:
100 mm
For ladder width:
900 mm
Radius:
300 mm
Product information
| Change of direction : | Rising/descending |
|---|---|
| Type of side joist : | Flat profile |
| Side perforation : | Yes |
| Type of rung : | Perforated profile |
| Angle : | 90° |
| Bend model : | Smooth bend |
| Hinging : | No |
| Suitable for cable ladder height : | 100 mm |
| Suitable for cable ladder width : | 1000 mm |
| Model : | Included connector |

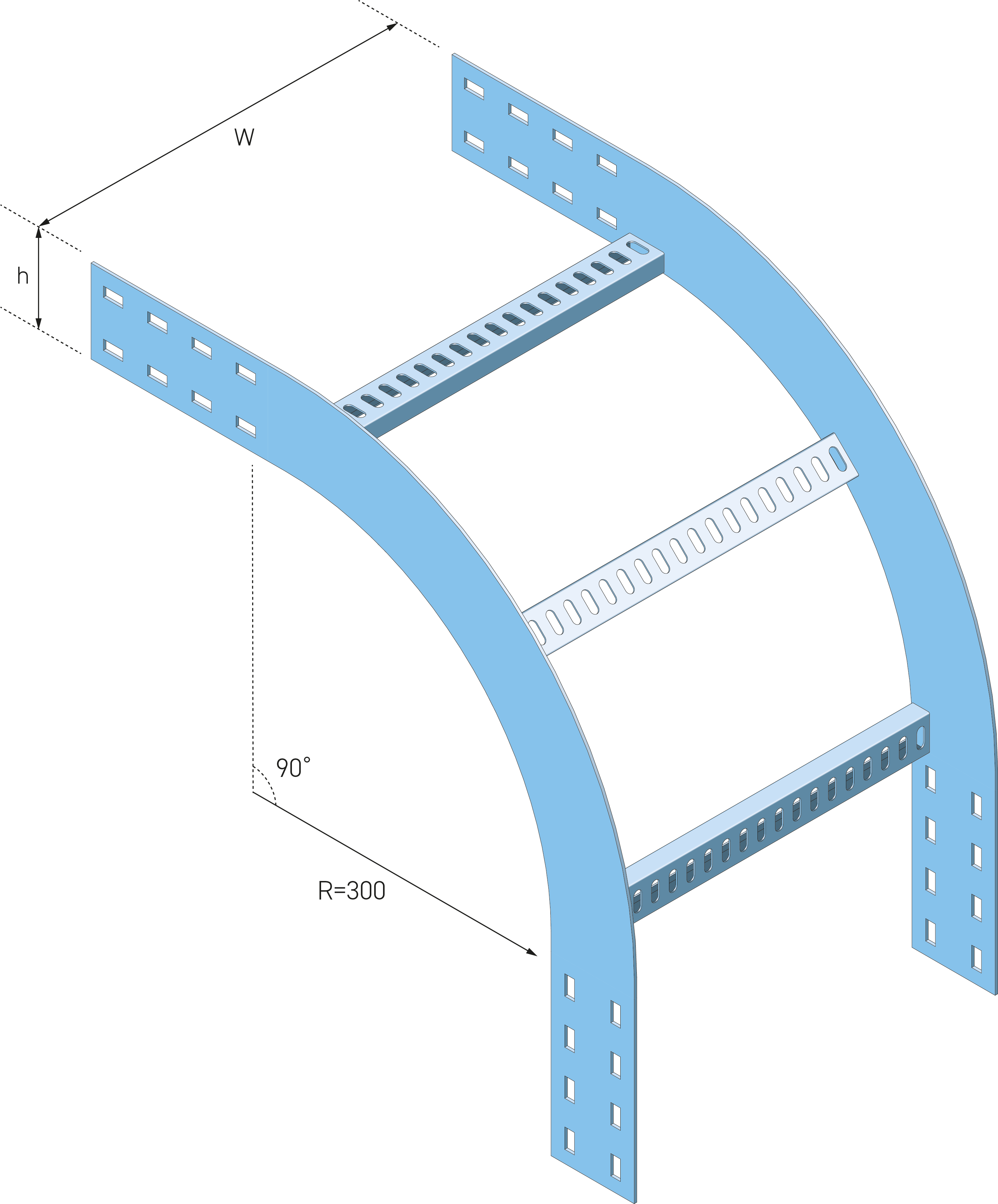

| Inner radius : | 300 mm |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

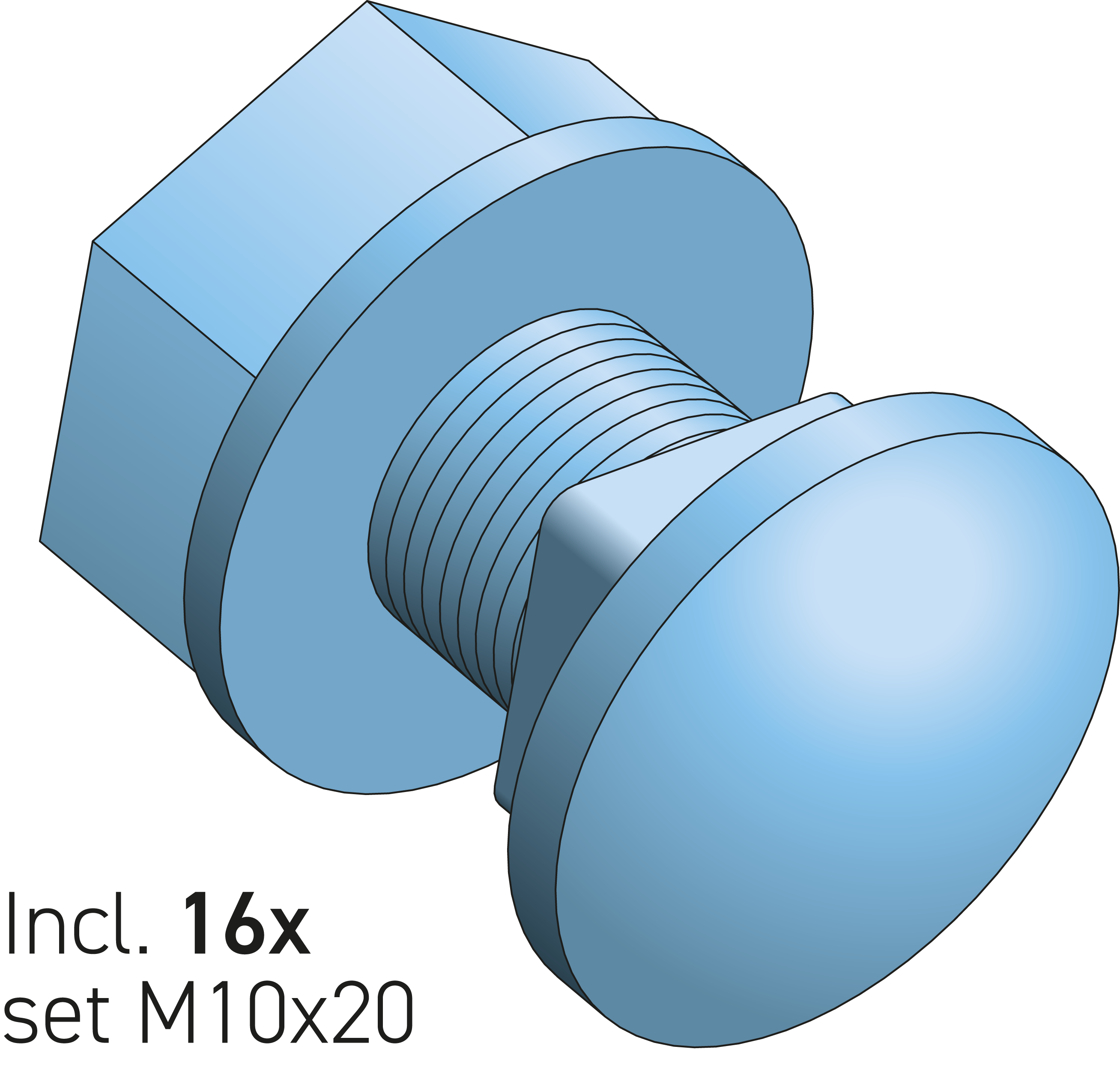

For Eurostrut Cable Ladder ECL100, H=100mm, W=1000mm, T=3,0mm, R=300, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm, including 16x ESL-SB-H Eurostrut fixing set (square neck bolt M10x20, nut and washer).
Properties
- Manufactured in accordance with BS EN 61537/IEC 61537.
- Standard surface finish of the cable ladder is hot dip galvanized (HDG) according to EN-ISO 1461.
- All rungs are welded to the side wall of the cable ladder.
- Accessories must be supported on all sides.
- Including 16x set M10x20.
Variations
- On request also available in stainless steel 304 or 316L.
Eurostrut_Product Datasheet_EOR100_NL
