Outside Riser 90° Cable Ladder ECL150 1000mm HDG
Product number:
EOR150-1000-90-300-HDG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Material quality
Radius
Angle
Material quality:
Hot dip galvanized
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Hot dip galvanized
Radius:
300 mm
Angle:
90°
Product number
Material quality
Radius
Angle
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 316
Radius:
300 mm
Angle:
90°
Product number
Material quality
Radius
Angle
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product number
Material quality:
Stainless Steel 304
Radius:
300 mm
Angle:
90°
Product information
| Change of direction : | Rising/descending |
|---|---|
| Type of side joist : | Profile (open) |
| Side perforation : | Yes |
| Type of rung : | Perforated profile |
| Angle : | 90° |
| Bend model : | Smooth bend |
| Suitable for cable ladder height : | 142 mm |
| Suitable for cable ladder width : | 1005 mm |
| Inner radius : | 300 mm |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

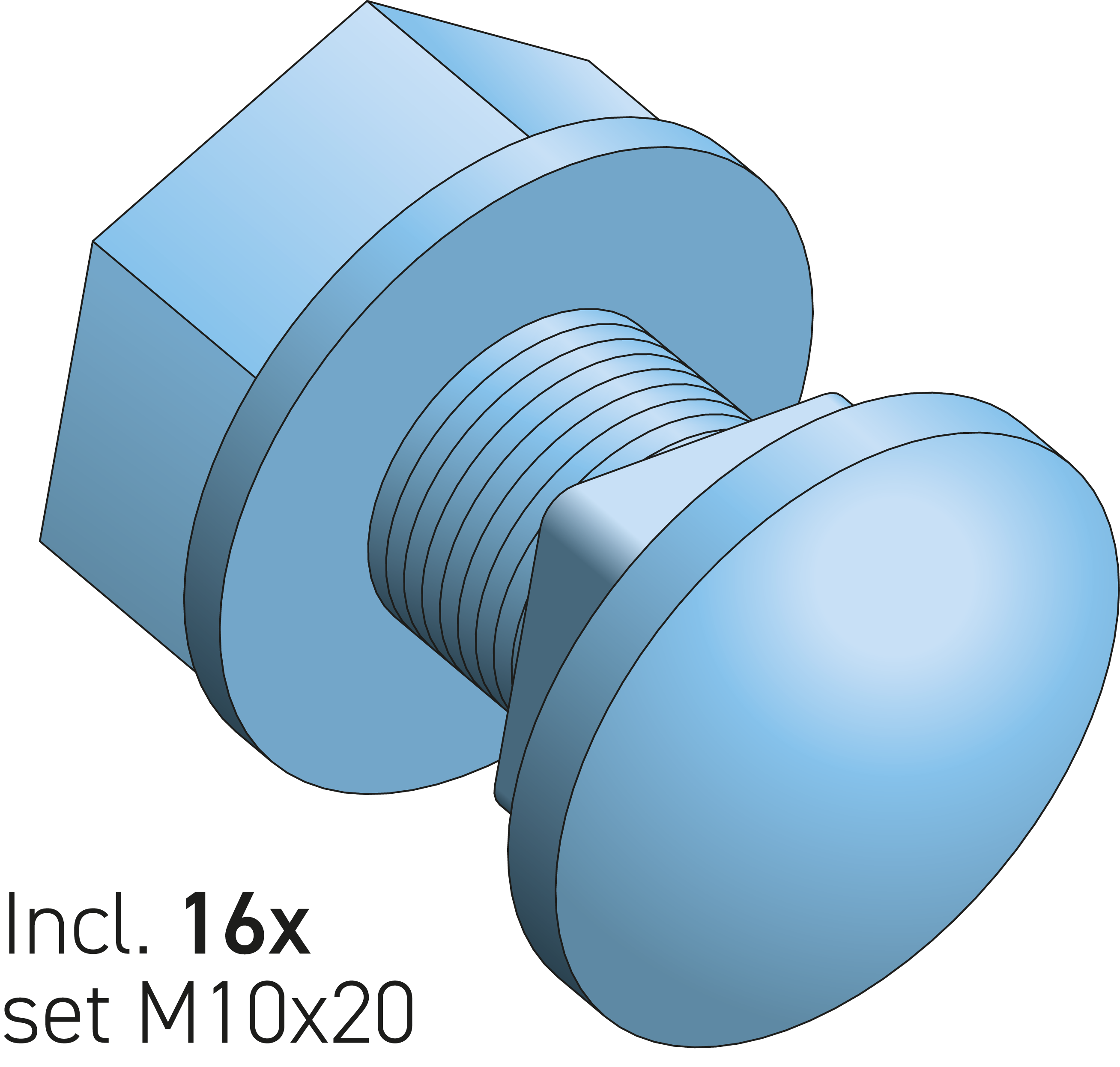

For Eurostrut Cable Ladder ECL150, H=150mm, W=1000mm, T=3,0mm, R=300, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm, including 16x ESL-SB-H Eurostrut fixing set (square neck bolt M10x20, nut and washer).
Properties
- Manufactured in accordance with BS EN 61537/IEC 61537.
- Standard surface finish of the cable ladder is hot dip galvanized (HDG) according to EN-ISO 1461.
- All rungs are welded to the side wall of the cable ladder.
- Accessories must be supported on all sides.
- Including 16x set M10x20.
Variations
- On request also available in stainless steel 304 or 316L.
