Stitch On Piece Marine Ladder 250mm SS316L

Variations

Product number

ESL-A-075H

Radius

For ladder height

Branch width

Radius:

150 mm

For ladder height:

30 mm

Branch width:

75 mm

Product number

ESL-A-100H

Radius:

150 mm

For ladder height:

30 mm

Branch width:

100 mm

Product number

ESL-A-150H

Radius:

150 mm

For ladder height:

30 mm

Branch width:

150 mm

Product number

ESL-A-200H

Radius:

150 mm

For ladder height:

30 mm

Branch width:

200 mm

Product number

ESL-A-250H

Radius:

150 mm

For ladder height:

30 mm

Branch width:

250 mm

Product number

ESL-A-300H

Radius:

150 mm

For ladder height:

30 mm

Branch width:

300 mm

Product number

ESL-A-400H

Radius:

150 mm

For ladder height:

30 mm

Branch width:

400 mm

Product number

ESL-A-500H

Radius:

150 mm

For ladder height:

30 mm

Branch width:

500 mm

Product number

ESL-A-075S316

Radius

For ladder height

Branch width

Radius:

150 mm

For ladder height:

30 mm

Branch width:

75 mm

Product number

ESL-A-100S316

Radius:

150 mm

For ladder height:

30 mm

Branch width:

100 mm

Product number

ESL-A-150S316

Radius:

150 mm

For ladder height:

30 mm

Branch width:

150 mm

Product number

ESL-A-200S316

Radius:

150 mm

For ladder height:

30 mm

Branch width:

200 mm

Product number

ESL-A-250S316

Radius:

150 mm

For ladder height:

30 mm

Branch width:

250 mm

Product number

ESL-A-300S316

Radius:

150 mm

For ladder height:

30 mm

Branch width:

300 mm

Product number

ESL-A-400S316

Radius:

150 mm

For ladder height:

30 mm

Branch width:

400 mm

Product number

ESL-A-500S316

Radius:

150 mm

For ladder height:

30 mm

Branch width:

500 mm

Product number

ESL-A-075S304

Radius

For ladder height

Branch width

Radius:

150 mm

For ladder height:

30 mm

Branch width:

75 mm

Product number

ESL-A-100S304

Radius:

150 mm

For ladder height:

30 mm

Branch width:

100 mm

Product number

ESL-A-150S304

Radius:

150 mm

For ladder height:

30 mm

Branch width:

150 mm

Product number

ESL-A-200S304

Radius:

150 mm

For ladder height:

30 mm

Branch width:

200 mm

Product number

ESL-A-250S304

Radius:

150 mm

For ladder height:

30 mm

Branch width:

250 mm

Product number

ESL-A-300S304

Radius:

150 mm

For ladder height:

30 mm

Branch width:

300 mm

Product number

ESL-A-400S304

Radius:

150 mm

For ladder height:

30 mm

Branch width:

400 mm

Product number

ESL-A-500S304

Radius:

150 mm

For ladder height:

30 mm

Branch width:

500 mm

Product information

Type of side joist :	Flat profile
Type of rung :	Perforated profile
Cable ladder branch width :	250 mm
Suitable for cable ladder height :	30 mm
Inner radius :	150 mm
Model :	Without connector
Material :	Stainless steel
Material quality :	Stainless steel 316 L (1.4404)
Surface protection :	Untreated
Colour :	Stainless steel

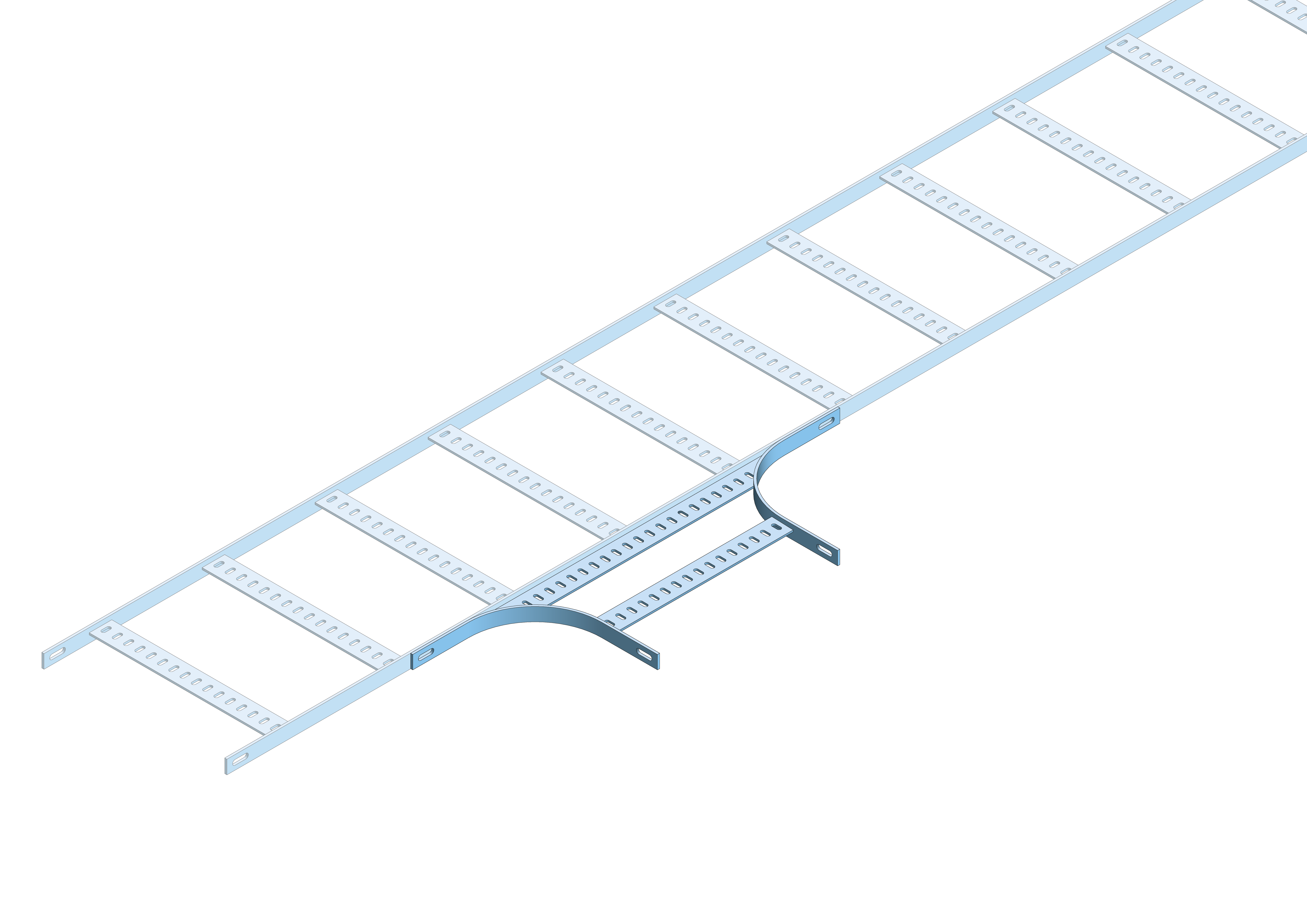

The ESL-A-S316 is a Stitch On Piece for marine ladders – ideal for adding a branch or upward connection to an existing cable routing system.

Manufactured from stainless steel AISI 316 with a smooth surface and enhanced corrosion resistance. Suitable for aggressive environments such as chemical plants, food processing, and coastal areas.

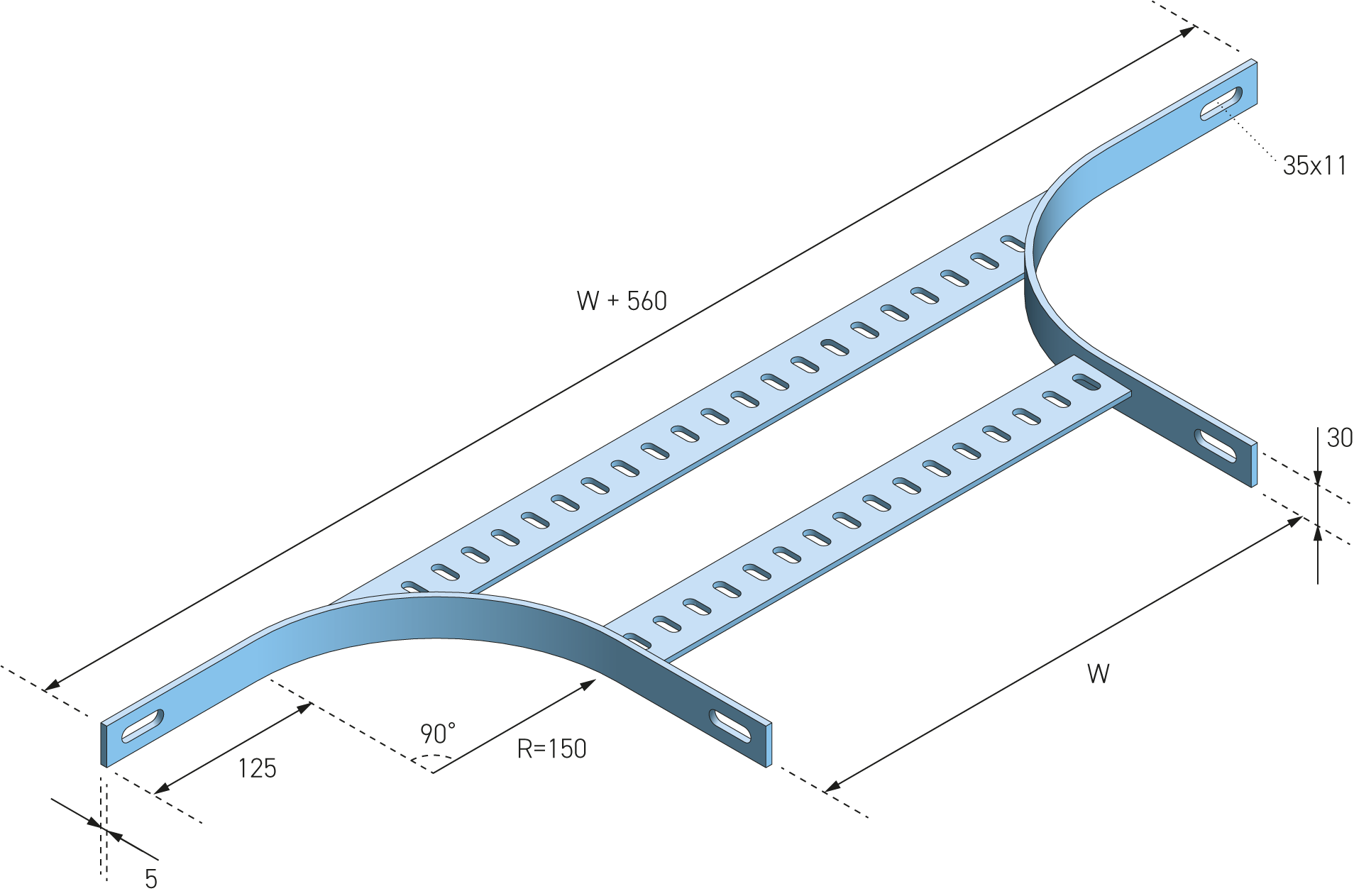

This component features an inner radius of 150 mm and is suitable for marine ladders with a height of 30 mm and a branch width up to 500 mm.

Material: Stainless steel AISI 316
Finish: Untreated (smooth stainless steel surface)
Type: Stitch On Piece (branch connection)
Inner radius: 150 mm
Suitable for ladder height: 30 mm
Branch width: up to 500 mm (other sizes on request)
Mounting: With ESL-SC straight connector or ESL-VC vertical hinged connector (not included)

Other widths, radii and unequal branch angles available on request.
