Bend 90˚ Horiziontal Marine Ladder 200mm HDG
Variations
Product information
| Change of direction : | Horizontal |
|---|---|
| Type of side joist : | Flat profile |
| Side perforation : | No |
| Type of rung : | Perforated profile |
| Angle : | 90° |
| Bend model : | Smooth bend |
| Hinging : | No |
| Suitable for cable ladder height : | 30 mm |
| Suitable for cable ladder width : | 200 mm |
| Model : | Without connector |
| Inner radius : | 150 mm |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
The Eurostrut ESL-B 90° bend is a horizontal bend for the ESL cable ladder, also referred to as a marine ladder, and is used to create directional changes within cable routes. The bend allows controlled routing of cables without interruption of the support structure, maintaining continuous cable support and ventilation. It is applied in utility buildings, industrial installations, machine construction, and marine environments.
The bend is manufactured from cold-formed carbon steel and is standard hot-dip galvanized in accordance with NEN-EN-ISO 1461. The very high zinc coating thickness of approx. 85–120 µm provides enhanced and durable corrosion protection, making the marine ladder bend suitable for long-term use in outdoor environments and industrial or marine conditions with increased corrosion exposure. The cable support system is designed and manufactured in accordance with IEC 61537 / NEN-EN 61537 and is applicable within installations compliant with NEN 1010.

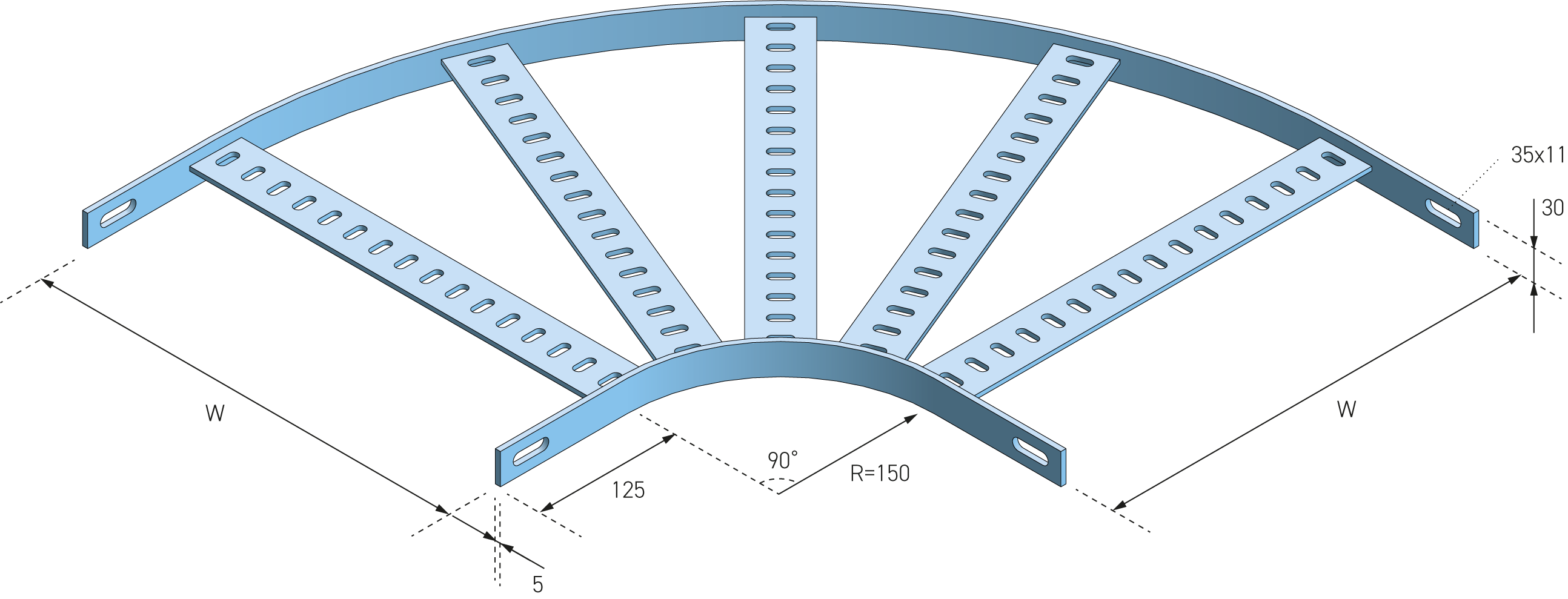

The construction is aligned with the ESL cable ladder system and consists of an open ladder structure with perforated rungs (20 x 8.5 mm) and flat side rails without perforation, ensuring consistent cable support across the full bend radius. The standard bend radius is 150 mm. Connection to straight ladder sections is achieved using splice plates ESL-SC or ESL-VC (not included). The ESL-B bend is fully compatible with the Eurostrut ESL system, including divider plates (ESL-DIV), mounting brackets (ESL-HC), angle bolts (ESL-HB), and fixing sets (ESL-SB, EFS).
Technical Specifications
- Product Type: Horizontal 90° bend for lightweight cable ladder (marine ladder)
- System: ESL
- Bend Angle: 90°
- Bend Radius: 150 mm
- System Height: 30 mm
- System Width: 75 to 500 mm
- Side Rail Thickness: 5 mm
- Rung Thickness: 4 mm
- Rung Perforation: 20 x 8.5 mm
- Material: Carbon steel
- Surface Treatment: Hot-dip galvanized according to NEN-EN-ISO 1461
- Zinc Coating Thickness: Approx. 85–120 µm
- Connection Method: With splice plates ESL-SC or ESL-VC (not included)
- Standard: IEC 61537 / NEN-EN 61537
- Installation Standard: NEN 1010
- Side Rail Design: Flat profile, without perforation
- Construction Type: Open ladder structure
Typical Applications
- Horizontal direction changes in cable routes
- Cable routing in utility and technical installations
- Industrial installations and machine construction
- Marine and offshore applications
- Continuous cable support in bends
Available Variants
- ESL-B-H: Hot-dip galvanized version (standard) for general indoor and outdoor applications
- ESL-B-S304: Stainless steel 304 (A2) for corrosion-sensitive environments
- ESL-B-S316: Stainless steel 316L (A4) for heavy and chloride-rich environments
Additional Products
For a complete installation, Eurostrut offers various accessories, such as:
- Straight Ladders: ESL cable ladder sections
- Connections: ESL-SC splice plates, ESL-VC vertical splice plates
- Separation: ESL-DIV divider plates
- Mounting: ESL-HC mounting brackets, ESL-HB angle bolts
- Fixing Sets: ESL-SB and EFS bolt sets
These components ensure a safe, compatible, and maintainable installation.
Other widths and radii available on request.
