Straight Connector Marine Ladder SS316
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information

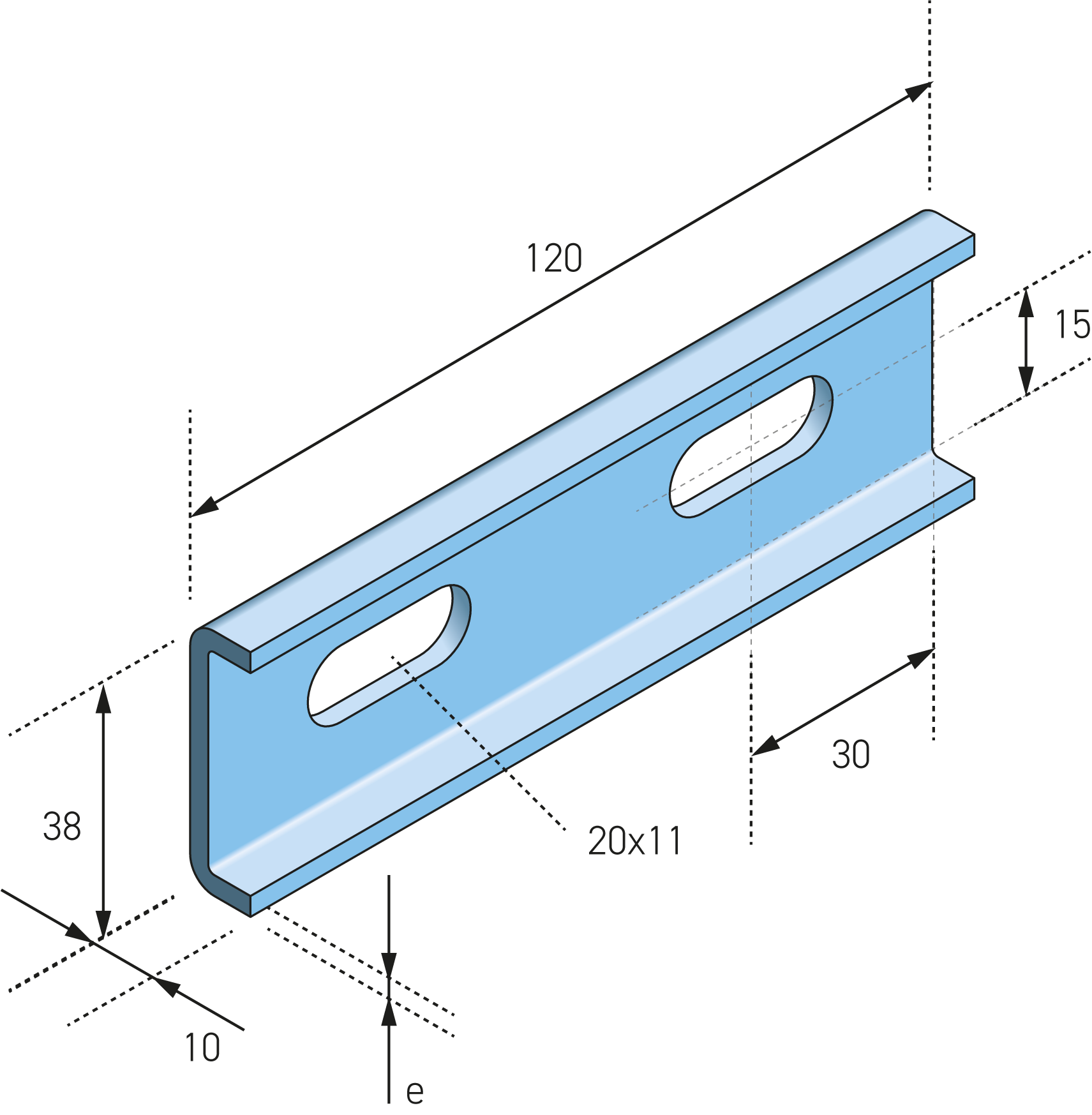

| Model : | Longitudinal joint |
|---|---|
| Hinged joint horizontal : | No |
| Type of connection : | Screw connector |
| Suitable for cable ladder : | Yes |
| Suitable for cable support system height : | 30 - 30 mm |
| Length : | 120 mm |
| Material : | Stainless steel |
| Stainless steel, pickled : | No |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Other |
| Colour : | Stainless steel |

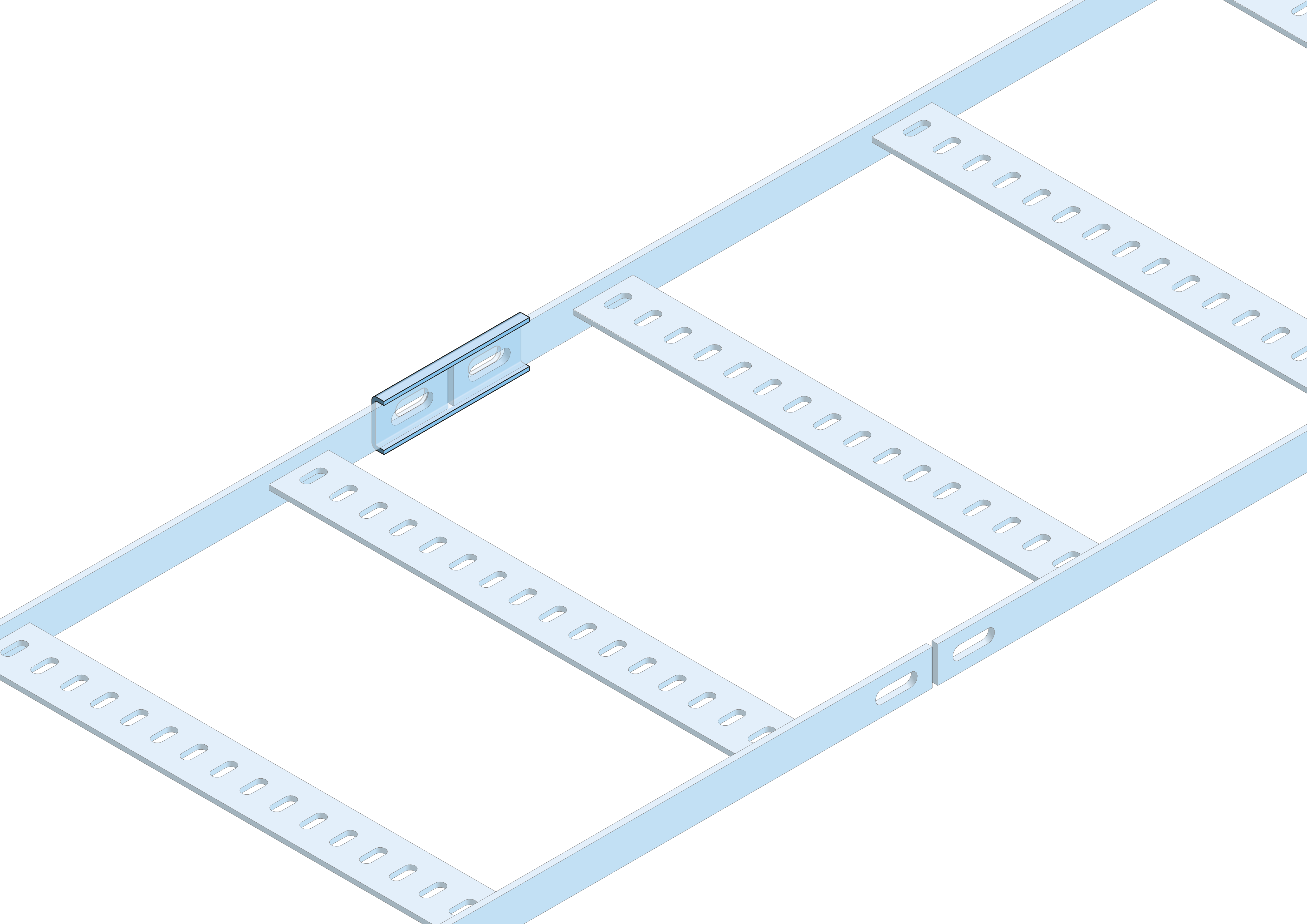

The Eurostrut ESL-SC splice plate is a connection plate for the ESL cable ladder, also referred to as a marine ladder, and is used for straight connection of two ESL ladder sections in longitudinal direction. The splice plate provides a mechanically stable and aligned connection within the cable support system, maintaining the structural continuity of the ladder route.
The splice plate is manufactured from cold-formed carbon steel and is standard hot-dip galvanized in accordance with NEN-EN-ISO 1461. The very high zinc coating thickness of approx. 85–120 µm provides enhanced and durable corrosion protection, making the splice plate suitable for long-term use in outdoor environments and industrial or marine conditions with increased corrosion exposure.
The construction is specifically designed to match the geometry of the ESL marine ladder system and enables direct alignment and connection of adjacent ladder sections. Installation is carried out using the included ESL-SB fixing sets (M10x20). Each splice plate is supplied complete with 2 fixing sets as standard. The ESL-SC splice plate is fully compatible with all ESL cable ladder widths and other ESL system components.
Technical Specifications
- Product Type: Splice plate for cable ladder (marine ladder)
- System: ESL
- Application: Straight connection of ESL ladder sections
- Material: Carbon steel
- Surface Treatment: Hot-dip galvanized according to NEN-EN-ISO 1461
- Zinc Coating Thickness: Approx. 85–120 µm
- Installation Method: Mechanical connection with bolt sets
- Included: 2x ESL-SB fixing set M10x20
- Compatibility: Suitable for all ESL cable ladder widths
Typical Applications
- Longitudinal connection of straight ESL cable ladder sections
- Extension of cable routes
- Assembly of continuous ladder runs
- Connections in industrial and marine installations
- System construction in corrosion-exposed environments
Available Variants
- ESL-SC-H: Hot-dip galvanized version (standard) for general indoor and outdoor applications
- ESL-SC-S304: Stainless steel 304 (A2) for corrosion-sensitive environments
- ESL-SC-S316: Stainless steel 316L (A4) for heavy and chloride-rich environments
Additional Products
For a complete installation, Eurostrut offers various accessories, such as:
- Cable Ladders: ESL cable ladder sections
- Bends: ESL-B horizontal bends
- Mounting Brackets: ESL-HC mounting brackets
- Vertical Connections: ESL-VC vertical splice plates
These components ensure a safe, compatible, and maintainable installation.
Other versions available on request.
