Bend Vertical Marine Ladder 300mm SS304

Variations

Product number

ESL-SV-075H

For ladder width

Angle

Radius

For ladder width:

75 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-100H

For ladder width:

100 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-150H

For ladder width:

150 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-200H

For ladder width:

200 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-250H

For ladder width:

250 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-300H

For ladder width:

300 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-400H

For ladder width:

400 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-500H

For ladder width:

500 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-075S316

For ladder width

Angle

Radius

For ladder width:

75 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-100S316

For ladder width:

100 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-150S316

For ladder width:

150 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-200S316

For ladder width:

200 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-250S316

For ladder width:

250 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-300S316

For ladder width:

300 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-400S316

For ladder width:

400 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-500S316

For ladder width:

500 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-075S304

For ladder width

Angle

Radius

For ladder width:

75 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-100S304

For ladder width:

100 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-150S304

For ladder width:

150 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-200S304

For ladder width:

200 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-250S304

For ladder width:

250 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-300S304

For ladder width:

300 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-400S304

For ladder width:

400 mm

Angle:

90°

Radius:

150 mm

Product number

ESL-SV-500S304

For ladder width:

500 mm

Angle:

90°

Radius:

150 mm

Product information

Change of direction :	Rising/descending
Type of side joist :	Flat profile
Side perforation :	No
Type of rung :	Perforated profile
Angle :	90°
Bend model :	Smooth bend
Hinging :	No
Suitable for cable ladder height :	30 mm
Suitable for cable ladder width :	300 mm
Model :	Without connector
Inner radius :	150 mm
Material :	Stainless steel
Material quality :	Stainless steel 304 (1.4301)
Surface protection :	Untreated
Colour :	Stainless steel

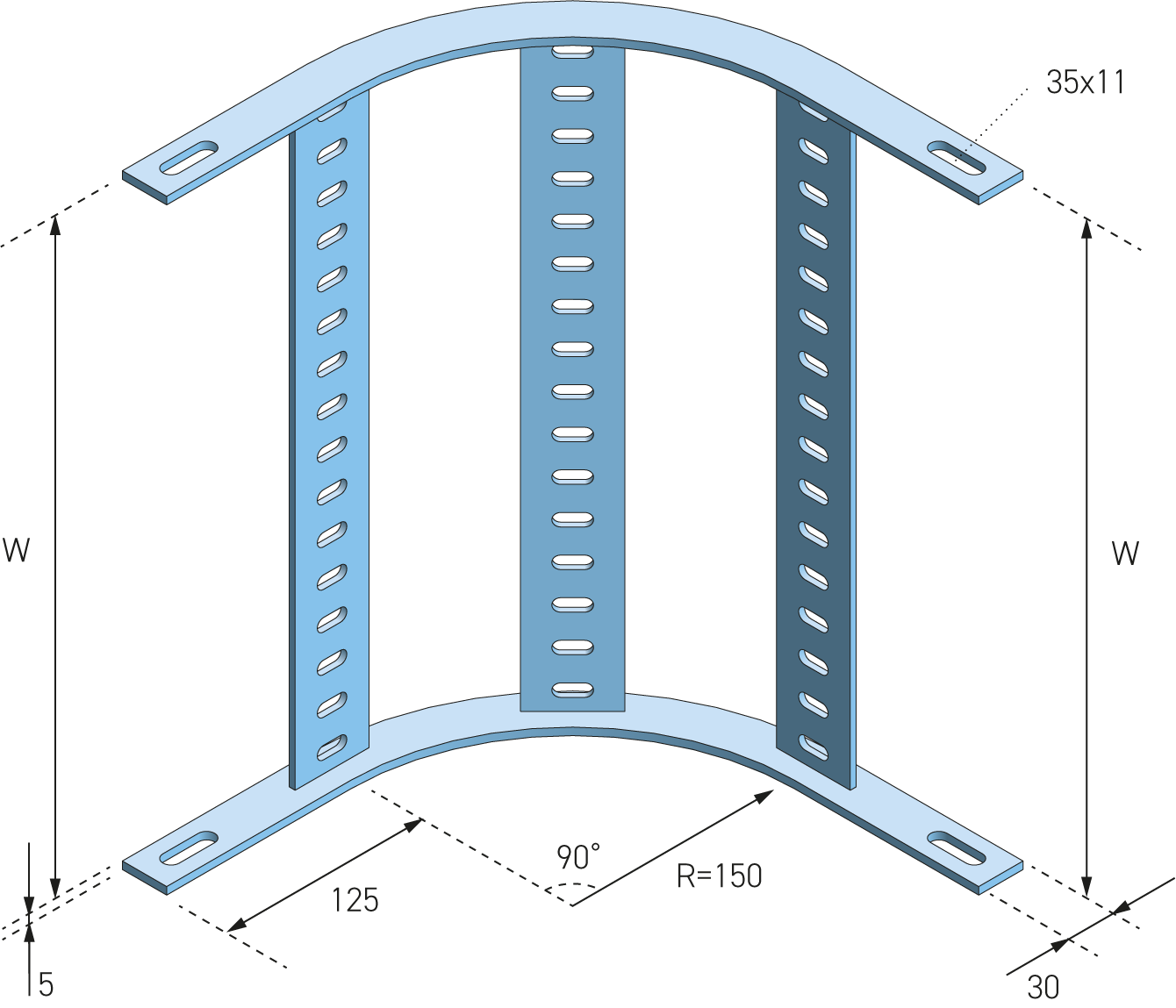

The ESL-SV-S304 is a 90° inside and outside riser for marine ladders – ideal for navigating height differences in cable routing systems.

Manufactured from stainless steel AISI 304 with a smooth, corrosion-resistant surface. Suitable for indoor and mildly aggressive outdoor environments.

This piece features an inner radius of 150 mm and is suitable for marine ladders with a height of 30 mm and widths up to 400 mm.

Material: Stainless steel AISI 304
Finish: Untreated (smooth stainless steel surface)
Type: 90° inside and outside riser
Inner radius: 150 mm
Suitable for ladder height: 30 mm
Width: up to 500 mm (other sizes on request)
Mounting: With ESL-SC straight connector or ESL-VC vertical hinged connector (not included)

Other widths, radii and angles available on request.
