Flexible Bend Cable Tray ECT100 100mm HDG

Variations

Product number

ECTFB100-100-HDG

Angle

For tray width

Suitable for cable tray height

Angle:

Adaptable

For tray width:

100 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-150-HDG

Angle:

Adaptable

For tray width:

150 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-200-HDG

Angle:

Adaptable

For tray width:

200 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-300-HDG

Angle:

Adaptable

For tray width:

300 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-400-HDG

Angle:

Adaptable

For tray width:

400 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-500-HDG

Angle:

Adaptable

For tray width:

500 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-600-HDG

Angle:

Adaptable

For tray width:

600 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-100-SS316

Angle

For tray width

Suitable for cable tray height

Angle:

Adaptable

For tray width:

100 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-150-SS316

Angle:

Adaptable

For tray width:

150 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-200-SS316

Angle:

Adaptable

For tray width:

200 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-300-SS316

Angle:

Adaptable

For tray width:

300 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-400-SS316

Angle:

Adaptable

For tray width:

400 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-500-SS316

Angle:

Adaptable

For tray width:

500 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-600-SS316

Angle:

Adaptable

For tray width:

600 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-100-SS304

Angle

For tray width

Suitable for cable tray height

Angle:

Adaptable

For tray width:

100 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-150-SS304

Angle:

Adaptable

For tray width:

150 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-200-SS304

Angle:

Adaptable

For tray width:

200 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-300-SS304

Angle:

Adaptable

For tray width:

300 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-400-SS304

Angle:

Adaptable

For tray width:

400 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-500-SS304

Angle:

Adaptable

For tray width:

500 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-600-SS304

Angle:

Adaptable

For tray width:

600 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-100-PG

Angle

For tray width

Suitable for cable tray height

Angle:

Adaptable

For tray width:

100 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-150-PG

Angle:

Adaptable

For tray width:

150 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-200-PG

Angle:

Adaptable

For tray width:

200 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-300-PG

Angle:

Adaptable

For tray width:

300 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-400-PG

Angle:

Adaptable

For tray width:

400 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-500-PG

Angle:

Adaptable

For tray width:

500 mm

Suitable for cable tray height:

100 mm

Product number

ECTFB100-600-PG

Angle:

Adaptable

For tray width:

600 mm

Suitable for cable tray height:

100 mm

Product information

Change of direction :	Horizontal
Angle :	Adaptable
Construction type :	Vertical adjustable bend complete
Bend model :	Other
Suitable for connection with screws :	Yes
Suitable for screwless connection :	No
With cover :	No
Inner radius :	102 mm
Suitable for cable tray height :	100 mm
Suitable for cable tray width :	100 mm
Material thickness :	1 mm
Side perforation :	Yes
Bottom perforation :	Yes
Model :	Integrated connector
Material :	Steel
Material quality :	Rustproof and acidproof steel
Surface protection :	Hot-dip galvanised
Colour :	Zinc

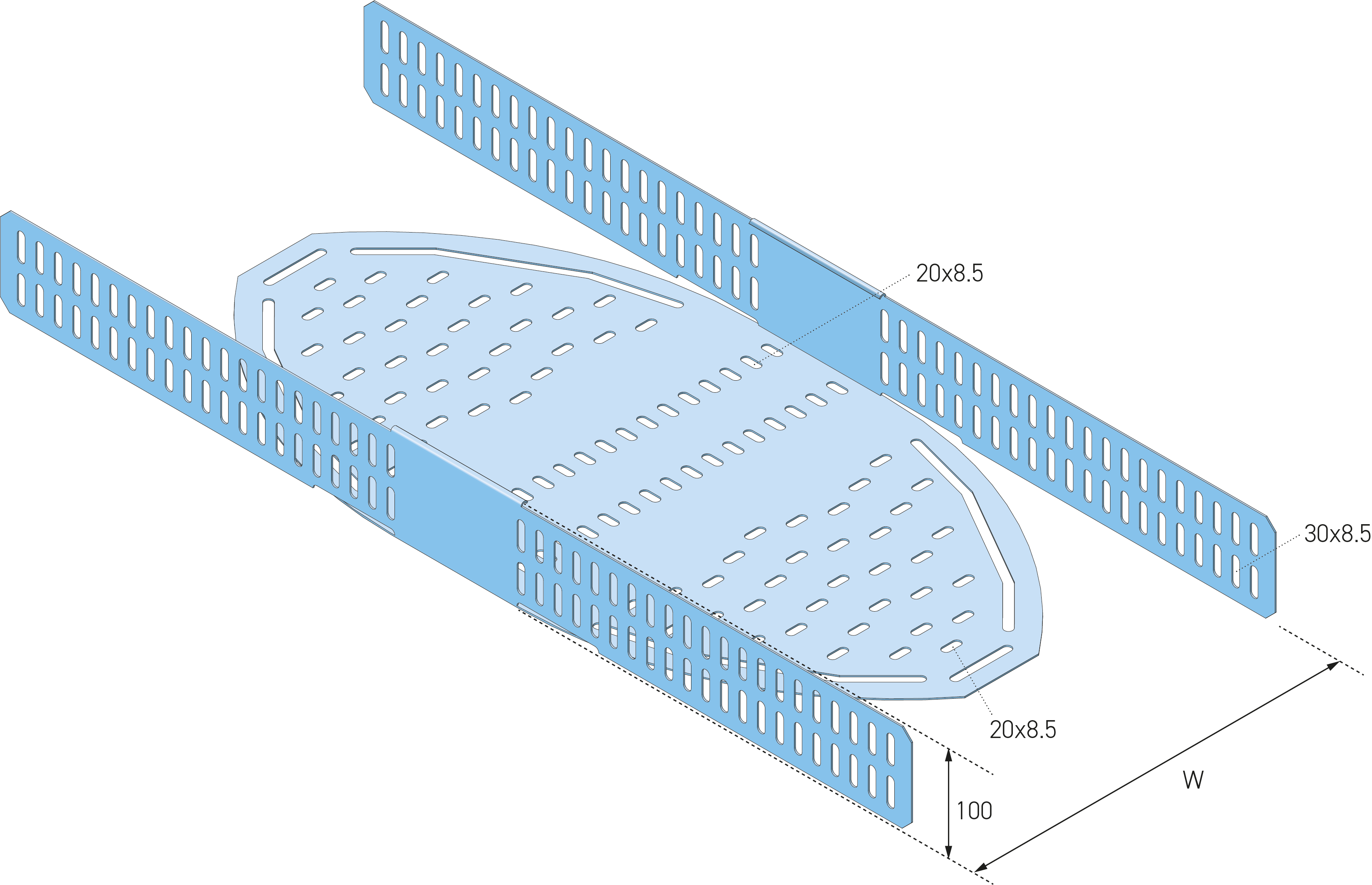

Flexible Bend for cable tray ECT100 with sizes H = 100 mm, W = 95 mm, E (thickness) = 1.0 mm, flexibel, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, including 16x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer).

Flexible bend ECTFB100 is an accessory for the ECT100 cable tray system and is used to create variable horizontal branches within cable routes. This flexible bend allows direction changes to be continuously adjusted between 0° and 90°, enabling precise adaptation to the desired cable routing without fixed bend angles. This accessory is suitable for heavy industrial, utility, and infrastructure installations.

The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full surface protection, including cut edges and fixing holes. This makes the accessory suitable for applications with increased corrosive and mechanical loads, in accordance with IEC 61537 and installations compliant with NEN 1010.

The flexible bend is designed as a horizontally adjustable bend with an angle range from 0° to 90° and a standard radius of approximately 102 mm. The execution is equipped with integrated connectors and is supplied including 16x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer), enabling fast and stable installation. The accessory is fully compatible with ECT100 cable trays and other system components.

Technical Specifications

Product type: Flexible horizontal bend for cable tray
System: ECT100
System height: 100 mm
System width: 100 to 600 mm
Material thickness: 1.0 to 1.5 mm
Angle: 0° to 90°
Radius: approx. 102 mm
Connector perforation: 25 x 8.5 mm
Bottom perforation: 25 x 8.5 mm
Material: Carbon steel
Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
Zinc coating thickness: minimum 60 µm
Connection method: Bolted
Execution: With integrated connectors, including 16x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer)
Standards: IEC 61537, applicable within installations compliant with NEN 1010
Direction change: Horizontal
Construction type: Flexible bend
Bend type: Smooth bend
Top cover: No
Side perforation: No
Bottom perforation: Yes

Typical Applications

Variable horizontal branching in cable tray systems
Cable routing with adjustable direction changes
Heavy industrial and outdoor installations
Utility and infrastructure cable routes

Available Material Variants

HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.

Complementary Products

For a complete installation within the ECT100 system, the following components are relevant:

Cable trays: ECT100 cable trays in various widths
Couplers: For longitudinal connections
Brackets: Wall, ceiling, and trapeze brackets
Covers and clamps: For protection and fixation

These components together ensure a safe, compatible, and maintenance-friendly installation.

Other widths, radii and angles available on request.
