Hold Down Clamp Marine Ladder M10 HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Suitable for : | Other |
|---|---|
| Model : | Mounting bracket |
| With screw accessories : | No |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
The Eurostrut ESL-HC mounting clamp is a fixing bracket for the ESL cable ladder, also referred to as a marine ladder, and is used for direct mounting of cable ladders to wall, ceiling, or steel structures. The mounting clamp provides stable and mechanically reliable support of the ladder route and is designed for use in both horizontal and vertical installations.
The mounting clamp is manufactured from cold-formed carbon steel and is standard hot-dip galvanized in accordance with NEN-EN-ISO 1461. The very high zinc coating thickness of approx. 85–120 µm provides enhanced and durable corrosion protection, making the fixing bracket suitable for long-term use in outdoor environments and industrial or marine conditions with increased corrosion exposure.
The construction is specifically designed to match the geometry of the ESL marine ladder system and provides direct mechanical connection to the side rails of the ladder. Installation is carried out using an M10 threaded connection. Fixing hardware is not included as standard. The ESL-HC mounting clamp is fully compatible with all ESL cable ladder widths and can be combined with standard Eurostrut fasteners and mounting materials for a uniform system installation.

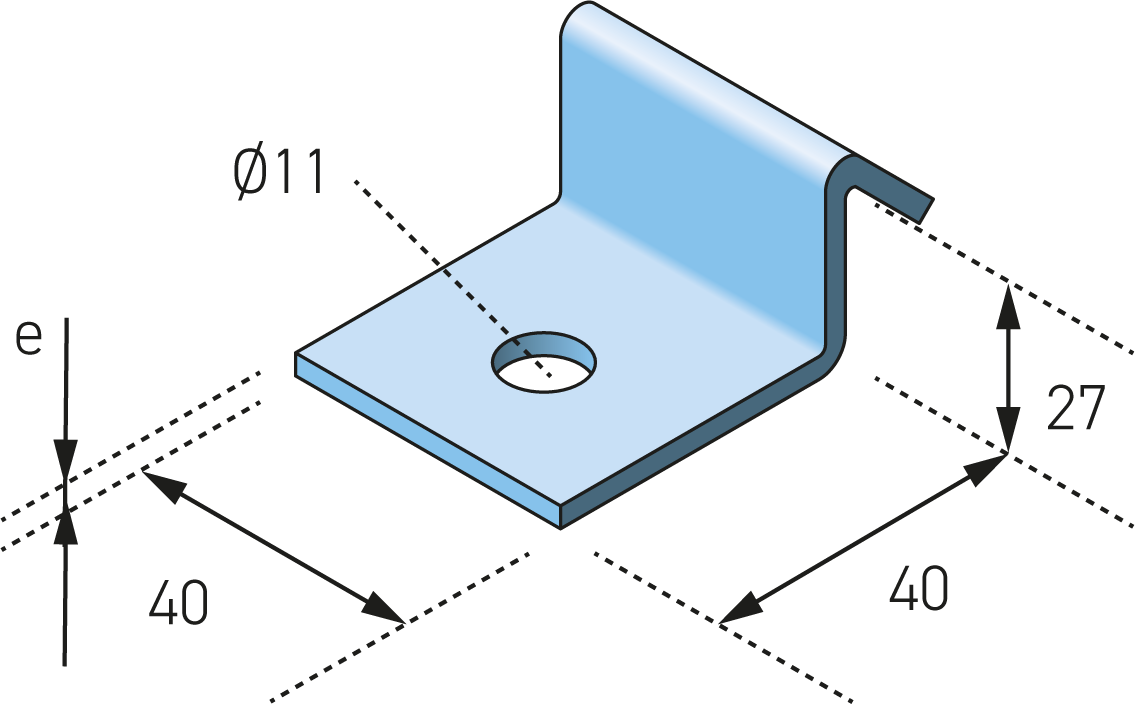

Technical Specifications
- Product Type: Mounting clamp / fixing bracket for cable ladder (marine ladder)
- System: ESL
- Application: Fixing of ESL cable ladder to support structure
- Fixing Size: M10
- Compatible System Width: 75 to 500 mm
- Material: Carbon steel
- Surface Treatment: Hot-dip galvanized according to NEN-EN-ISO 1461
- Zinc Coating Thickness: Approx. 85–120 µm
- Installation Method: Direct fixing to wall, ceiling, or steel structure
- Fixing Hardware: Not included
Typical Applications
- Fixing ESL cable ladder to wall structures
- Mounting below ceilings or support frames
- Supporting horizontal ladder routes
- Fixing in industrial and marine installations
- System mounting in corrosion-exposed environments
Available Variants
- ESL-HC-H: Hot-dip galvanized version (standard) for general indoor and outdoor applications
- ESL-HC-S304: Stainless steel 304 (A2) for corrosion-sensitive environments
- ESL-HC-S316: Stainless steel 316L (A4) for heavy and chloride-rich environments
Additional Products
For a complete installation, Eurostrut offers various accessories, such as:
- Cable Ladders: ESL cable ladder sections
- Bends: ESL-B horizontal bends
- Connections: ESL-SC and ESL-VC splice plates
- Fasteners: ESL-HB angle bolts, ESL-SB and EFS bolt sets
These components ensure a safe, compatible, and maintainable installation.
Other versions available on request.
Datasheet_Eurostrut_ESL-HC_EN
