Hook Bolt Marine Ladder M8 HDG
Product number:
ESL-HB-H
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Suitable for : | Other |
|---|---|
| Model : | Mounting bracket |
| With screw accessories : | Yes |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |

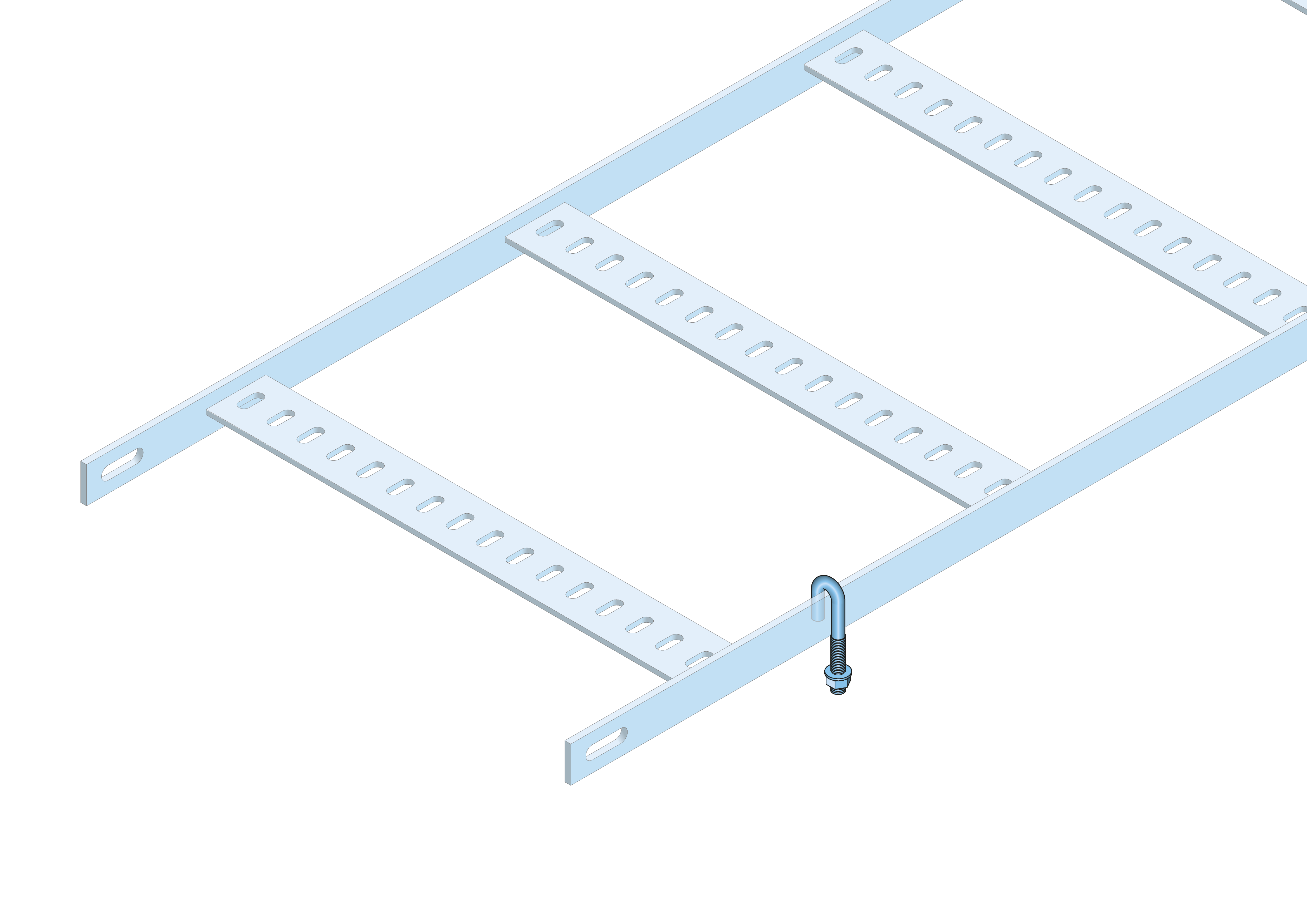

The ESL‑HB‑H is an angled bolt for marine ladders – designed to securely fasten ladder holders or accessories to support structures at an angle.
Manufactured from cold-formed steel S235JRG and hot-dip galvanized in accordance with NEN‑EN‑ISO 1461. A minimum zinc layer thickness of 70 µm ensures excellent corrosion resistance in both indoor and outdoor environments.

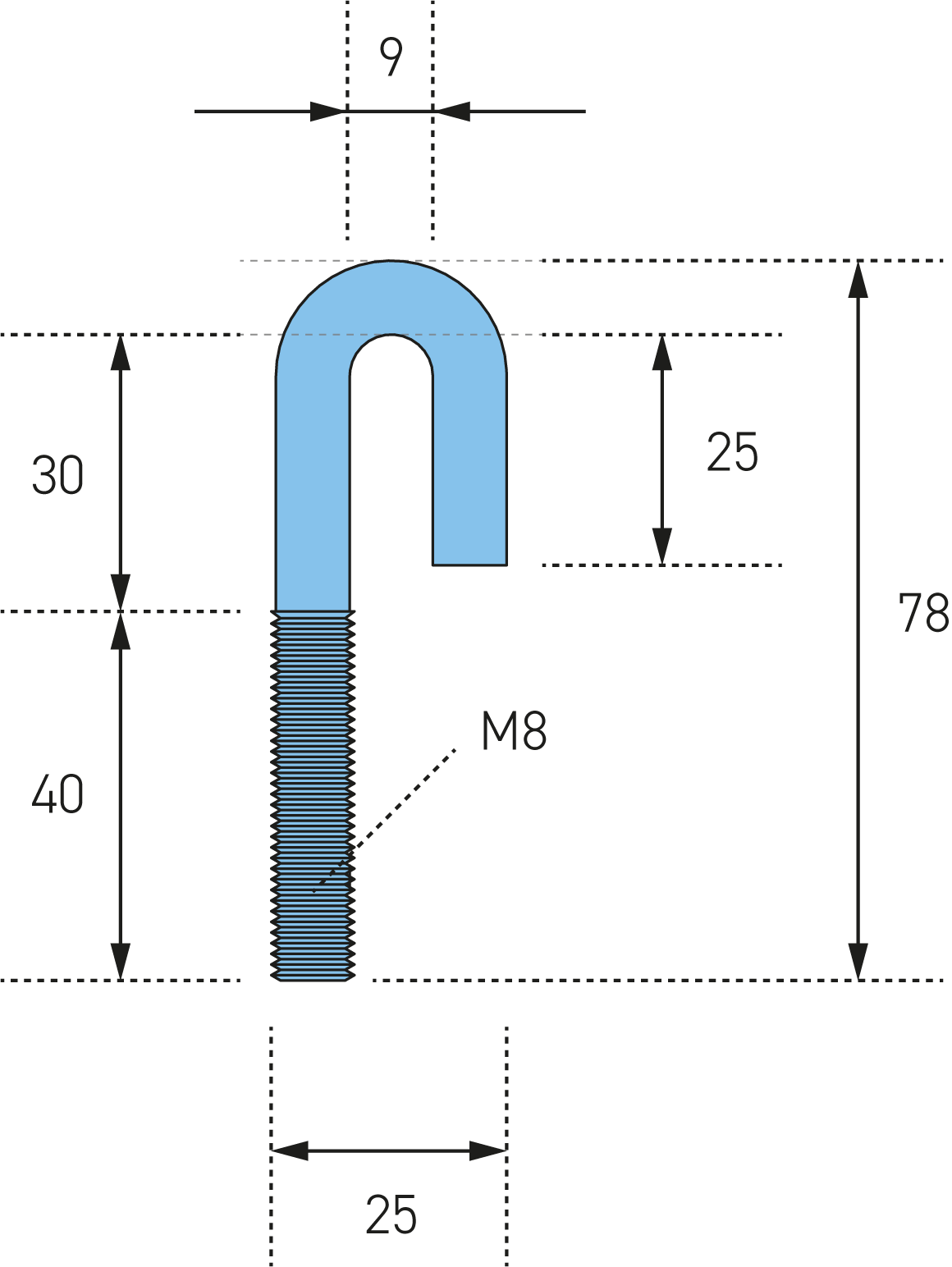

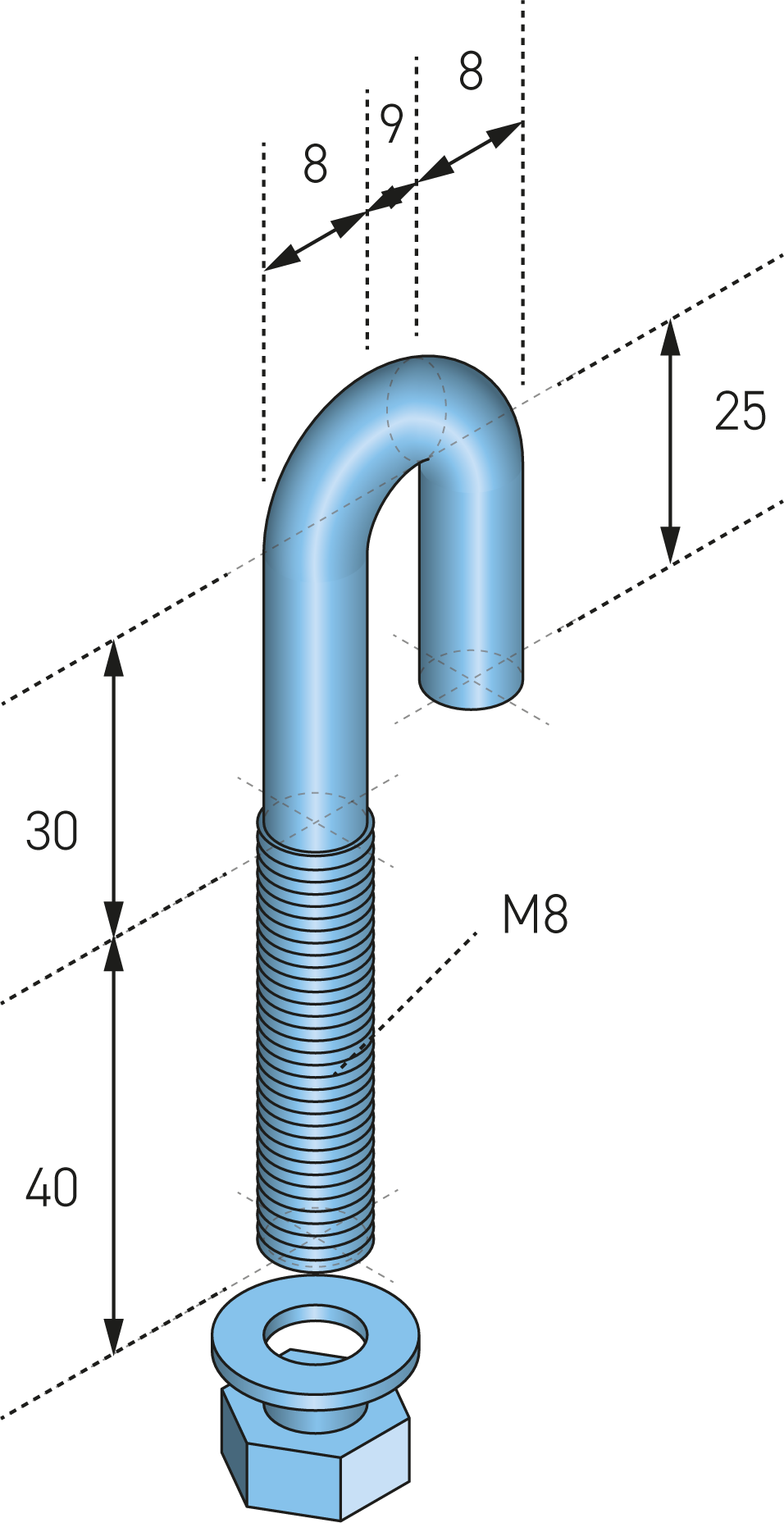

Suitable for ladder systems with a height of 30 mm. Supplied with M8 nut.
- Material: Cold-formed steel S235JRG
- Finish: Hot-dip galvanized according to NEN‑EN‑ISO 1461 (min. 70 µm)
- Application: Angled fastening of ladder parts or accessories
- Suitable for ladder height: 30 mm
- Mounting: Includes M8 nut
Other materials and configurations available on request.
