Marine Ladder 500mm HDG
Variations
Product information
| Type of side joist : | Flat profile |
|---|---|
| Side perforation : | No |
| Type of rung : | Perforated profile |
| Fixation rung : | Welded |
| Height : | 30 mm |
| Width : | 500 mm |
| Length : | 3000 mm |
| Rung centre spacing : | 250 mm |
| Material : | Steel |
| Material quality : | St 37.2 (1.0037) |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
The Eurostrut ESL cable ladder, also referred to as a marine ladder, is a lightweight cable support system with perforated rungs, designed for routing and supporting cables in installations with limited installation height. The open ladder construction enables structured cable routing with adequate ventilation and easy inspection. The system is applied in utility buildings, industrial installations, machine construction, and marine environments where compact and robust cable support is required.
The cable ladder is manufactured from cold-formed carbon steel and is standard hot-dip galvanized in accordance with NEN-EN-ISO 1461. The very high zinc coating thickness of approx. 85–120 µm provides enhanced and durable corrosion protection, making the marine ladder suitable for long-term use in outdoor environments and industrial or marine conditions with increased corrosion exposure. The cable support system is designed and manufactured in accordance with IEC 61537 / NEN-EN 61537 and is applicable within installations compliant with NEN 1010.
The construction consists of flat side rails without perforation and perforated rungs (20 x 8.5 mm) welded to the rails, ensuring a rigid and torsion-resistant structure. The rung spacing is 250 mm center-to-center. Connection between ladder sections is achieved using splice plates ESL-SC or ESL-VC (not included). Installation can be carried out by direct fixing to the supporting structure or by using mounting brackets. The ESL cable ladder is compatible with the Eurostrut system range, including bends (ESL-B), divider plates (ESL-DIV), mounting brackets (ESL-HC), angle bolts (ESL-HB), and fixing sets (ESL-SB, EFS).

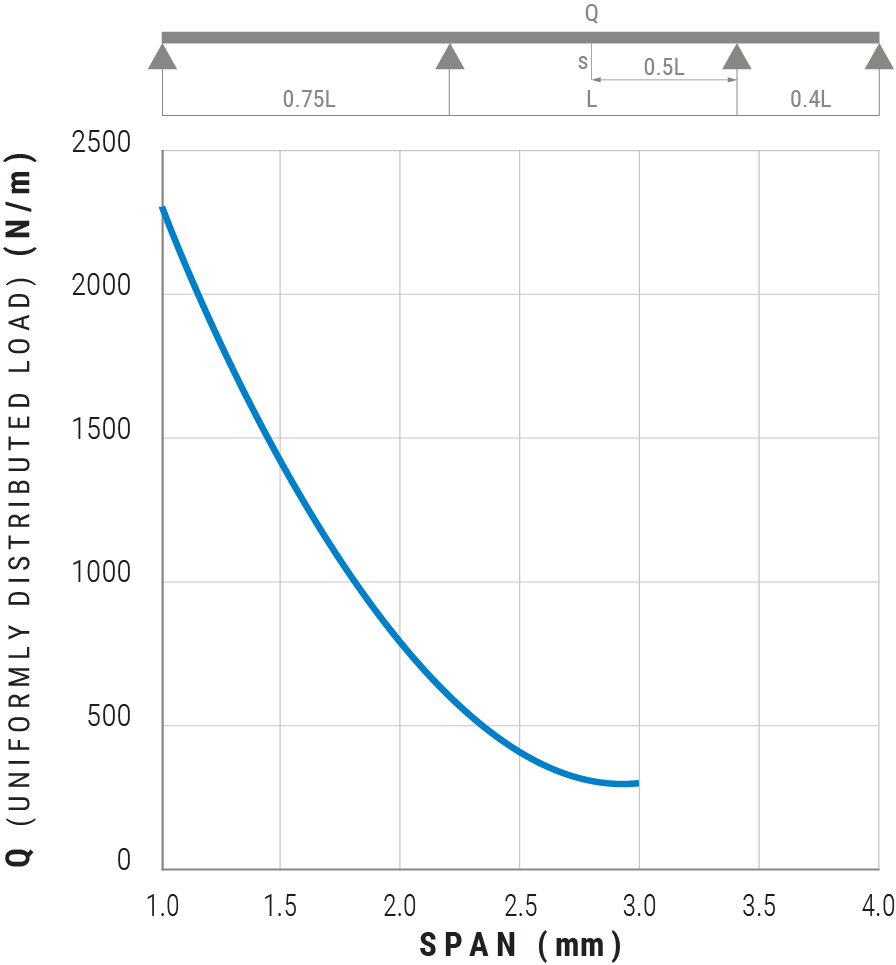

Technical Specifications
- Product Type: Lightweight cable ladder with perforated rungs (marine ladder)
- System: ESL
- System Height: 30 mm
- System Width: 75 to 500 mm
- Length: 3000 mm
- Side Rail Thickness: 5 mm
- Rung Thickness: 4 mm
- Rung Spacing: 250 mm
- Rung Perforation: 20 x 8.5 mm
- Material: Carbon steel
- Surface Treatment: Hot-dip galvanized according to NEN-EN-ISO 1461
- Zinc Coating Thickness: Approx. 85–120 µm
- Connection Method: With splice plates ESL-SC or ESL-VC (not included)
- Standard: IEC 61537 / NEN-EN 61537
- Installation Standard: NEN 1010
- Side Rail Design: Flat profile, without perforation
- Construction Type: Open ladder structure
- Installation: Direct fixing to structure or with mounting brackets
Typical Applications
- Cable routing in installations with limited installation height
- Utility buildings and technical rooms
- Industrial installations and machine construction
- Marine and offshore applications
- Cable routes requiring ventilation and accessibility
Available Variants
- ESL-H: Hot-dip galvanized version (standard) for general indoor and outdoor applications
- ESL-S304: Stainless steel 304 (A2) for corrosion-sensitive environments
- ESL-S316: Stainless steel 316L (A4) for heavy and chloride-rich environments
Additional Products
For a complete installation, Eurostrut offers various accessories, such as:
- Connections: ESL-SC splice plates, ESL-VC vertical splice plates
- Direction changes: ESL-B bends
- Separation: ESL-DIV divider plates
- Mounting: ESL-HC mounting brackets, ESL-HB angle bolts
- Fixing sets: ESL-SB and EFS bolt sets
These components ensure a safe, compatible, and maintainable installation.
Other widths and lengths available on request.
