Cable Tray 100x100mm HDG Non Perforated
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Height : | 100 mm |
|---|---|
| Width : | 100 mm |
| Material thickness : | 1 mm |
| Length : | 3000 mm |
| Working length : | 3000 mm |
| With cover : | No |
| Side perforation : | No |
| Bottom perforation : | No |
| Model : | Without connector |
| Type of connection : | Screwed |
| Material : | Steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

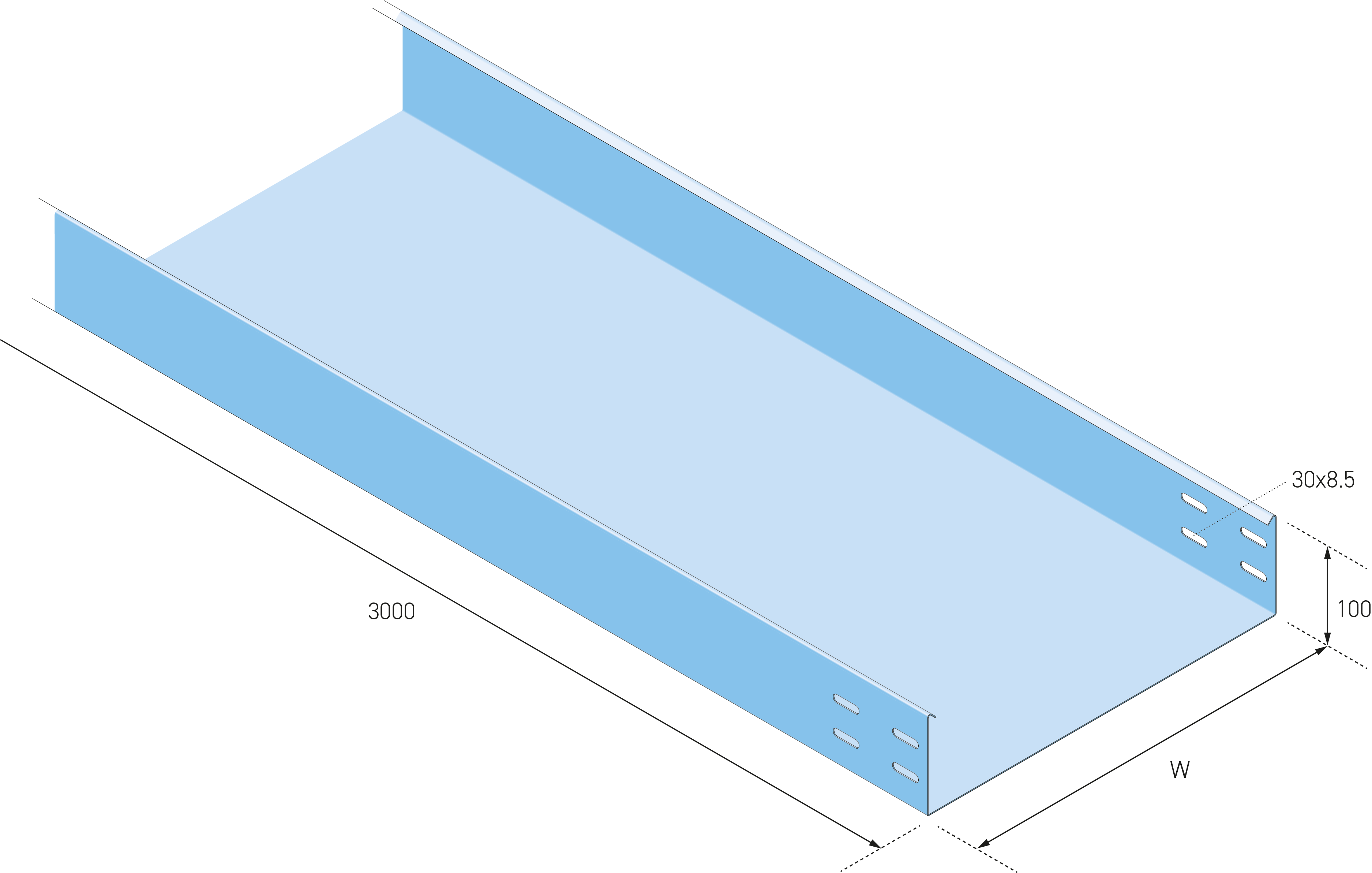

Cable Tray with sizes H = 100mm, W = 100mm, E (thickness) = 1,0mm, L = 3000mm, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, minimum layer thickness 60 µm, non perforated.
Cable tray ECT100-NP is a closed cable support system for routing and supporting power and data cables in heavy industrial, utility, and infrastructure installations. The non-perforated design is specifically intended for applications where additional mechanical protection of cables is required or where the ingress of dirt, dust, and moisture must be minimized. The cable tray is suitable for wall and ceiling mounting in robust installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full surface protection, including cut edges. This makes the system suitable for applications with increased mechanical loads and corrosive influences, in accordance with IEC 61537 and installations compliant with NEN 1010.

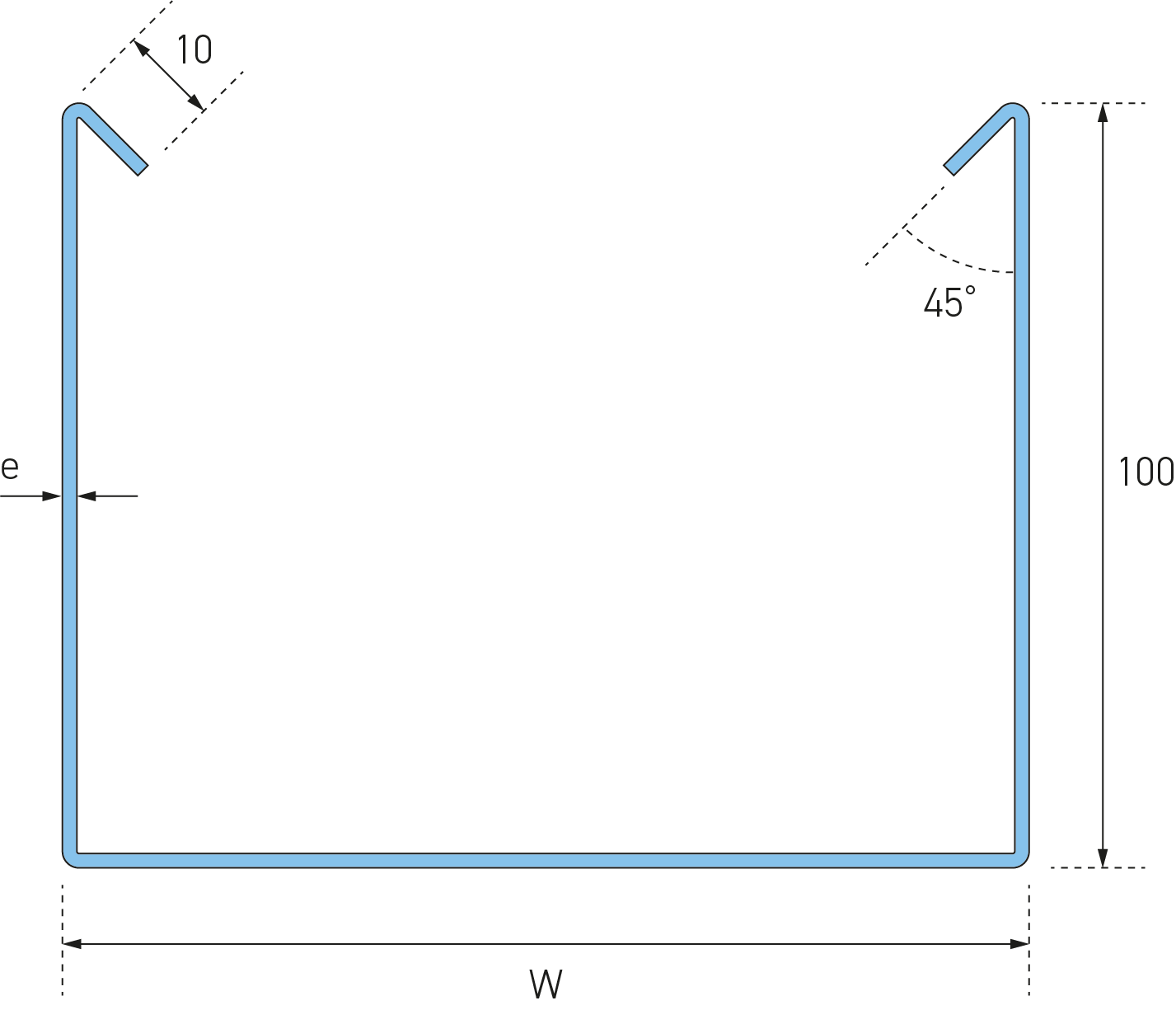

The cable tray features a closed U-profile without bottom perforation, resulting in increased cable protection and a rigid construction. The execution is compatible with the Eurostrut ECT100 system and can be extended with associated couplers, bends, T-pieces, outside risers, and covers. Installation is possible using standard wall, ceiling, and trapeze brackets from the Eurostrut range.
Technical Specifications
- Product type: Closed cable tray, non-perforated
- System: ECT100-NP
- System height: 100 mm
- System width: 100 to 600 mm
- Material thickness: 0.8 to 1.2 mm
- Length: 3000 mm
- Effective length: 3000 mm
- Side perforation: 30 x 8.5 mm (for mounting)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Execution: Closed U-profile without bottom perforation
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
- Top cover: No
- Side perforation: No (for mounting only)
- Bottom perforation: No
- Model: Without connector
- Connection method: Bolted
Typical Applications
- Cable routes requiring increased mechanical protection
- Installations where ingress of dirt, dust, and moisture must be limited
- Heavy industrial and outdoor installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT100 system, the following components are relevant:
- Couplers: For longitudinal connections of cable trays
- Bends and accessories: Horizontal and vertical direction changes
- Brackets: Wall, ceiling, and trapeze brackets
- Covers and clamps: For protection and fixation
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths and lengths available on request.
