Cable Tray Perforated 60x100mm HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Height : | 60 mm |
|---|---|
| Width : | 100 mm |
| Material thickness : | 1 mm |
| Length : | 3000 mm |
| Working length : | 3000 mm |
| With cover : | No |
| Side perforation : | Yes |
| Bottom perforation : | Yes |
| Model : | Without connector |
| Type of connection : | Screwed |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

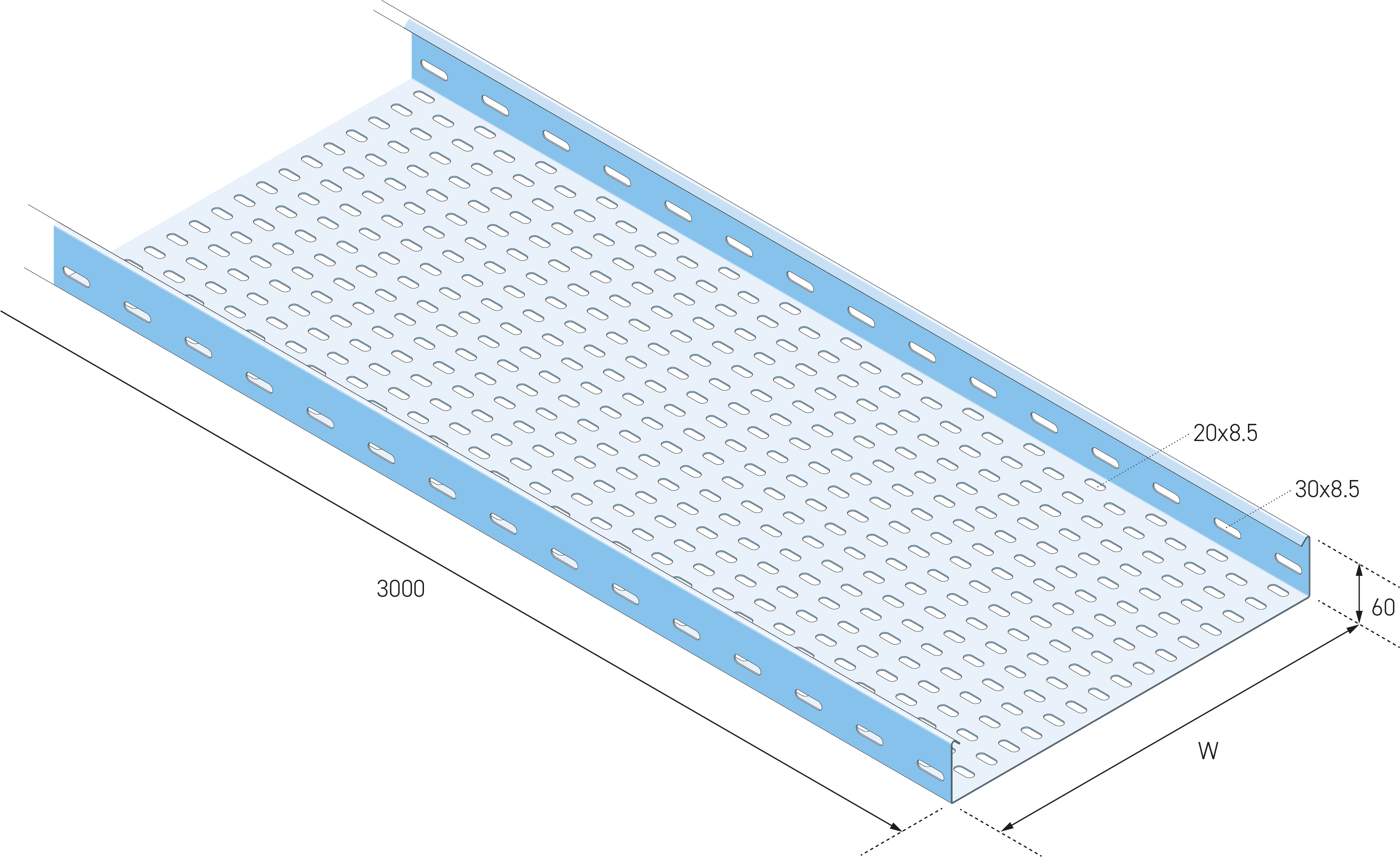

Cable Tray with sizes H = 60mm, W = 100mm, E (thickness) = 1,0mm, L = 3000mm, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, minimum layer thickness 60 µm, perforated.
Cable tray ECT60 is an open cable support system for routing and supporting power and data cables in heavy industrial, utility, and infrastructure installations. The cable tray is suitable for wall and ceiling mounting and is applied where a robust, clearly arranged, and well-ventilated cable route is required. Due to its open, perforated design, the cable installation remains easily accessible for inspection, extension, and maintenance.
The standard version is manufactured from hot dip galvanized carbon steel in accordance with NEN-EN-ISO 1461, wath a minimum layer thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication, ensuring full surface protection including cut edges and perforations. This makes the system suitable for applications with increased mechanical and corrosive loads, in compliance with IEC 61537 and installations according to NEN 1010.

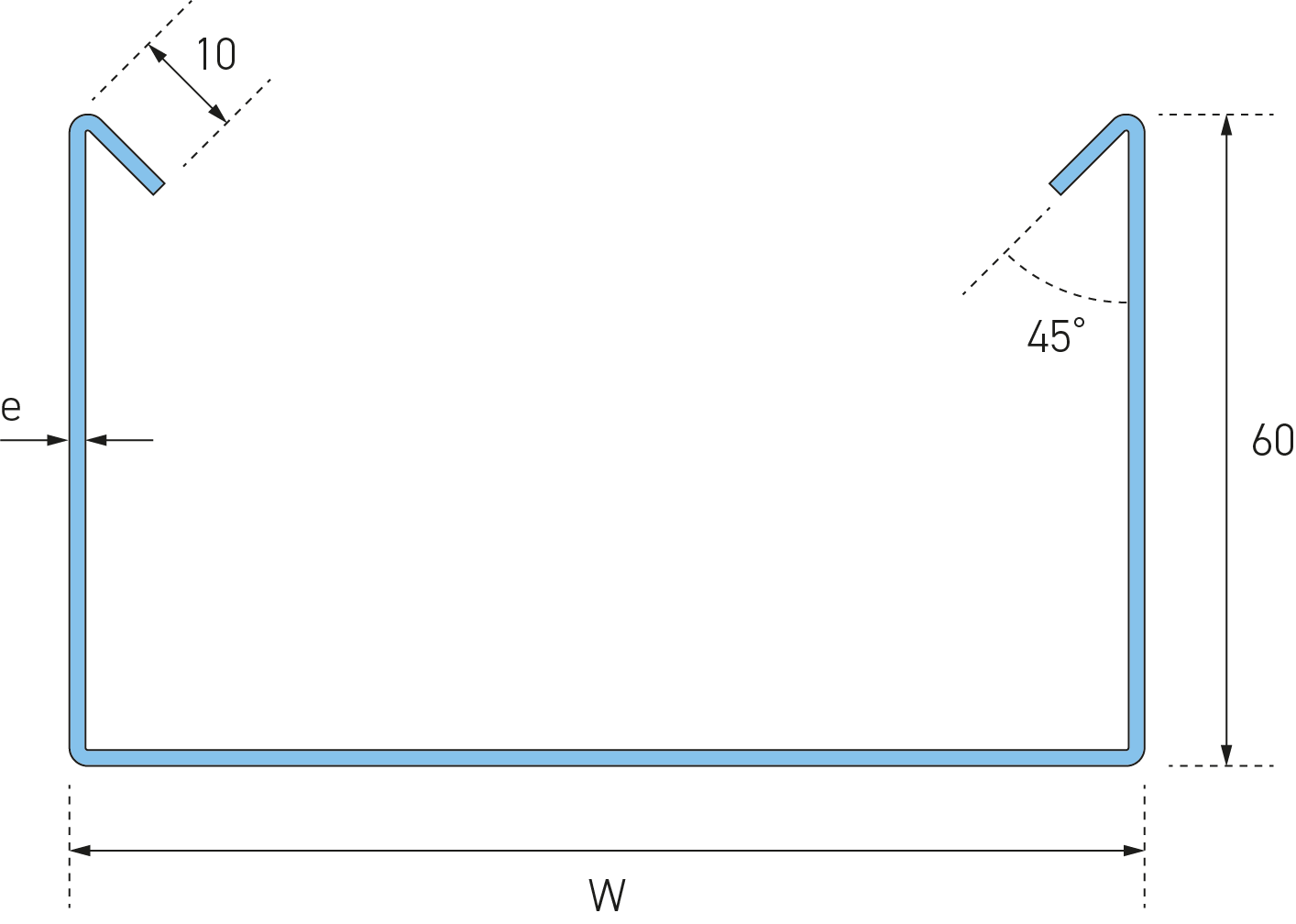

The cable tray features an open U-profile with continuous side and bottom perforation, providing flexibility for cable fastening and accessory mounting. The system is available in multiple widths and forms a modular cable support solution compatible with the Eurostrut ECT60 program. Expansion is possible using matching couplers, bends, T-pieces, risers, and covers. Installation can be carried out using standard wall, ceiling, and suspension brackets from the Eurostrut range.
Technical Specifications
- Product type: Open cable tray, perforated
- System height: 60 mm
- System width: 75 to 600 mm
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461, minimum layer thickness 60 µm
- Zinc coating thickness: minimum 60 µm
- Design: Open U-profile with side and bottom perforation
- Standards: IEC 61537, applicable within installations according to NEN 1010
Typical Applications
- Heavy industrial installations
- Outdoor installations and industrial environments
- Utility buildings and technical areas
- Cable routes with high mechanical and corrosive loads
Available Material Variants
- PG: Pre galvanized carbon steel according to NEN-EN 10346, suitable for dry indoor environments and light industrial applications.
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, wath a minimum layer thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation, Eurostrut offers a wide range of accessories, such as:
- Couplers: Straight coupling plates and expansion couplers for ECT60 systems
- Bends and branches: Horizontal and vertical bends, T-pieces, and cross pieces

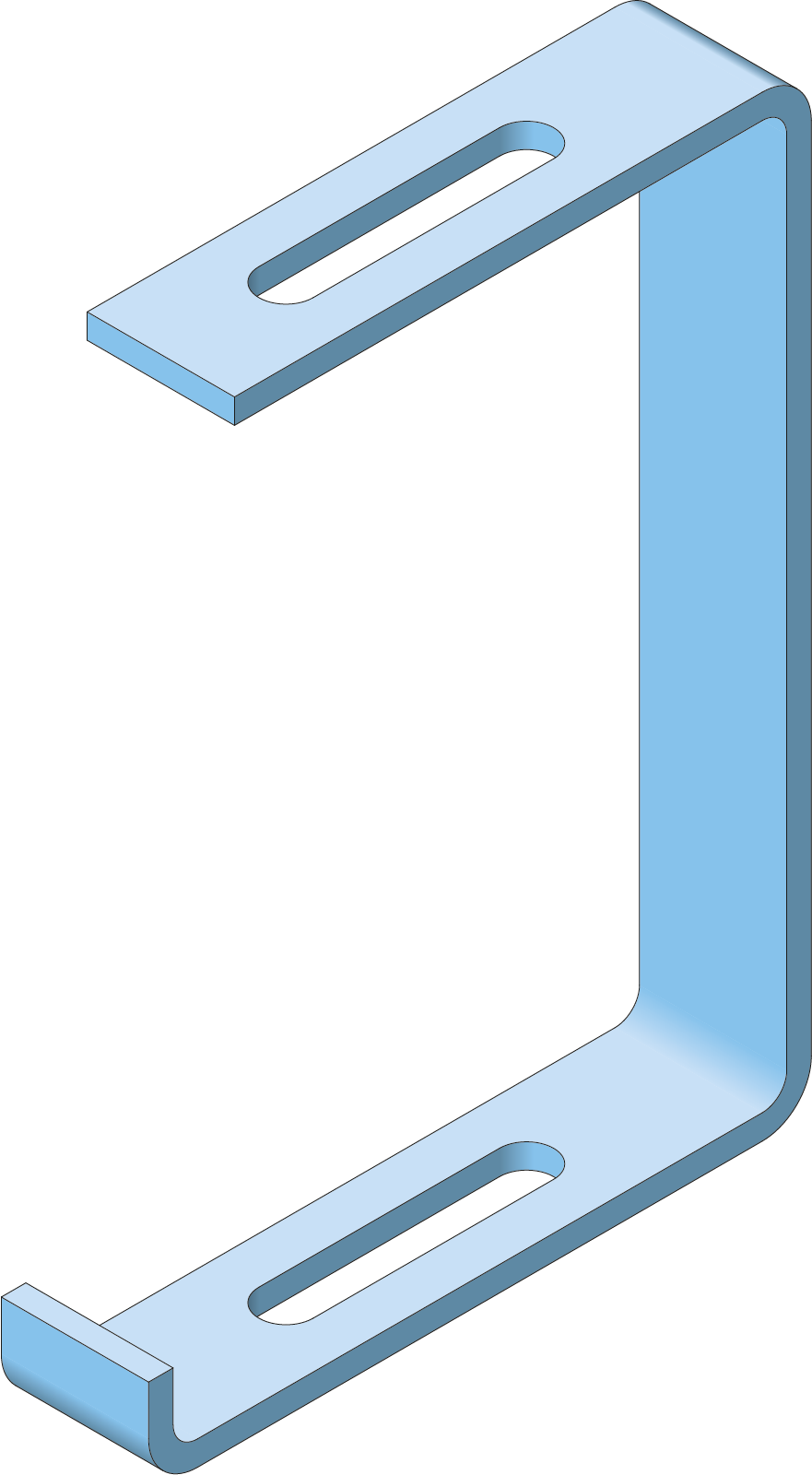

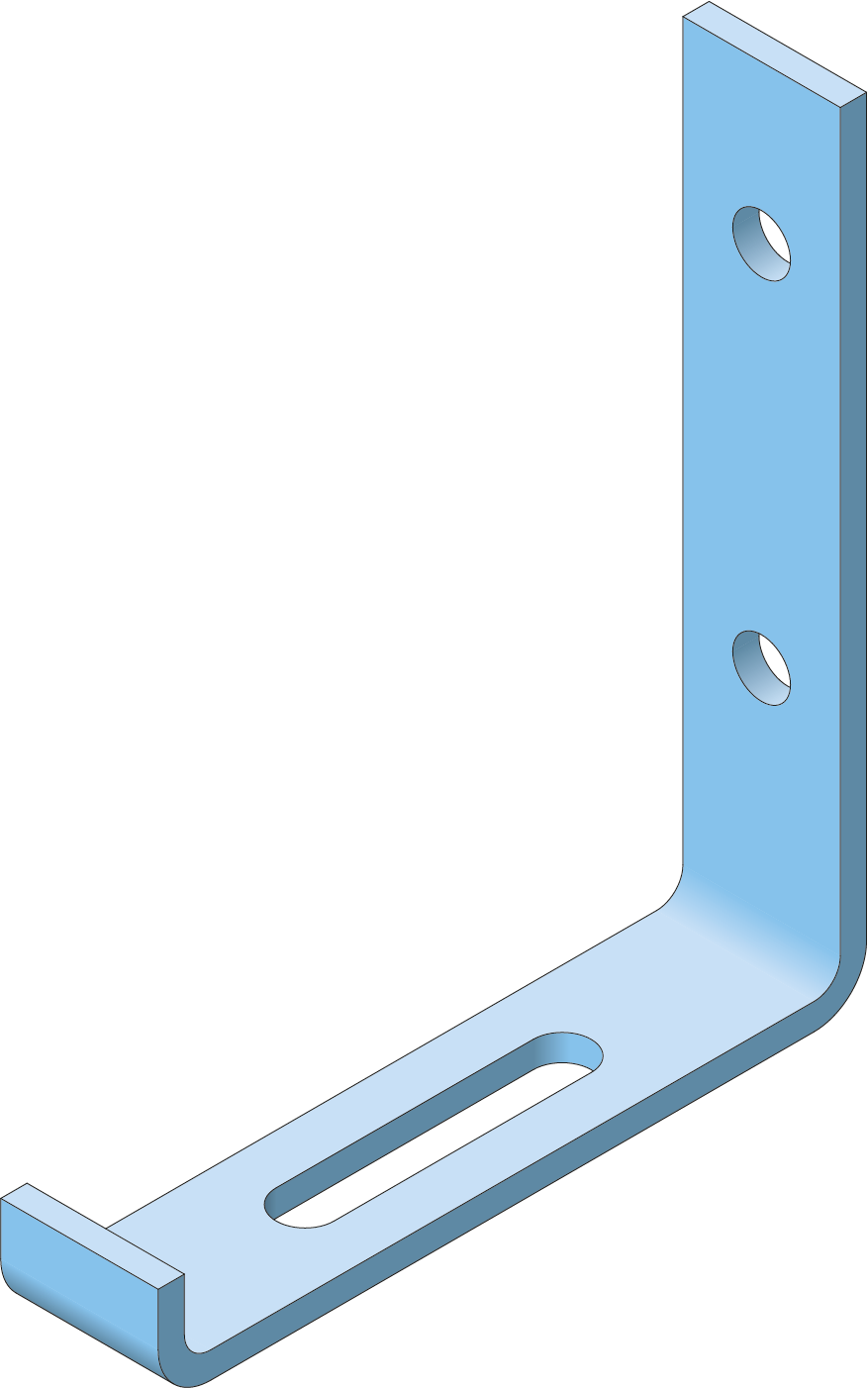

- Mounting brackets: Wall, ceiling, and suspension brackets compatible with ECT60
- Covers and fixings: Covers and corresponding fixing clips
These components ensure a safe, compatible, and maintenance-friendly installation.
Other lengths and widths available on request.
